1979 Kawasaki KZ750-B4 Meters/ignition Switch Diagram

← All diagrams

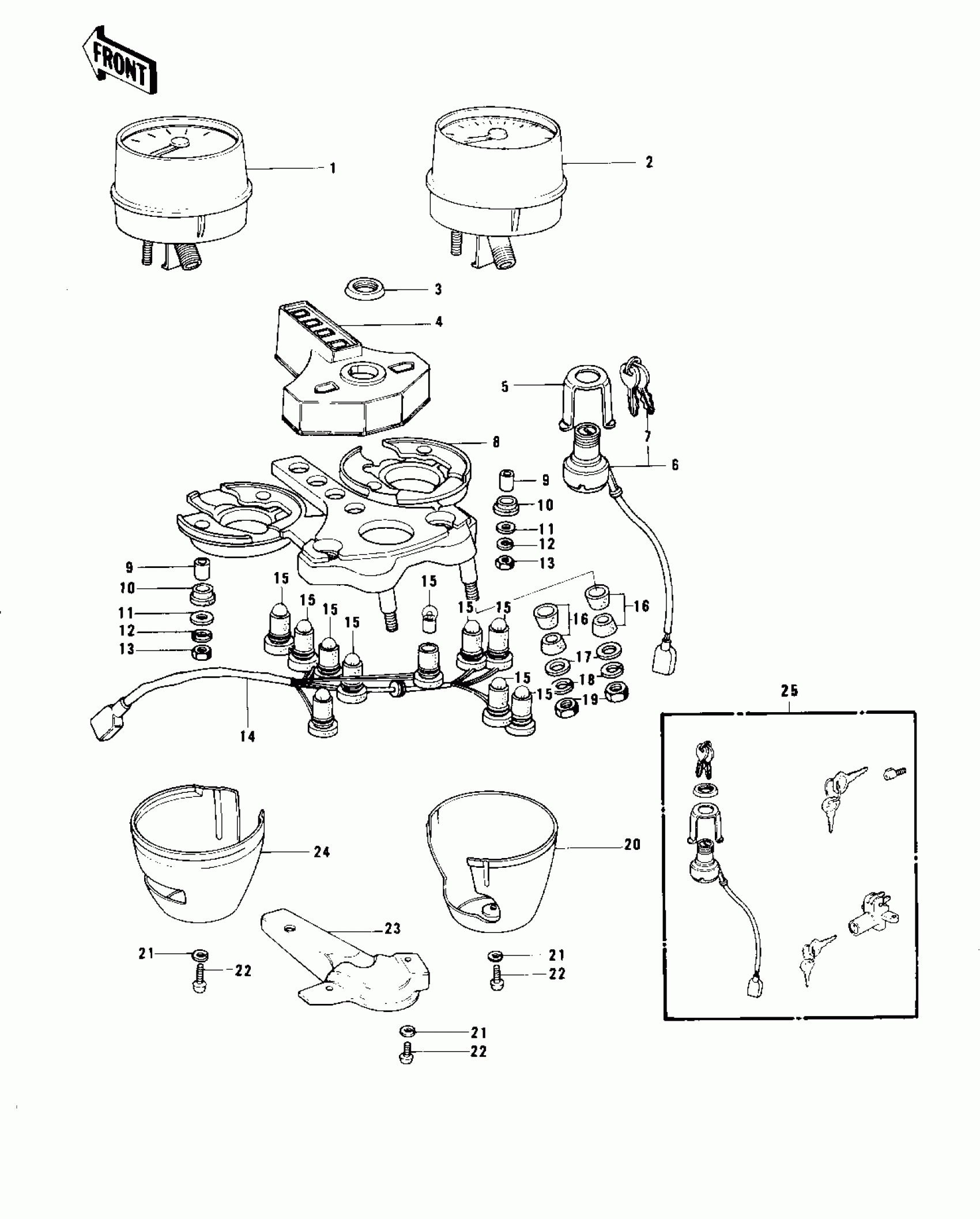

Find the part on the Meters/ignition Switch diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Kawasaki KZ750-B4 Meters/ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER,MPH

25006-052

1
Out of stock

1

SPEEDOMETER,MPH

25005-1037

1
Out of stock

1

SPEEDO ASSY,KPH (Canada)

25006-054

1
Out of stock

1

SPEEDOMETER ASSY,KPH (Canada)

25005-1013

1
Out of stock

2

TACHOMETER ASSY

25015-1008

1
Out of stock

2

TACHOMETER ASSY

25015-1008

1
Out of stock

3

NUT,IGNITION SW LOCK

27007-004

1
Out of stock

4

COVER,METER,INDICATE

25023-015

1
Out of stock

5

HOLDER IGNITION SW

27019-003

1
Out of stock

6

SWITCH,IGNITION

27005-083

1
Out of stock

6

SWITCH-ASSY,IGNITION

27005-5006

1
Out of stock

7

KEY SET,#801

27008-068-01

—
Out of stock

7

KEY SET,#845

27008-068-45

—
Out of stock

7

KEY,BLANK

27008-1014

—
Out of stock

7

KEY-LOCK,BLANK

27008-1103

—
Out of stock

8

BRACKET,METER

25008-045

1
Out of stock

9

COLLAR,METER

92027-211

1
Out of stock

10

RUBBER,METER

92075-172

1
Out of stock

11

WASHER,PLAIN,5MM

92022-241

1
Out of stock

12

WASHER SPRING 5MM

461F0500

1
Out of stock

13

NUT-HEX,5MM

312B0500

1
Out of stock

14

SOCKET,SPEEDOMETER

25011-049

1
Out of stock

15

BULB 12V 3W

92069-018

1
Out of stock

16

DAMPER RUBBER

92075-080

1
Out of stock

17

WASHER PLAIN 8MM

411B0800

1
Out of stock

18

WASHER SPRING 8MM

461F0800

1
Out of stock

19

NUT,8MM

311B0800

1
Out of stock

20

COVER,TACHOMETER

25012-011

1
Out of stock

21

WASHER SPRING 3MM

461F0300

1
Out of stock

22

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

23

COVER,METER BRACKET

25024-006

1
Out of stock

24

COVER,SPEEDOMETER

25012-010

1
Out of stock

25

LOCK SET,KZ750B4

27004-5029

—
Out of stock
