1979 Kawasaki KZ750-B4 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

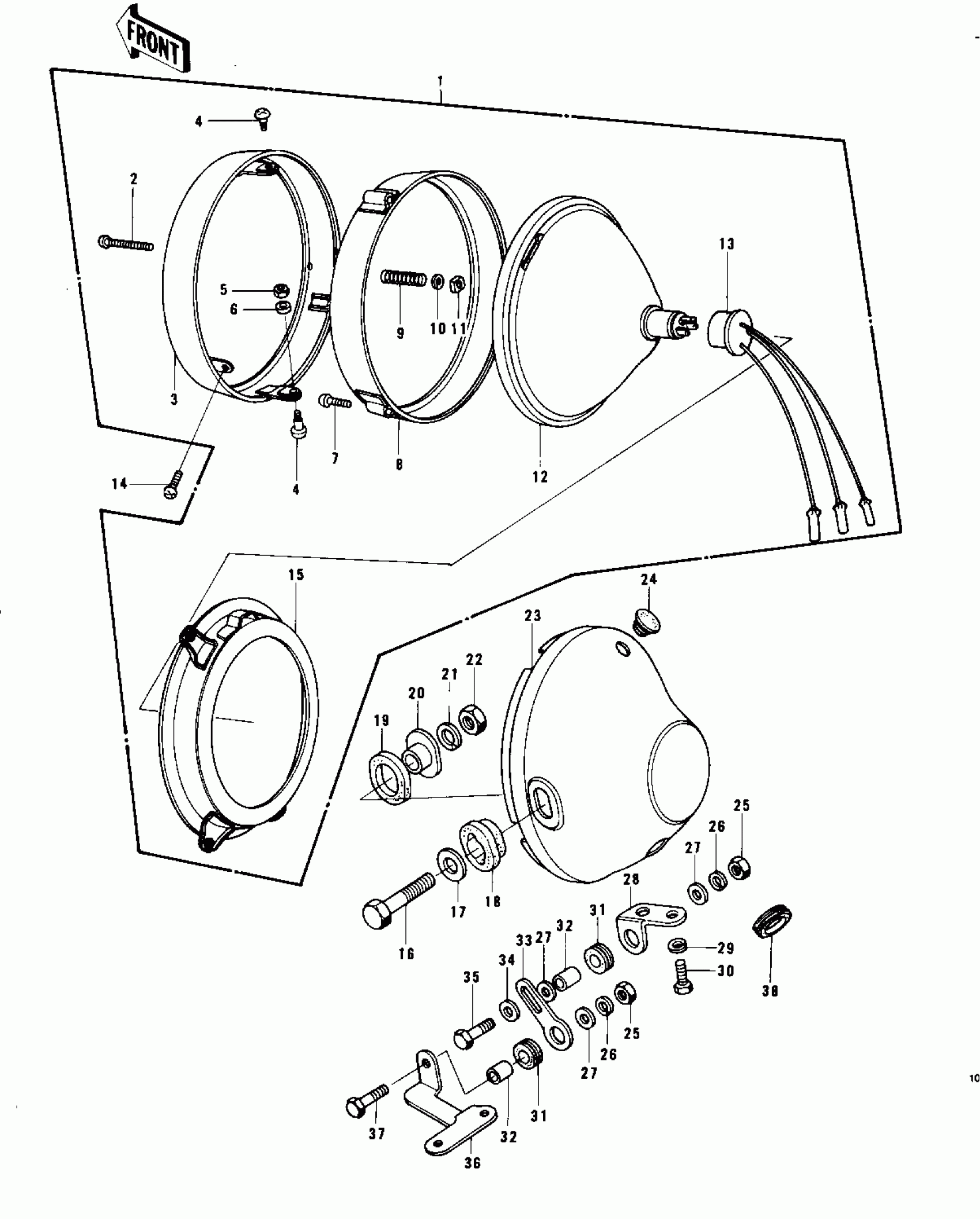

1979 Kawasaki KZ750-B4 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT,HEAD

23003-017

1
Out of stock

2

SCREW,FOCUS ADJUSTING

23019-021

1
Out of stock

3

RIM,HEAD LAMP

23006-038

1
Out of stock

4

SCREW,PAN HEAD,5X12

23019-023

1
Out of stock

5

NUT,5MM

23020-023

1
Out of stock

6

WASHER,PLAIN,5MM

23021-012

1
Out of stock

7

SCREW-PAN-CROS

220B0312

1
Out of stock

8

RING,HEAD LAMP MOUNT

23072-001

1
Out of stock

9

SPRING,FOCUS ADJUSTING

23014-005

1
Out of stock

10

WASHER,4.1X8X0.8

23021-004

1
Out of stock

11

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

12

SEALD BEAM UNIT

23007-041

1
Out of stock

13

SOCKET ASSY,HEAD LAMP

23008-037

1
Out of stock

14

SCREW,SPECIAL,5X14

23019-022

1
Out of stock

15

RING,HEAD LAMP MOUNT

23074-001

1
Out of stock

16

BOLT,10X35

92007-024

1
Out of stock

17

WASHER-PLAIN,10MM

411D1000

1
Out of stock

18

DAMPER RUBBER

23066-022

1
Out of stock

19

DAMPER RUBBER

23066-021

1
Out of stock

20

COLLAR,HEAD LIGHT

23052-011

1
Out of stock

21

WASHER SPRING 10MM

461F1000

1
Out of stock

22

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

23

BODY-COMP-HEAD LAMP

23005-1015-21

1
Out of stock

23

BODY-COMP-HEAD LAMP

23005-1015-21

1
Out of stock

24

PLUG REAR FENDER RUB

92074-006

1
Out of stock

25

NUT 6MM

311B0600

1
Out of stock

26

WASHER SPRING 6MM

461F0600

1
Out of stock

27

WASHER,6.5X22X1.6

92022-237

1
Out of stock

28

BRACKET,HEAD LIGHT

23064-021

1
Out of stock

29

WASHER SPRING 8MM

461F0800

1
Out of stock

30

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

31

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

32

COLLAR

92027-241

1
Out of stock

33

BRACKET,HEAD LIGHT

23064-022

1
Out of stock

34

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

35

BOLT-UPSET

112G0630

1
Out of stock

36

BRACKET,HEAD LIGHT

23064-023

1
Out of stock

37

BOLT-UPSET

112G0625

1
Out of stock

38

GROMMET

92071-1008

1
Out of stock
