1979 Kawasaki KZ750-B4 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

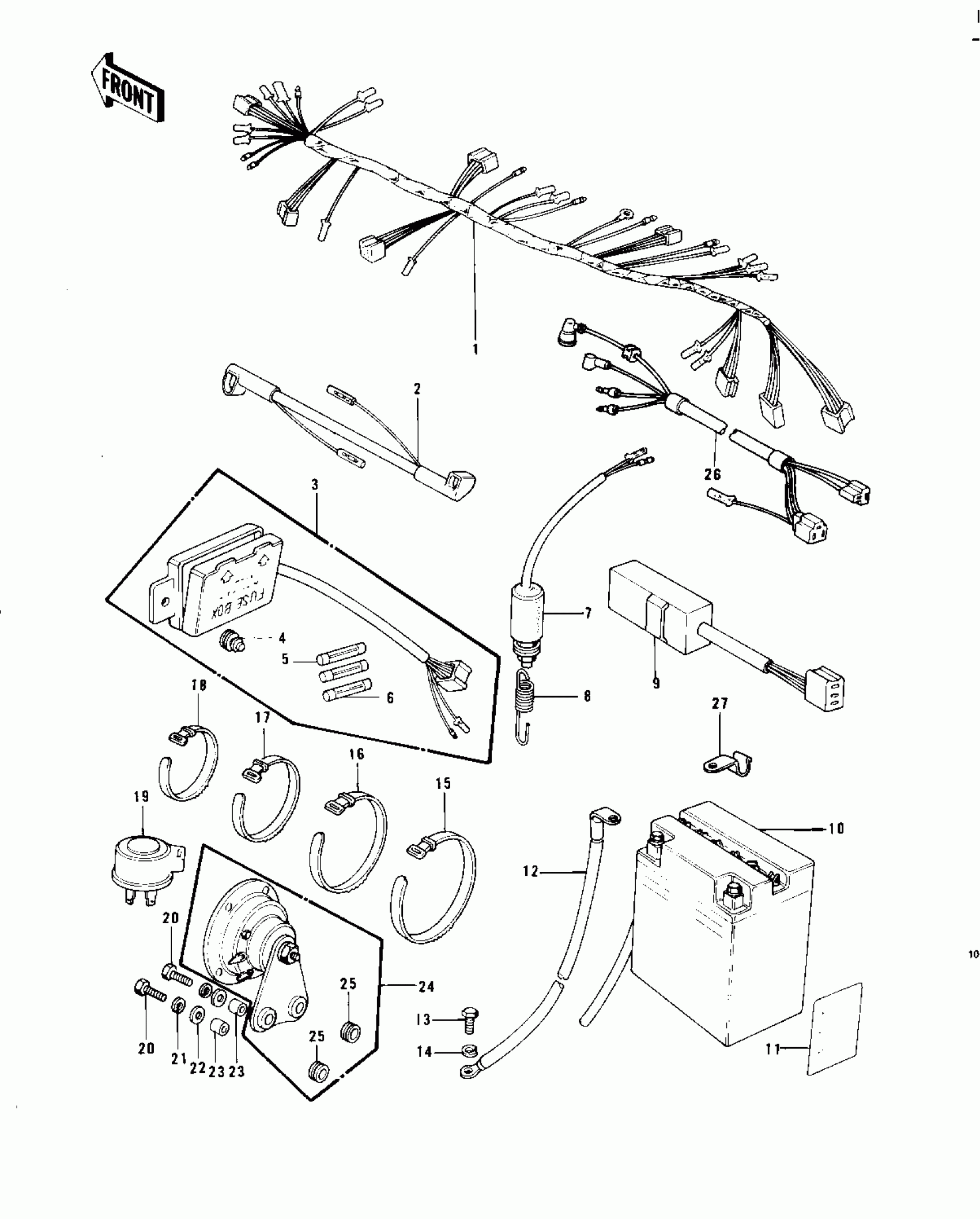

1979 Kawasaki KZ750-B4 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS,MAIN

26001-128

1
Out of stock

1

WIRING HARNESS.MAIN

26001-148

1
Out of stock

1

WIRING HARNESS,MAIN

26001-1023

1
Out of stock

1

WIRING HARNESS,MAIN

26001-1062

1
Out of stock

2

WIRE,LEAD

26010-040

1
Out of stock

2

WIRE-LEAD,BATTERY

26011-1145

1
Out of stock

3

FUSE-ASSY

26004-035

1
Out of stock

4

DAMPER,FUSE

92075-279

1
Out of stock

5

FUSE,20A,L=25

26006-005

1
Out of stock

6

FUSE,10A,L=25

26006-003

1
Out of stock

7

SWITCH-BRAKE LAMP

27010-015

1
Out of stock

8

SPRING,BRAKE LAMP SWITCH

27011-011

1
Out of stock

9

SWITCH,OUTAGE,INDICTR

28019-001

1
Out of stock

10

YUA BAT YB14L-A2

26012-1008

1
Out of stock

11

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock

12

WIRE,LEAD

26010-041

1
Out of stock

12

WIRE-LEAD,BATTERY

26011-1146

1
Out of stock

13

BOLT-UPSET,6X12

112G0612

1
Out of stock

14

WASHER SPRING 6MM

461F0600

1
Out of stock

15

BAND,L=218

92072-032

1
Out of stock

16

BAND,L=186

92072-056

1
Out of stock

16

BAND,L=186

92072-056

1
Out of stock

17

BAND,L=149

92072-031

1
Out of stock

18

BAND,L=123

92072-030

1
Out of stock

18

BAND,L=123

92072-030

1
Out of stock

19

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

20

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

20

BOLT HEX HEAD 8X28

114G0828

1
Out of stock

21

WASHER SPRING 8MM

461F0800

1
Out of stock

22

WASHER PLAIN 8MM

411B0800

1
Out of stock

23

COLLAR,HORN FITTING

92027-271

1
Out of stock

24

HORN

27003-074

1
Out of stock

25

DAMPER

92075-294

1
Out of stock

26

WIRING HARNESS

26001-1024

1
Out of stock

27

CLAMP

92037-1044

1
Out of stock
