1979 Kawasaki KZ750-B4 Ignition/regulator/rectifier Diagram

← All diagrams

Find the part on the Ignition/regulator/rectifier diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

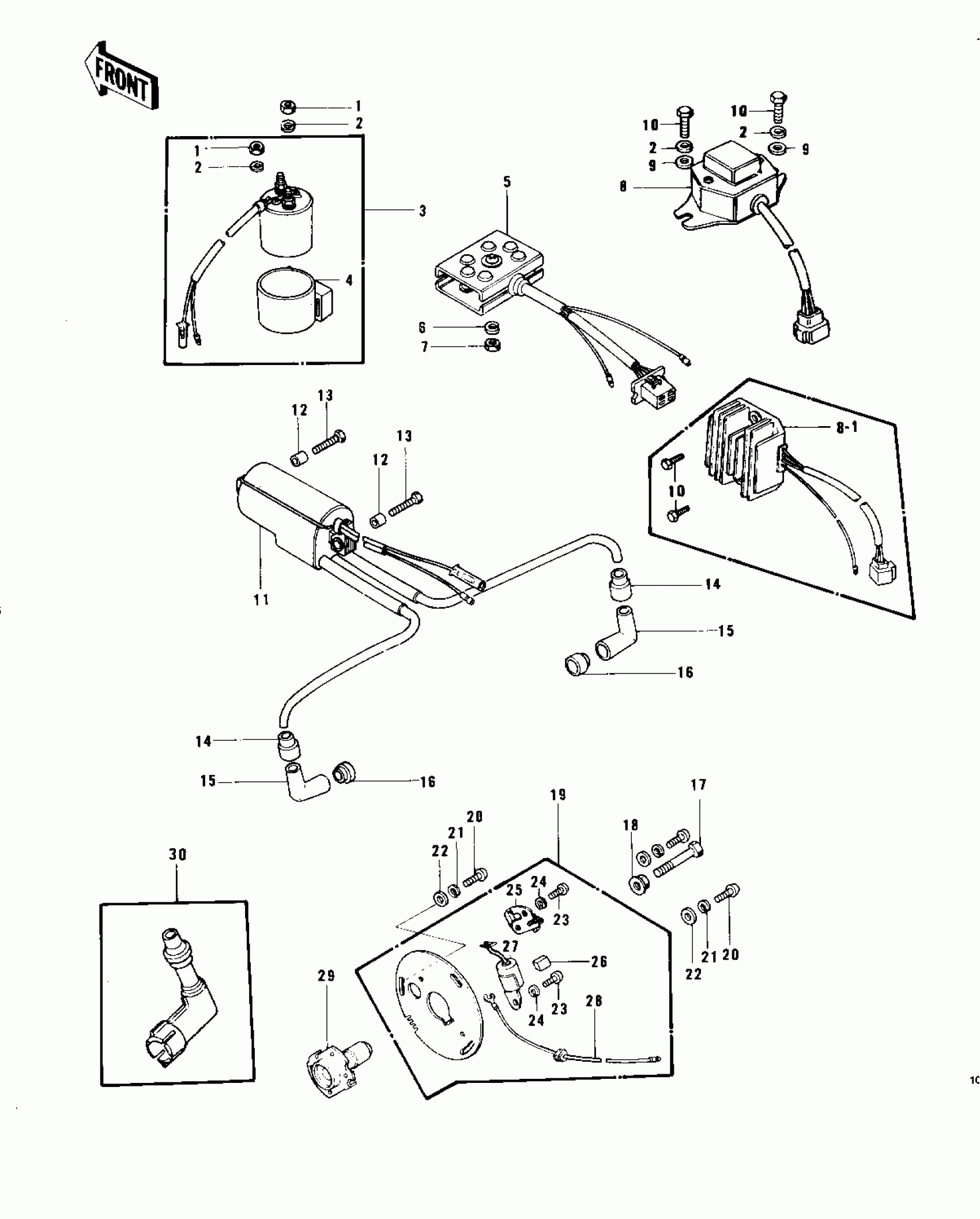

1979 Kawasaki KZ750-B4 Ignition/regulator/rectifier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT 6MM

312B0600

1
Out of stock

1

NUT,LOCK 6MM

92017-014

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

SWITCH ASSY,MAGNETIC

21164-005

1
Out of stock

4

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

5

RECTIFIER

21061-021

1
Out of stock

6

WASHER SPRING 6MM

461F0600

1
Out of stock

7

NUT 6MM

311B0600

1
Out of stock

8

REGULATOR

21066-027

1
Out of stock

8-1

REGULATOR

21066-029

1
Out of stock

9

WASHER PLAIN 6MM

411B0600

1
Out of stock

10

BOLT-UPSET,6X12

112G0612

1
Out of stock

10

BOLT-UPSET

112G0614

1
Out of stock

11

COIL-IGNITION

21121-1174

1
Out of stock

12

COLLAR,IGNITION COIL

92027-276

1
Out of stock

12

COLLAR,IGNITION COIL

92027-276

1
Out of stock

13

BOLT, IGNITION COIL

92003-170

1
Out of stock

14

GROMMET,HIGH TENSION

21132-005

1
Out of stock

15

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

16

GROMMET,PLUG CAP

21131-004

1
Out of stock

17

BOLT,8X63

92001-1397

1
Out of stock

18

WASHER,BREAKER GOVERNOR

92022-244

1
Out of stock

19

BREAKER ASSY,CONTACT

21008-1013

1
Out of stock

19

BREAKER ASSY,CONTACT

21008-1013

1
Out of stock

20

SCREW-PAN-CROS

220B0512

1
Out of stock

21

WASHER SPRING 5MM

461F0500

1
Out of stock

22

WASHER-PLAIN,5MM

411B0500

1
Out of stock

23

SCREW PAN HEAD 4X6

220B0406

1
Out of stock

24

WASHER SPRING 4MM

461F0400

1
Out of stock

25

BREAKER,CONTACT

21008-025

1
Out of stock

25

BREAKER,CONTACT

21008-027

1
Out of stock

26

BRUSH,OIL

21019-005

1
Out of stock

27

CONDENSER

21013-034

1
Out of stock

27

CONDENSER

21013-1002

1
Out of stock

28

WIRING HARNESS,BRAKE

26001-1040

1
Out of stock

28

WIRING HARNESS,BRAKE

26001-1040

1
Out of stock

29

ADVANCER,AUTO TIMING

21148-1004

1
Out of stock

29

ADVANCER,AUTO TIMING

21148-1004

1
Out of stock

30

CAP-ASSY-PLUG

21160-005

1
Out of stock
