1979 Kawasaki KZ750-B4 Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

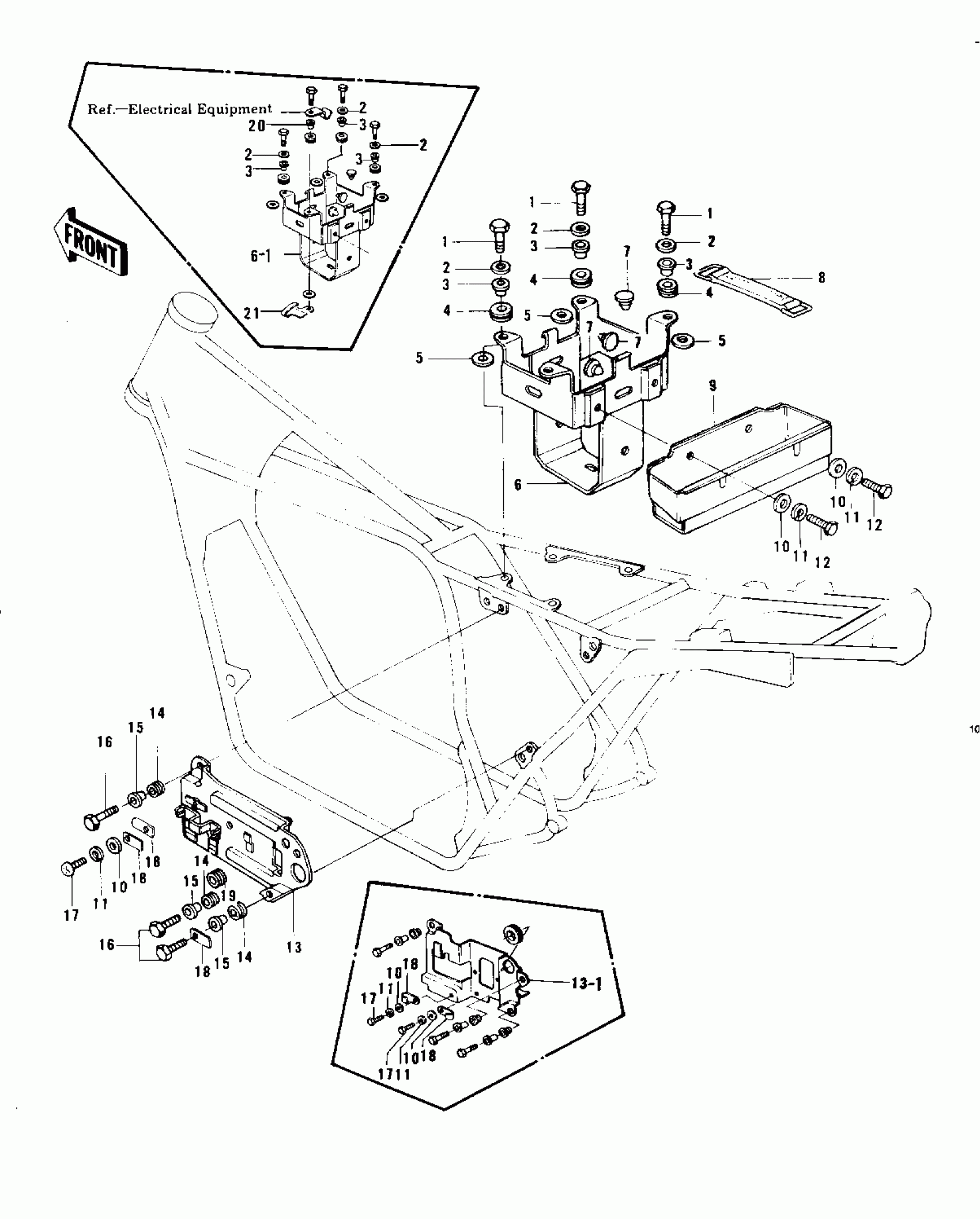

1979 Kawasaki KZ750-B4 Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-UPSET

112G0625

1
Out of stock

2

WASHER,6.5X20X1.6

92022-125

1
Out of stock

2

WASHER,6.5X20X1.6

92022-125

1
Out of stock

3

COLLAR

92027-268

1
Out of stock

3

COLLAR

92027-268

1
Out of stock

4

DAMPER

92075-277

1
Out of stock

5

DAMPER RUBBER

92075-166

1
Out of stock

6

CASE,BATTERY

32097-1006

1
Out of stock

6-1

CASE,BATTERY

32097-1006

1
Out of stock

7

DAMPER,RUBBER

92075-078

1
Out of stock

8

BAND,L=100

92072-071

1
Out of stock

9

CASE,TOOL

32098-026

1
Out of stock

10

WASHER PLAIN 6MM

411B0600

1
Out of stock

11

WASHER SPRING 6MM

461F0600

1
Out of stock

12

BOLT-UPSET,6X12

112G0612

1
Out of stock

13

BRACKET

32129-005

1
Out of stock

13-1

BRACKET,ELECTRO BASE

11034-1104

1
Out of stock

14

DAMPER

92075-277

1
Out of stock

15

COLLAR

92027-194

1
Out of stock

16

BOLT-UPSET,6X20

112G0620

1
Out of stock

17

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

17

BOLT-UPSET,6X12

112G0612

1
Out of stock

18

CLAMP

92037-113

1
Out of stock

19

GROMMET

92071-092

1
Out of stock

20

COLLAR

92027-194

1
Out of stock

21

HOOK,HELMET

27012-1009

1
Out of stock
