1979 Kawasaki KZ750-B4 Generator/starter Motor Diagram

← All diagrams

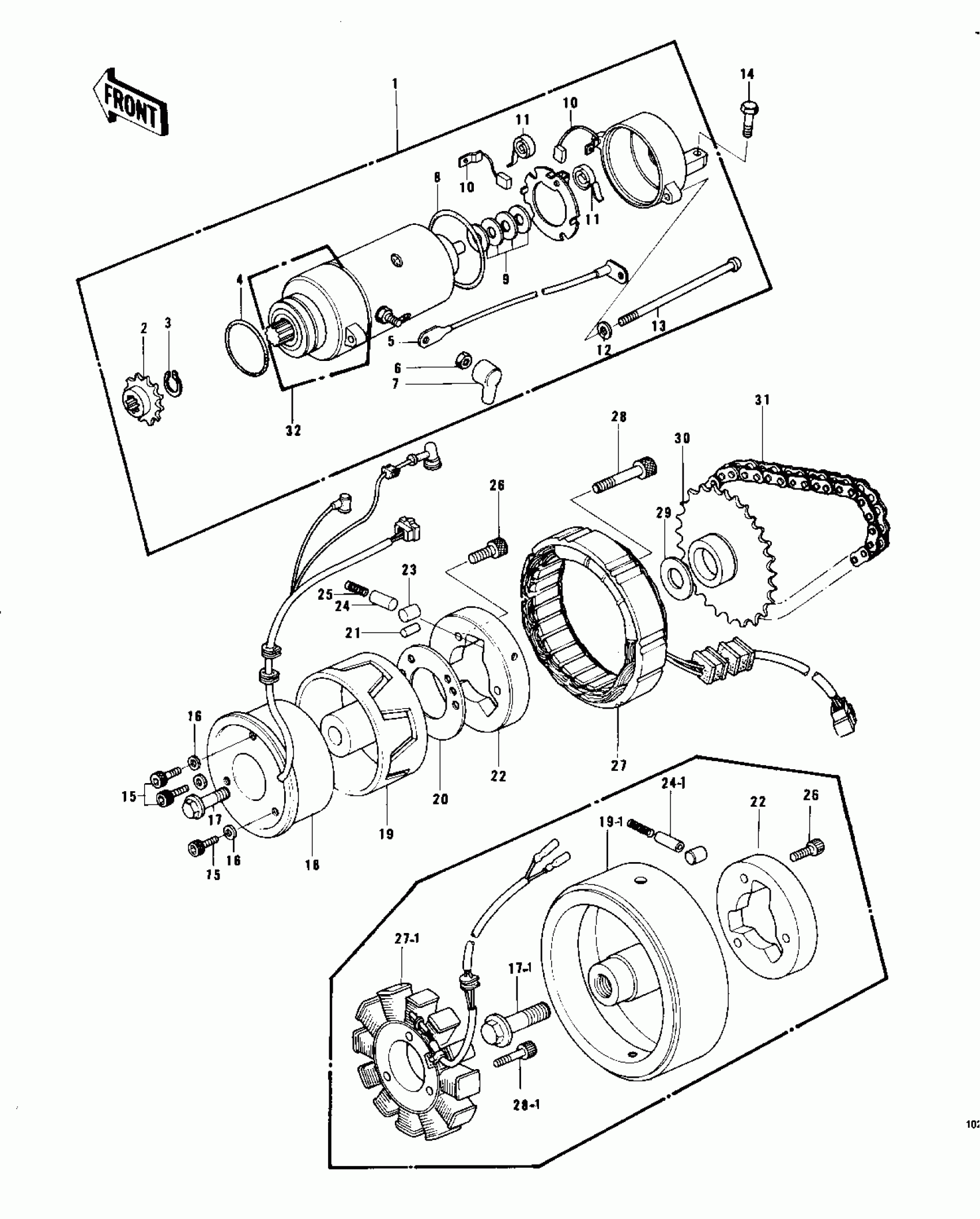

Find the part on the Generator/starter Motor diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Kawasaki KZ750-B4 Generator/starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ELECTRIC

21163-1020

1
Out of stock

2

SPROCKET,STARTER MOT

21053-003

1
Out of stock

3

RING-SNAP,17MM

92033-034

1
Out of stock

4

RING-O,40MM

21027-008

1
Out of stock

5

WIRE,STARTER MOTOR LD

26010-045

1
Out of stock

6

NUT 6MM

312B0600

1
Out of stock

7

CAP,STARTER MOTOR

21017-022

1
Out of stock

8

"0" RING,62MM

21027-006

1
Out of stock

9

WASHER,PLAIN,9MM

21025-007

1
Out of stock

10

BRUSH CARBON

21039-004

1
Out of stock

11

SPRING CARBON BRUSH

21040-004

1
Out of stock

12

WASHER SPRING 6MM

461F0600

1
Out of stock

13

SCREW,PAN HEAD,6X120

21099-005

1
Out of stock

14

BOLT,FLANGED,6X25

130G0625

1
Out of stock

15

BOLT-SOCKET,6X18

120P0618

1
Out of stock

16

GASKET

92065-096

1
Out of stock

17

BOLT,10X40

92002-1303

1
Out of stock

17-1

BOLT,FLANGED,12X40

92001-1012

1
Out of stock

18

COIL,FIELD

21077-003

1
Out of stock

19

ROTOR

21007-031

1
Out of stock

19-1

FLYWHEEL

21050-1004

1
Out of stock

20

PLATE,CLUTCH STARTER

92026-112

1
Out of stock

21

PIN,DOWEL,8X22

92042-044

1
Out of stock

22

CLUTCH ASSY,STARTER

13193-1001

1
Out of stock

22

CLUTCH ASSY,STARTER

13193-1001

1
Out of stock

23

ROLLER,15X13

92122-004

1
Out of stock

24

PIN

92043-129

1
Out of stock

24-1

PIN

92043-087

1
Out of stock

25

SPRING

92081-110

1
Out of stock

26

BOLT-SOCKET,8X16

120P0816

1
Out of stock

27

STATOR ASSY

21076-020

1
Out of stock

27-1

STATOR ASSY

21003-1006

1
Out of stock

28

UNAVAILABLE IN PRICE BOOK

120P0632

1
Out of stock

28-1

UNAVAILABLE IN PRICE BOOK

120Q0628

1
Out of stock

29

SPACER,STARTER

92026-110

1
Out of stock

29

SPACER

92026-1013

1
Out of stock

30

GEAR,STARTER CLUTCH

21170-003

1
Out of stock

31

CHAIN,DYNAMO

21070-010

1
Out of stock

32

COVER ASSY,STARTER MT

16146-1008

1
Out of stock
