1984 Kawasaki KZ700-A1 Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

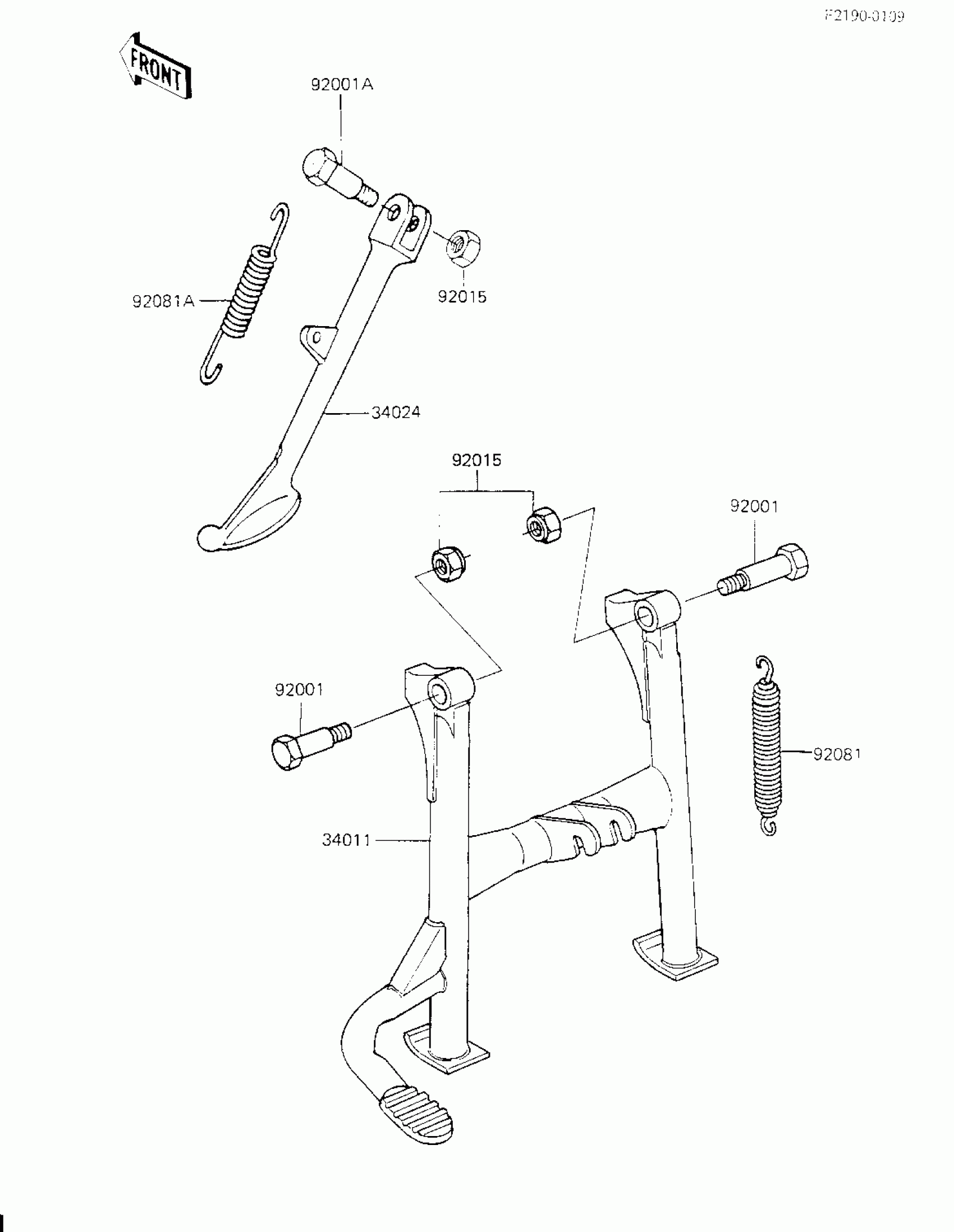

1984 Kawasaki KZ700-A1 Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1117

1

$180.51

In stock

34024

STAND-SIDE

34024-1096

1

$108.90

In stock

92001

BOLT,CENTER STAND

92001-1214

1

$9.12

In stock

92001A

1

$12.47

In stock

92015

NUT,SPRING ADJUST

92015-1186

1
Out of stock

92081

SPRING,CNT STAND

34023-012

1
Out of stock

92081A

SPRING,SIDE STAND

92081-1727

1

$10.19

In stock
