1984 Kawasaki KZ700-A1 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

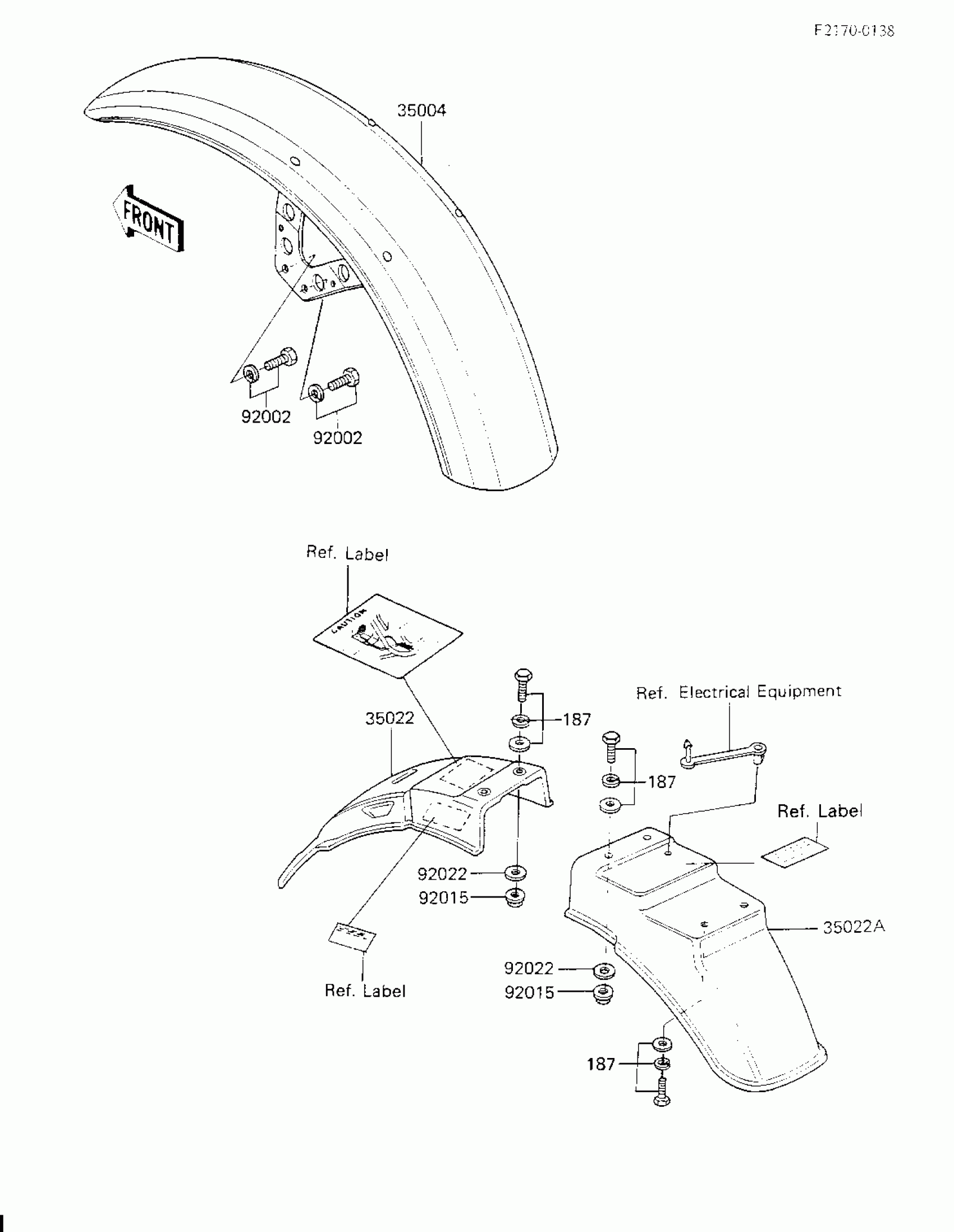

1984 Kawasaki KZ700-A1 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,EBONY

35004-1083-H8

1
Out of stock

35022

FENDER-RR

35022-1046

1
Out of stock

35022A

FENDER-RR,BLACK

35022-1047-6Z

1
Out of stock

92002

BOLT,FLANGED,8X16

92002-1200

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

187

BOLT-UPSET-WSP,6X16

187D0616

1
Out of stock
← Turn Signals Footrests →
