1984 Kawasaki KZ700-A1 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

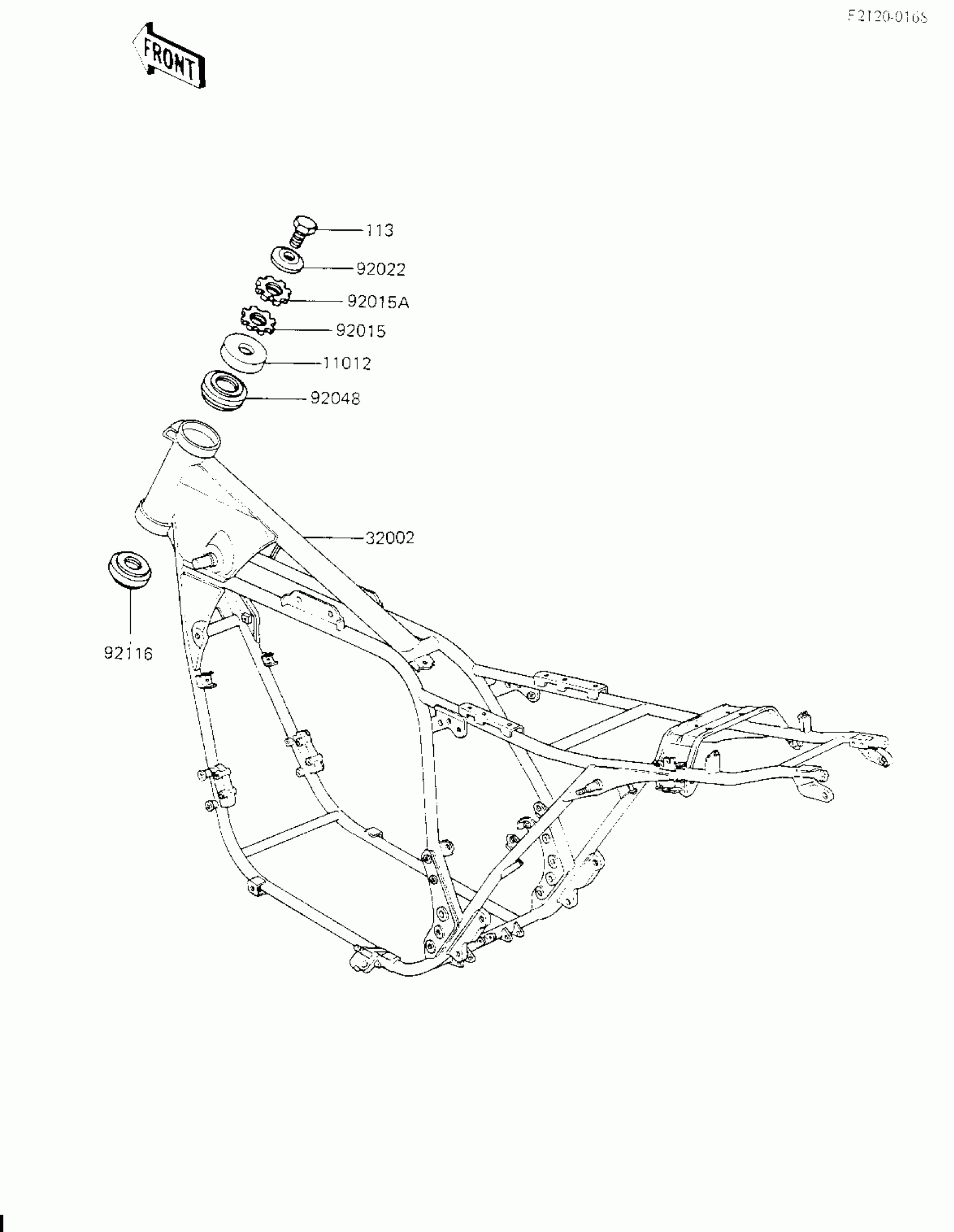

1984 Kawasaki KZ700-A1 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-017

1

$5.37

In stock

32002

FRAME-COMP

32002-1742

1

$1,285.76

In stock

92015

NUT,25MM,T=10

92015-1377

1

$25.61

In stock

92015A

NUT,25MM,T=6

92015-1378

1

$19.42

In stock

92022

WASHER

92022-1229

1

$11.03

In stock

92048

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92116

1

$33.21

In stock

113

BOLT-SMALL-FINE,14X25

113G1425

1
Out of stock
