1984 Kawasaki KZ700-A1 Frame Fittings Diagram

← All diagrams

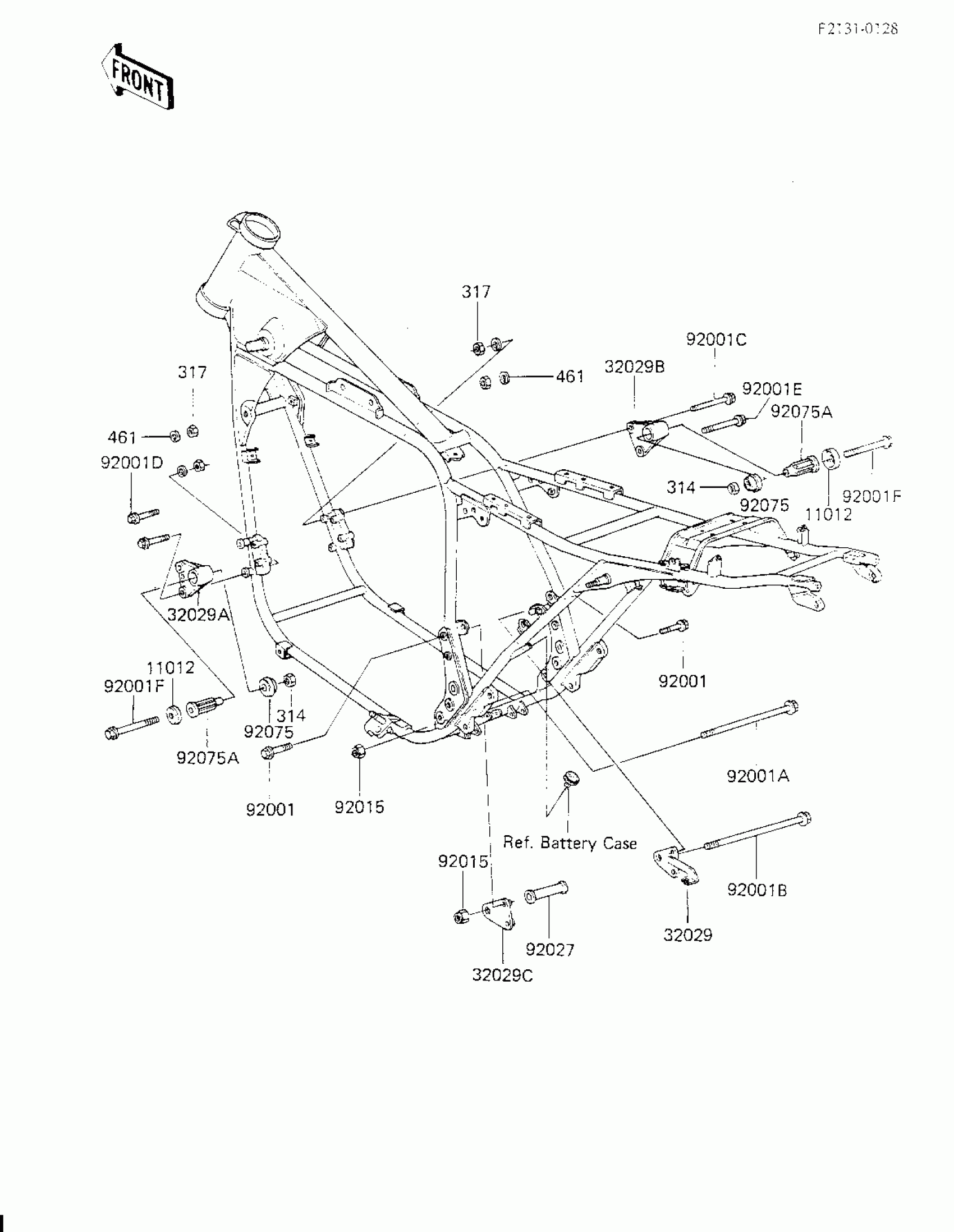

Find the part on the Frame Fittings diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KZ700-A1 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

32029

PLATE,ENG.MOUNT,R.H.

32029-1129

1
Out of stock

32029A

BRACKET-ENGINE,FR,LH

32029-1192

1
Out of stock

32029B

BRACKET-ENGINE,FR,RH

32029-1193

1
Out of stock

32029C

PLATE,RR ENG MONT,L.

32030-064

1
Out of stock

92001

BOLT,FLANGED,8X40,BLACK

92001-1612

1
Out of stock

92001A

BOLT,FLANGED,10X225,BLACK

92001-1622

1
Out of stock

92001B

BOLT,FLANGED,10X250

92001-1623

1
Out of stock

92001C

BOLT,FLANGED,8X80,BLA

92001-1640

1
Out of stock

92001D

BOLT,FLANGED,8X55,BLACK

92001-1641

1
Out of stock

92001E

BOLT,FLANGED,8X75,BLA

92001-1642

1
Out of stock

92001F

BOLT,FLANGED,10X105,BLACK

92001-1751

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92027

COLLAR,L=54,BLACK

92027-1425

1
Out of stock

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock

314

NUT-HEX-FINE,10MM,BLACK

314C1000

1
Out of stock

317

NUT-HEX-SMALL,8MM,BLACK

317C0800

1
Out of stock

461

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock
