1984 Kawasaki KZ700-A1 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

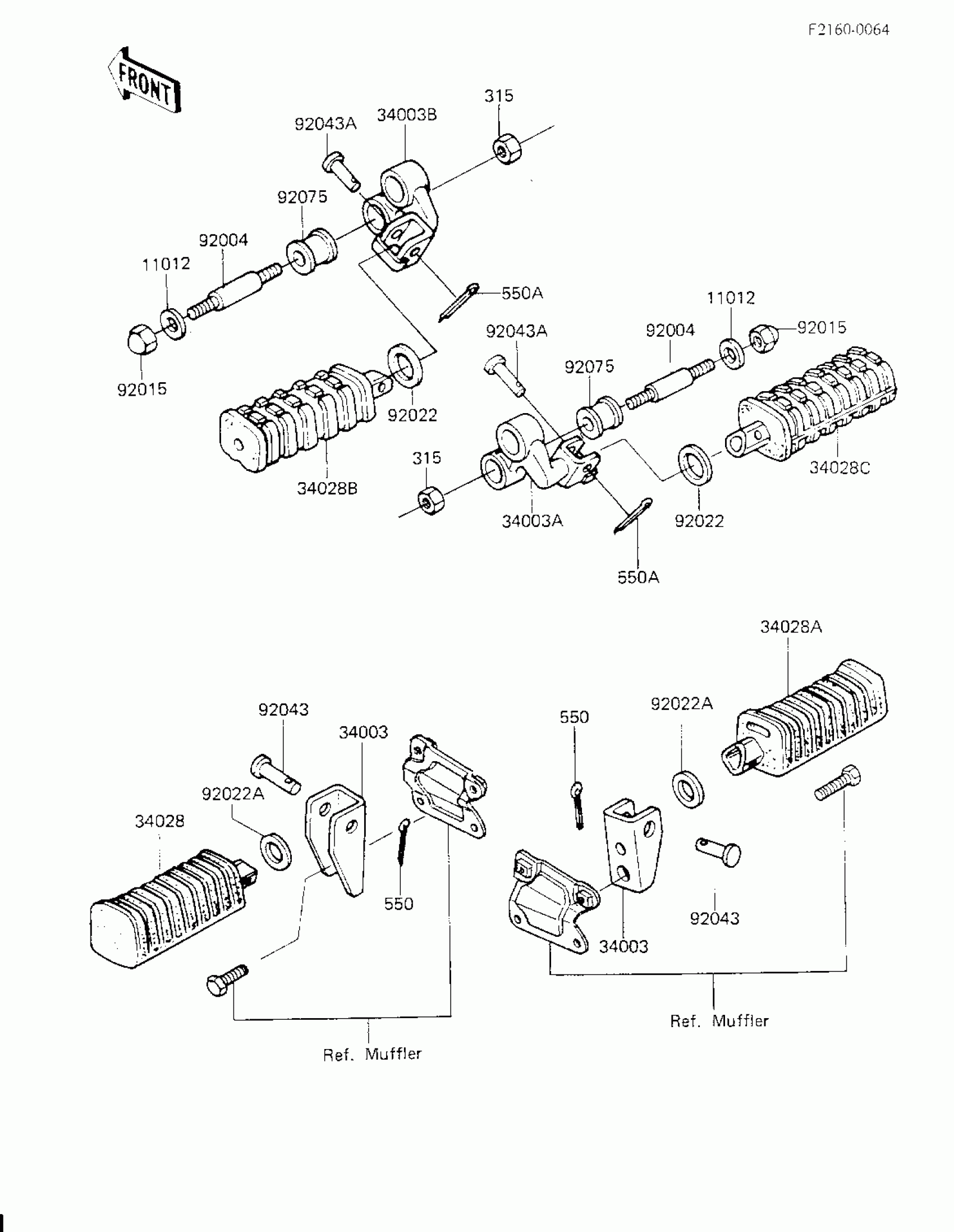

1984 Kawasaki KZ700-A1 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEP,BLACK

11012-1246

1
Out of stock

34003

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-1065

1

$146.23

In stock

34003B

HOLDER-STEP,FR,LH

34003-1066

1

$149.96

In stock

34028

STEP,RR,LH,BLACK

34028-1041

1
Out of stock

34028A

STEP,RR,RH,BLACK

34028-1042

1
Out of stock

34028B

STEP,FR,LH

34028-1136

1
Out of stock

34028C

STEP,FR,RH

34028-1137

1
Out of stock

92004

STUD,FOOTREST BAR FI

92004-048

1
Out of stock

92015

NUT,CAP,LOCK,8MM,BLACK

92015-1209

1
Out of stock

92022

WASHER,STEP FITTING

92022-1314

1

$4.16

In stock

92022A

WASHER,22.5X30X2.6,B

92022-1320

1
Out of stock

92043

PIN,6X28

92043-1464

1

$6.44

In stock

92043A

PIN,8X35.5

92043-115

1

$9.22

In stock

92075

DAMPER RUBBER,FOOTRE

92075-293

1
Out of stock

315

NUT-HEX-FINE,10MM,BLACK

315C1000

1
Out of stock

550

1

$1.03

In stock

550A

1

$0.51

In stock
