1984 Kawasaki KZ700-A1 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

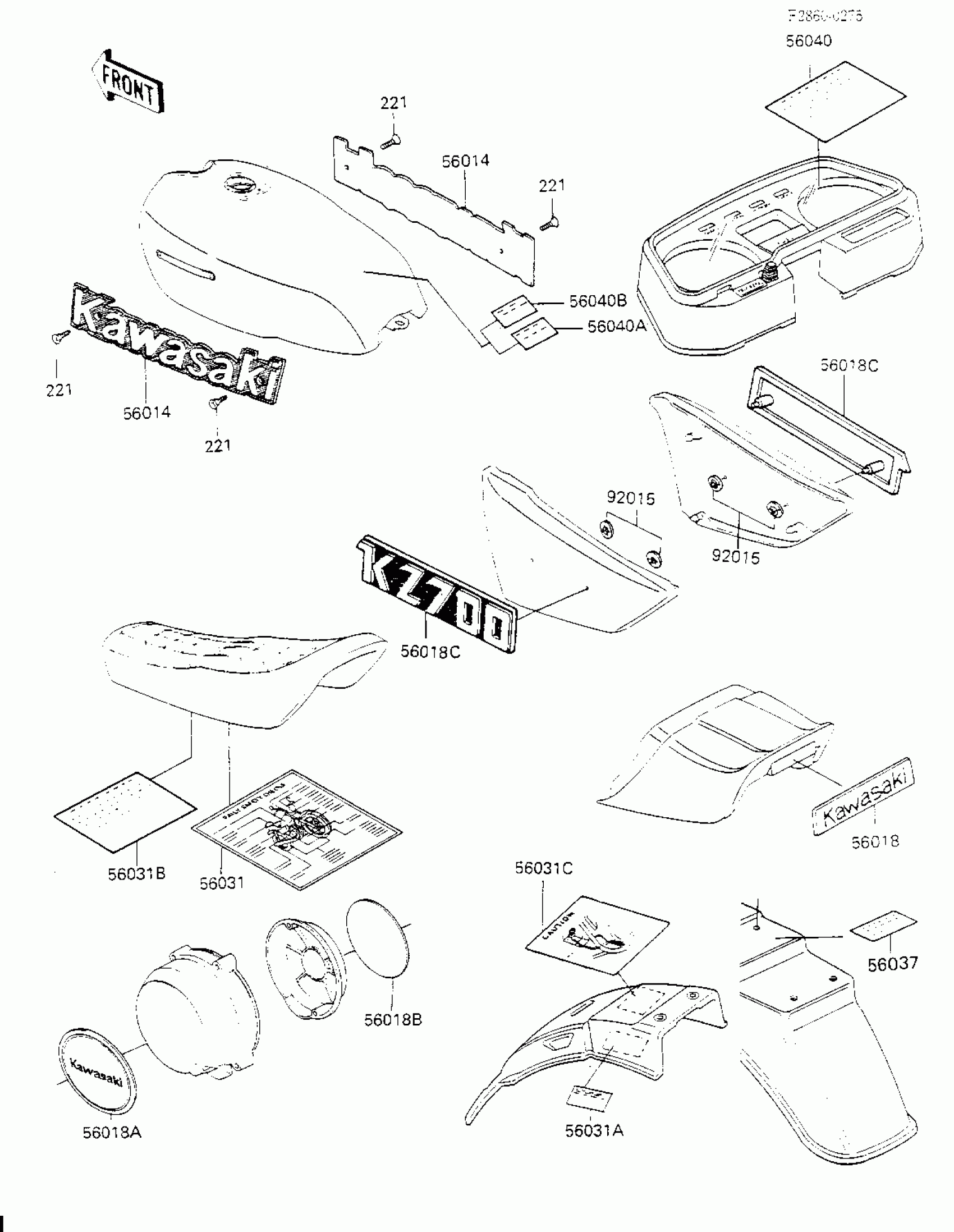

1984 Kawasaki KZ700-A1 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56014

EMBLEM,FUEL TANK,KAW

56014-1063

1
Out of stock

56018A

MARK,GENERATOR COVER

56018-1430

1
Out of stock

56018B

MARK,PULSING COIL COV

56018-1432

1
Out of stock

56018C

MARK,SIDE COVER

56018-1493

1
Out of stock

56031

LABEL,DAILY SAFETY

56031-1043

1
Out of stock

56031A

LABEL,CHAIN

56031-1123

1
Out of stock

56031B

LABEL-MANUAL,OIL & OIL FILTER

56031-1124

1
Out of stock

56031C

LABEL,BATTERY VENT

56031-1199

1
Out of stock

56037

LABEL,TIRE & LOAD

56037-1191

1

$2.68

In stock

56040

1

$5.32

In stock

56040A

LABEL-WARNING,AIR INTAKE

56040-1014

1
Out of stock

56040B

LABEL-WARNING,EVAPO

56040-1121

1

$4.83

In stock

92015

NUT,PUSH,3MM

92018-005

1

$2.25

In stock

221

SCREW-CSK-CROS

221C0306

1

$0.78

In stock
