1982 Kawasaki KZ440-G1 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1982 Kawasaki KZ440-G1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

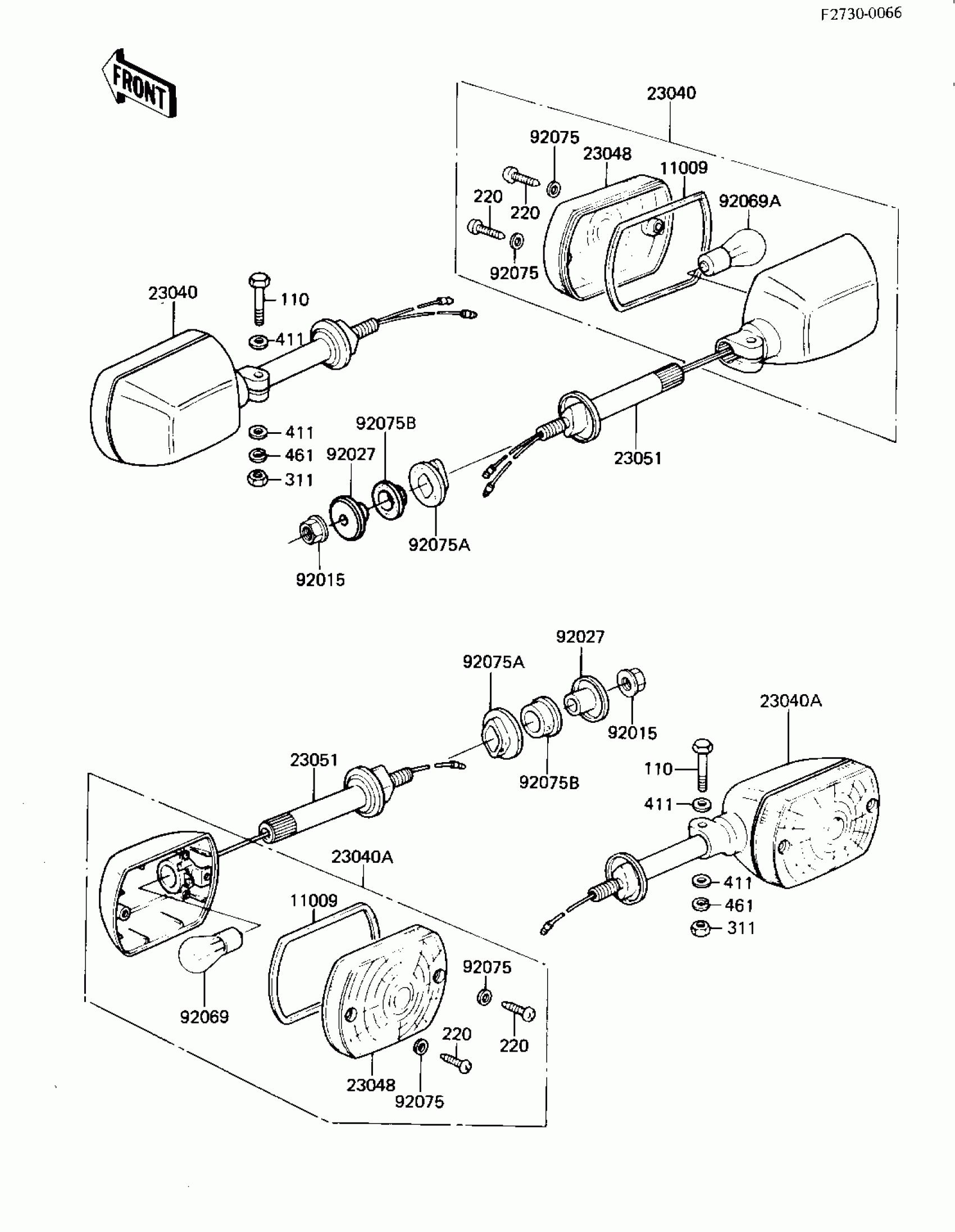

1982 Kawasaki KZ440-G1 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TURN SIGNAL

11009-1052

1
Out of stock

23040

LAMP ASSY,TURN SIGNAL

23040-1017

1
Out of stock

23040A

1

$152.42

In stock

23048

LENS-SIGNAL LAMP

23048-1022

1

$11.00

In stock

23051

BRACKET-SIGNAL LAMP

23051-1014

1

$39.78

In stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92027

COLLAR

92027-147

1

$12.02

In stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92069A

1

$7.70

In stock

92075

WASHER,PLAIN,4MM

23058-002

1

$2.05

In stock

92075A

DAMPER,LAMP

92075-128

1

$4.64

In stock

92075B

1

$4.34

In stock

110

BOLT-UPSET

112G0630

1
Out of stock

220

SCREW-PAN-CROS

220E0412

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
