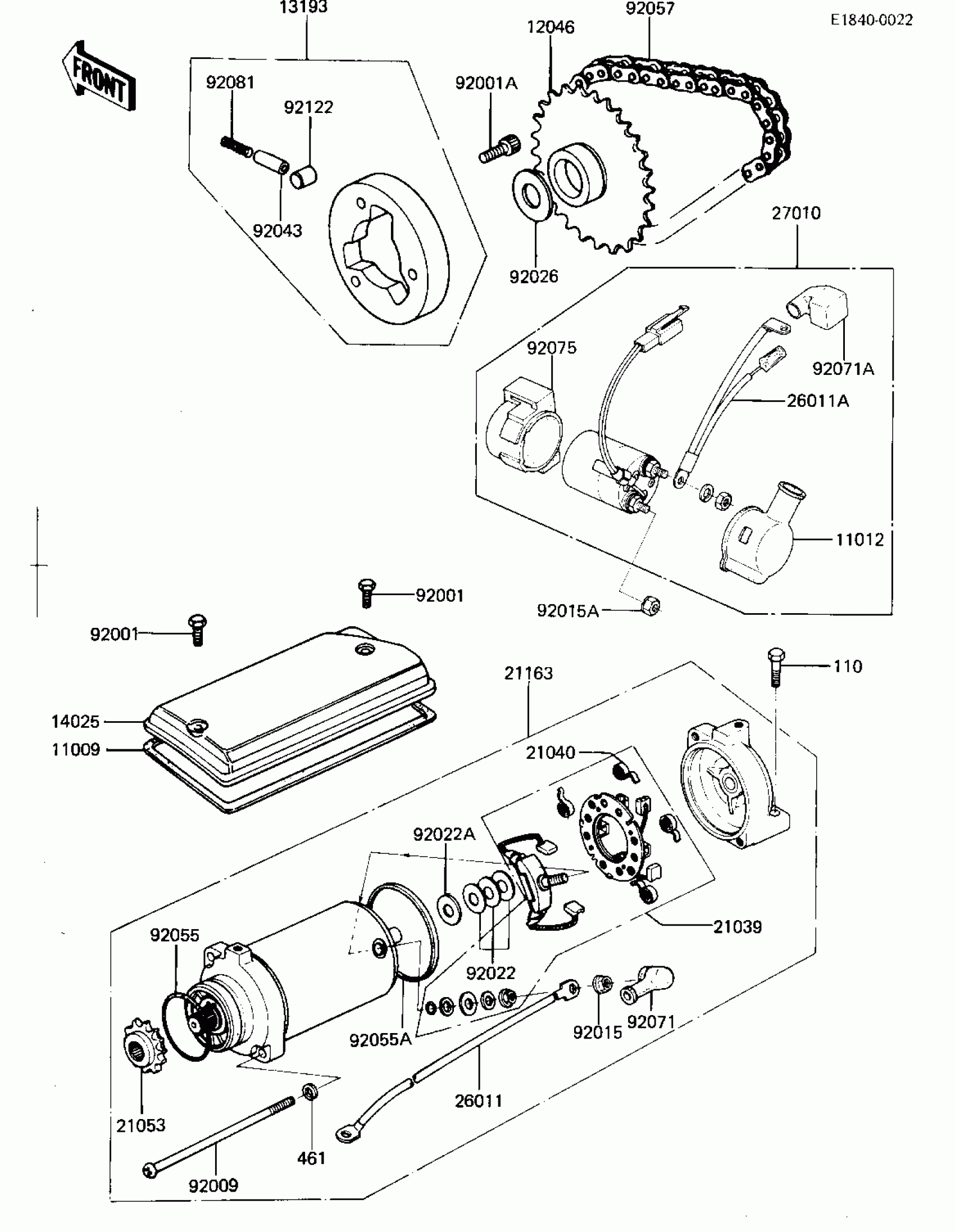

Kawasaki KZ440-G1 STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

11009

GASKET,STARTER COVER

11009-1006

Unavailable

11012

CAP,MAGNETIC SWITCH

21141-004

Unavailable

12046

SPROCKET,ONWAY CLUTCH

12046-1030

Unavailable

13193

CLUTCH ASSY,STARTER

13193-1001

Unavailable

14025

COVER,STARTER

14025-1284

Unavailable

21039

BRUSH SET,CARBON

21039-1005

Unavailable

21040

SPRING,CARBON BRUSH

21040-1002

$10.73

21053

SPROCKET-ASSY

21053-002

Unavailable

21163

MOTOR ASSY,STARTER

21163-1011

Unavailable

26011

WIRE STRTER MOT LEAD

26010-035

$46.52

26011A

WIRE LEAD MAG SWITCH

26011-1107

$28.95

27010

SWITCH,MAGNETIC

27010-1068

$189.76

92001

BOLT,6X10

92001-1151

$4.42

92001A

BOLT-SOCKET,8X16

120P0816

Unavailable

92009

SCREW,PAN HEAD,6X119

92009-1097

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK 6MM

92017-014

$5.74

92022

WASHER,9.1X18X0.2

21025-011

$4.67

92022A

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,25X40X1

92026-1004

Unavailable

92043

PIN

92043-087

$9.70

92055

RING-O,42.8MM

21027-005

Unavailable

92055A

RING-O,64MM

92055-1086

$9.68

92057

CHAIN,DYNAMO

92057-1009

$50.46

92071

CAP,STARTING MOTOR

21017-020

$7.85

92071A

CAP,MAG SWTCH TERMNL

21017-021

$12.27

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING

92081-110

$3.63

92122

ROLLER,15X13

92122-004

$8.42

110

BOLT-UPSET

112G0625

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
