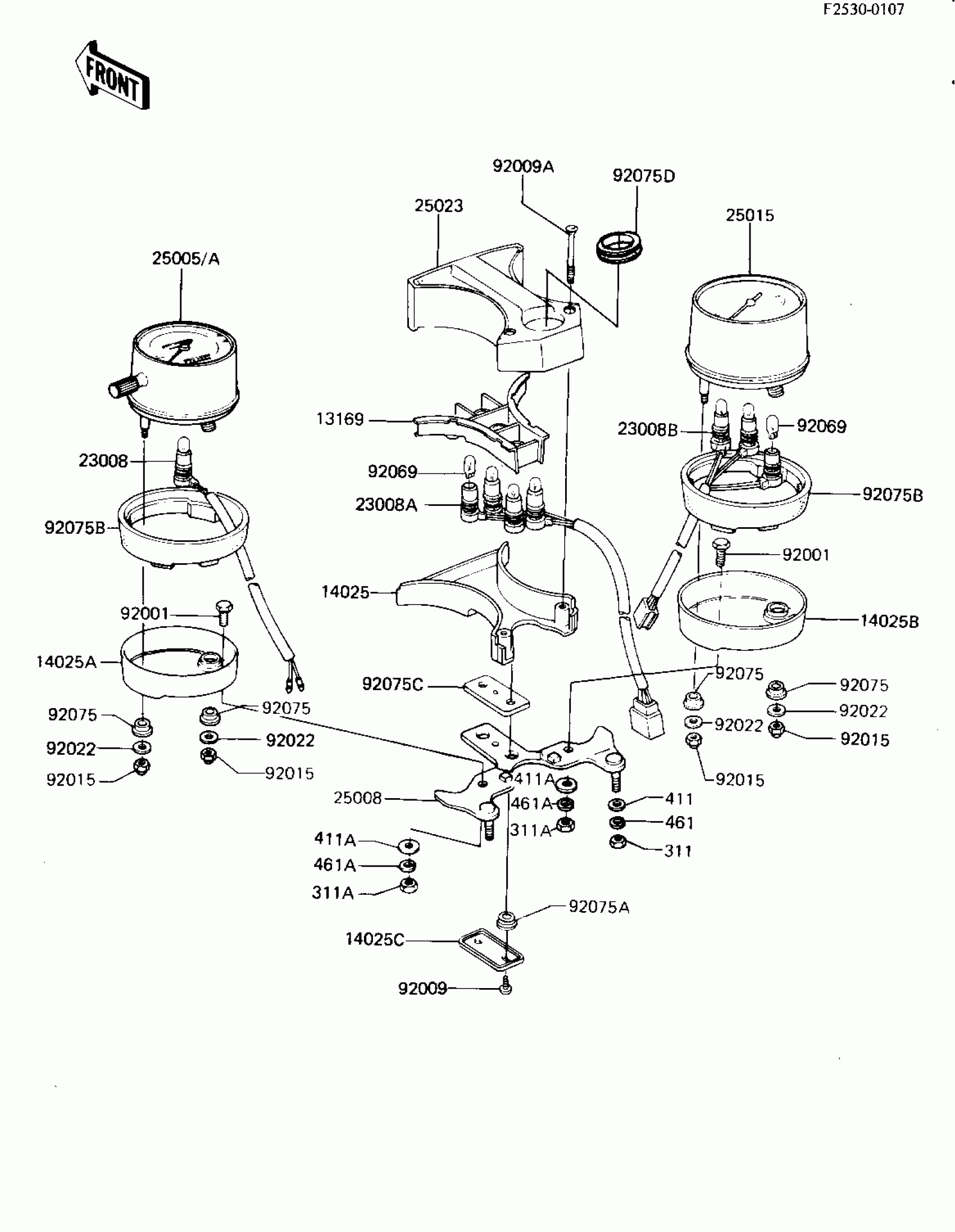

Kawasaki KZ440-G1 METERS Diagram

#

Description
Price

13169

PLATE,SOCKET

13169-1133

Unavailable

14025

COVER,PILOT BOX,LWR

14025-1093

Unavailable

14025A

COVER,SPEEDOMETER

14025-1094

Unavailable

14025B

COVER,TACHOMETER

14025-1095

Unavailable

14025C

COVER,PILOT BOX,DAMPER

14025-1096

Unavailable

23008

SOCKET-ASSY

23008-1116

$13.58

23008A

SOCKET-ASSY,PILOT BOX

23008-1119

$43.23

23008B

SOCKET-ASSY,TACHOMETE

23008-1121

$34.61

25005

SPEEDOMETER,KPH (Canada)

25005-1053

$424.12

25005A

SPEEDOMETER,MPH

25005-1165

$429.53

25008

BRACKET-METER

25008-1021

$62.23

25015

TACHOMETER,X1000R/MIN

25015-1068

$415.95

25023

COVER,PILOT BOX,UPP

25023-1008

Unavailable

92001

BOLT,8X16

92001-1154

$2.42

92009

SCREW,TAPPING,4X10

92009-1040

$3.25

92009A

SCREW-CSK-RD-CROS,4X45

222C0445

Unavailable

92015

NUT-CAP

322C0500

Unavailable

92022

WASHER,5.2X16X1.2

25009-004

$2.88

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92075

DAMPER,METER

25019-013

$4.33

92075A

DAMPER,METER

25019-023

$3.28

92075B

DAMPER,METER

92075-1498

Unavailable

92075C

DAMPER,PILOT BOX

92075-1136

$5.49

92075D

DAMPER,PILOT BOX

92075-1204

Unavailable

311

NUT 6MM

311B0600

Unavailable

311A

NUT,8MM

311B0800

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

411A

WASHER PLAIN 8MM

411B0800

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
