1982 Kawasaki KZ440-G1 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1982 Kawasaki KZ440-G1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

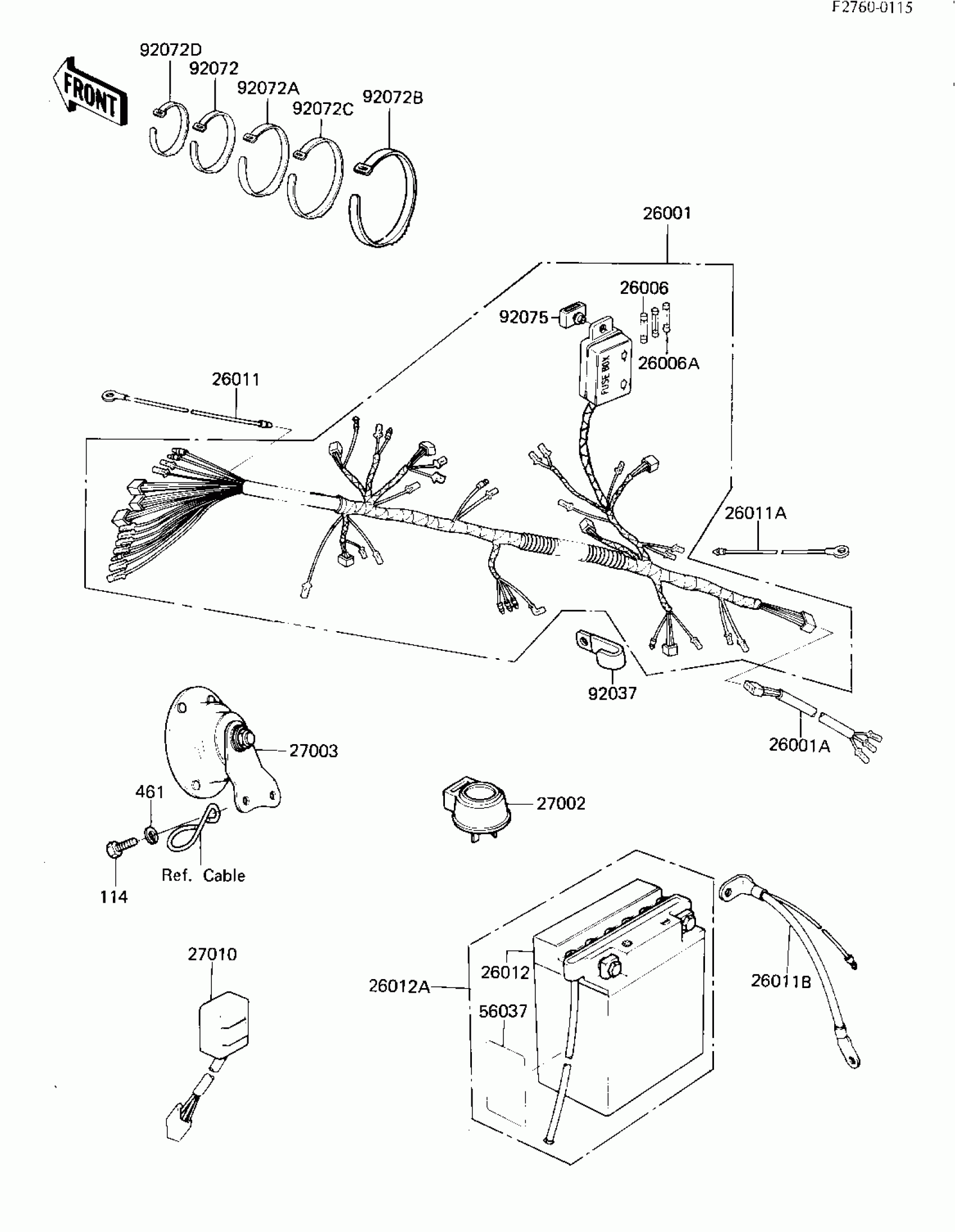

1982 Kawasaki KZ440-G1 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

HARNESS,MAIN,W/FUSE

26001-1365

1
Out of stock

26001A

WIRING HARNESS,TL LMP

26002-046

1
Out of stock

26006

FUSE,10A,L=25

26006-003

1
Out of stock

26006A

FUSE,20A,L=25

26006-005

1
Out of stock

26011

LEAD WIRE,SIGNAL LAMP

26011-063

1
Out of stock

26011A

WIRE-LEAD,L=285

26011-095

1
Out of stock

26011B

WIRE-LEAD,BATTERY GRO

26011-1134

1
Out of stock

26012

26012-1210 (Canada)

26012-1060

1
Out of stock

26012A

YUA BAT YB12A-A

26012-1061

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

27003

HORN

27003-1019

1
Out of stock

27010

SWITCH,BK LIGHT IND

28019-002

1
Out of stock

56037

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=149

92072-031

1
Out of stock

92072B

BAND,L=218

92072-032

1
Out of stock

92072C

BAND,L=186

92072-056

1
Out of stock

92072D

BAND,L=95

92072-067

1
Out of stock

92075

DAMPER,FUSE

92075-279

1
Out of stock

114

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
