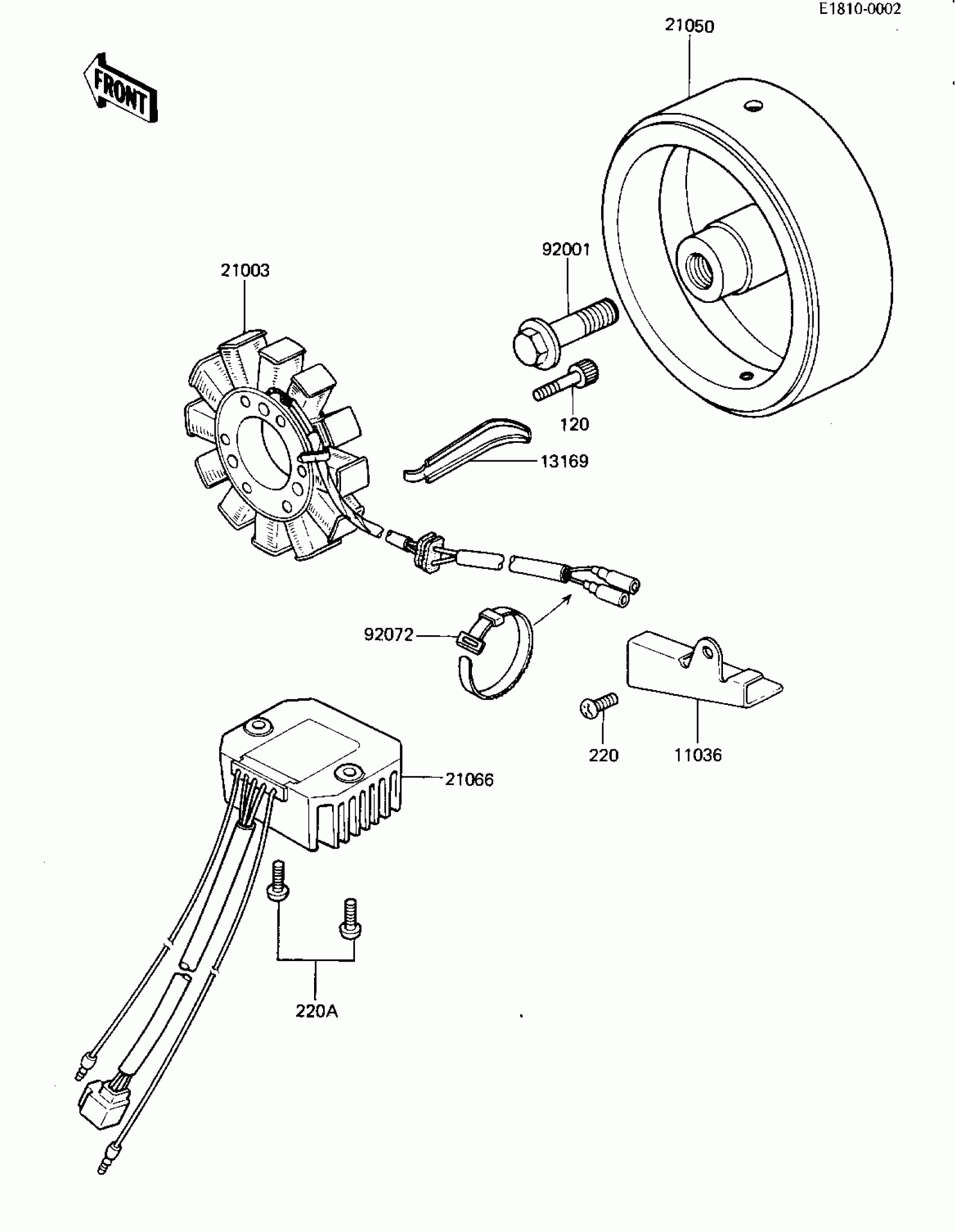

Kawasaki KZ440-G1 GENERATOR/REGULATOR Diagram

#

Description

Price

11036

BRACKET-A,LEAD CLAMP

11036-1184

Unavailable

13169

PLATE,LEAD CLAMP

13169-1008

Unavailable

21003

STATOR.ASSY,GENERATER

21003-1009

Unavailable

21050

FLYWHEEL

21050-1004

$932.12

21066

REGULATOR,VOLTAGE

21066-1014

Unavailable

92001

BOLT,10X40

92002-1303

Unavailable

92072

BAND,L=123

92072-030

$3.81

120

BOLT-SOCKET,6X28

120P0628

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

220A

SCREW-PAN-CROS,6X14

220B0614

$1.14
