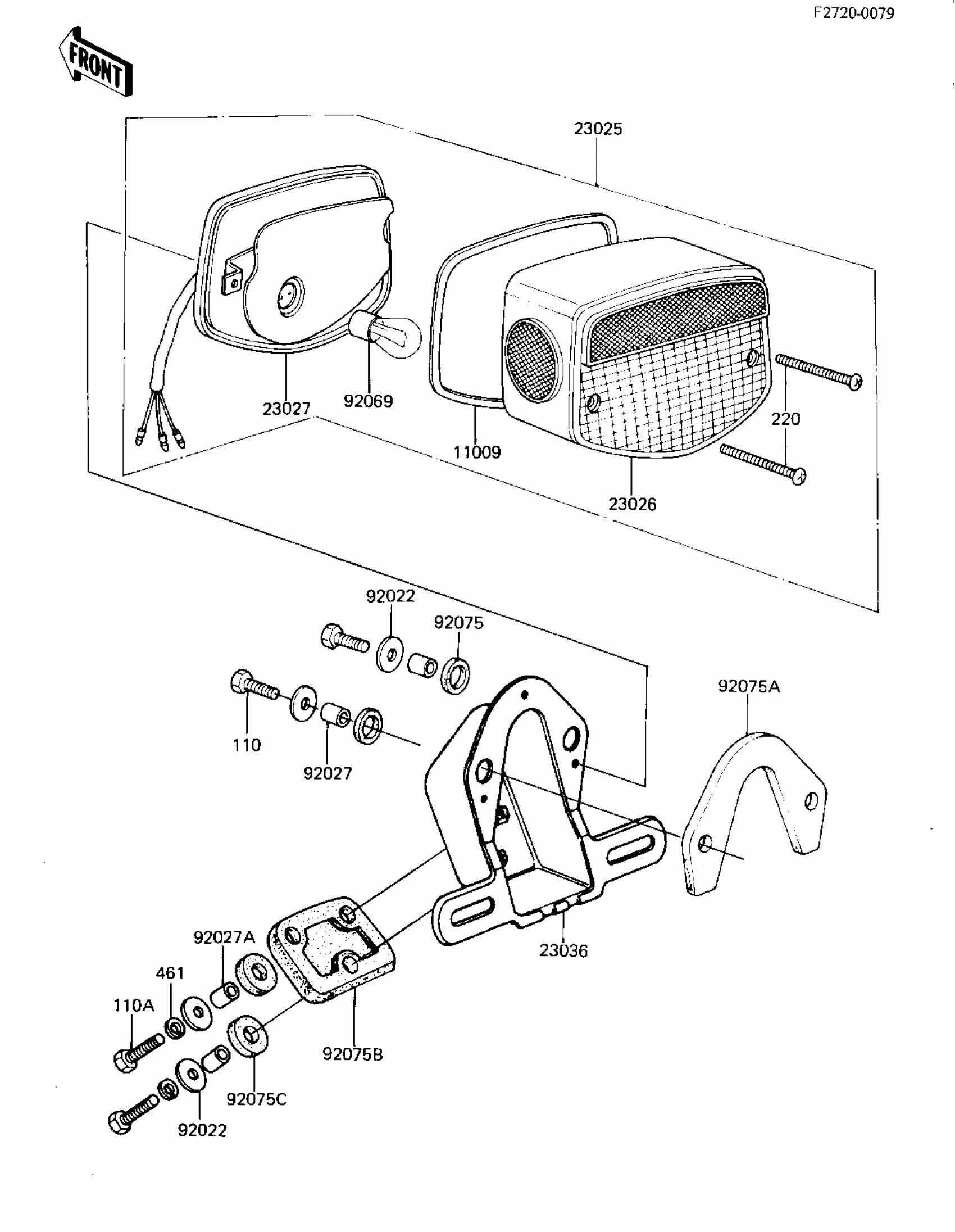

Kawasaki KZ440-G1 TAILLIGHT Diagram

Description

Price

11009

GASKET,TAIL LAMP LENS

23028-021

$11.83

23025

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

23026

LENS,TAIL LAMP

23026-034

$78.61

23027

BODY-COMP-TAIL LAMP

23027-041

$130.76

23036

BRACKET,LICENSE PLATE

23036-051

$81.42

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X8.5

92027-129

$3.81

92027A

COLLAR,6.8X10X14.5

92027-156

$3.81

92069

BULB,12V 27/8W

92069-059

$6.19

92075

DAMPER

23066-020

$14.19

92075A

DAMPER

23066-023

$16.51

92075B

DAMPER,TAIL LAMP

35039-004

$17.22

92075C

DAMPER,FENDER

92075-121

$3.49

110

BOLT-UPSET

112G0618

Unavailable

110A

BOLT-UPSET

112G0625

Unavailable

220

SCREW-PAN-CROS

220R0460

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
