1981 Kawasaki KZ1300-A3 Mufflers Diagram

← All diagrams

Find the part on the Mufflers diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

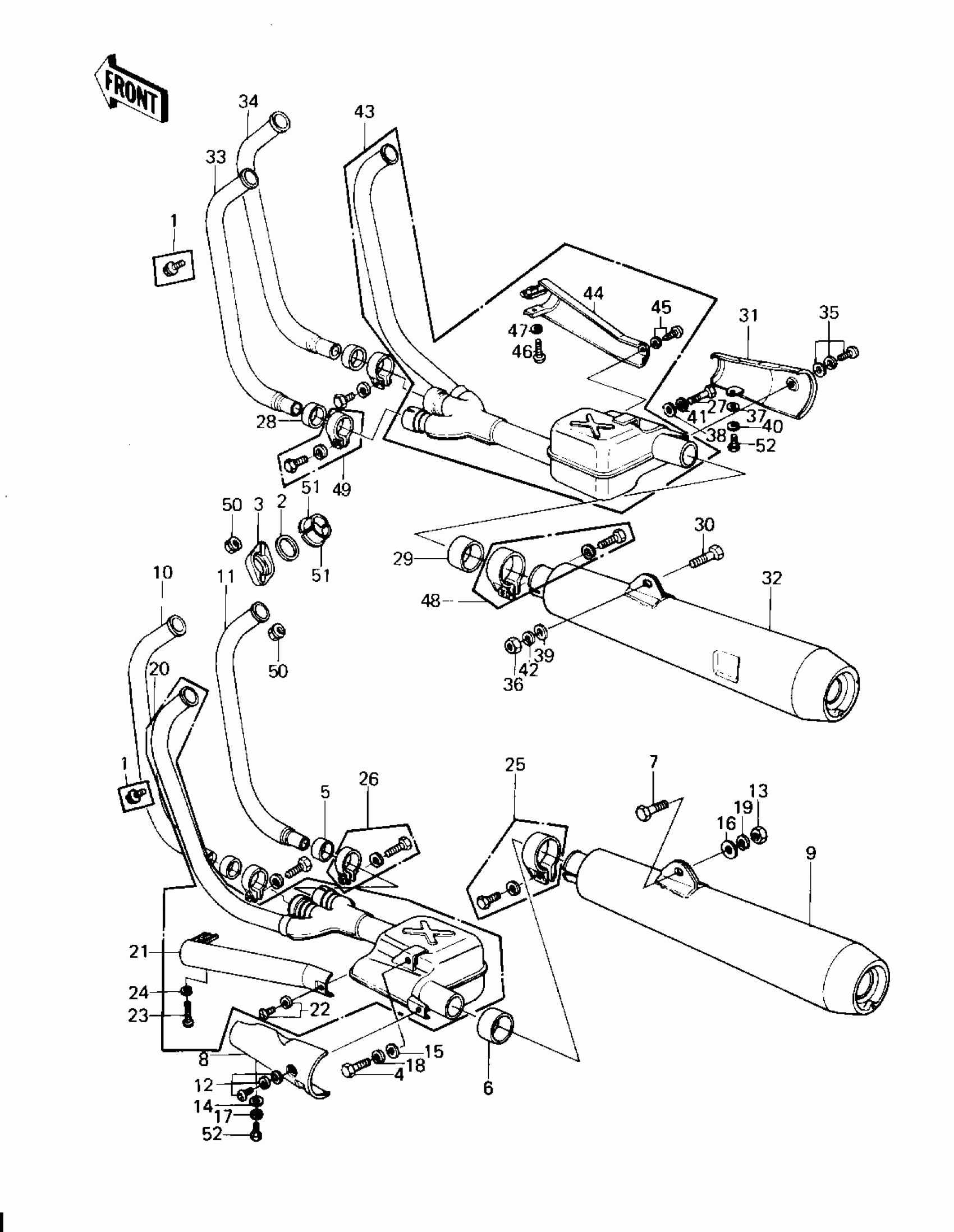

1981 Kawasaki KZ1300-A3 Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-FLANGED,6X10

130N0610

1
Out of stock

2

GASKET,EXHAUST PIPE H

11009-1866

1
Out of stock

3

HOLDER-EXHAUST PIPE

18069-1010

1
Out of stock

4

BOLT-SMALL,8X25

114N0825

1
Out of stock

5

GASKET,MUFFLER CONNEC

11060-1051

1
Out of stock

6

GASKET,EXHAUST PIPE CONNECTING

11009-1666

1
Out of stock

7

BOLT,HEX HEAD 10X40

92001-1253

1
Out of stock

8

COVER,MUFFLER,L.H,RER

14025-1149

1
Out of stock

9

BODY-COMP-MUFFLER,LH

18002-1375

1
Out of stock

9

BODY-COMP-MUFFLER,LH

18002-1375

1
Out of stock

10

PIPE-EXHAUST,#2

18049-1164

1
Out of stock

10

PIPE-EXHAUST,#2

18049-1164

1
Out of stock

11

PIPE-EXHAUST,#3

18049-1165

1
Out of stock

11

PIPE-EXHAUST,#3

18049-1165

1
Out of stock

12

SCREW,6X10,W/WASHER

92009-1098

1
Out of stock

13

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

14

WASHER PLAIN 6MM

411B0600

1
Out of stock

15

WASHER-PLAIN,8MM

411D0800

1
Out of stock

16

WASHER-PLAIN,10MM

411B1000

1
Out of stock

17

WASHER SPRING 6MM

461F0600

1
Out of stock

18

WASHER SPRING 8MM

461S0800

1
Out of stock

19

WASHER SPRING 10MM

461F1000

1
Out of stock

20

CHAMBER,POWER,L.H.

49070-1021

1
Out of stock

20

MUFFLER-COMP,LH

49070-1101

1
Out of stock

21

COVER,MUFFLER,L.H,FR

14025-1147

1
Out of stock

22

SCREW,6X12

92009-1088

1
Out of stock

23

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

24

WASHER SPRING 6MM

461F0600

1
Out of stock

25

CLAMP,MUFFLER

92037-1105

1
Out of stock

25

CLAMP,POWER CHAMBER

92037-1228

1
Out of stock

26

CLAMP,MUFFLER,37MM

92037-1243

1
Out of stock

26

CLAMP,MUFFLER,37MM

92037-1243

1
Out of stock

27

BOLT,8X55

114N0855

1
Out of stock

28

GASKET,MUFFLER CONNEC

11060-1051

1
Out of stock

29

GASKET,EXHAUST PIPE CONNECTING

11009-1666

1
Out of stock

30

BOLT,HEX HEAD 10X40

92001-1253

1
Out of stock

31

COVER,MUFFLER,R.H,RER

14025-1150

1
Out of stock

32

BODY-COMP-MUFFLER,RH

18002-1376

1
Out of stock

32

BODY-COMP-MUFFLER,RH

18002-1376

1
Out of stock

33

PIPE-EXHAUST,#4

18049-1166

1
Out of stock

33

PIPE-EXHAUST,#4

18049-1166

1
Out of stock

34

PIPE-EXHAUST,#5

18049-1167

1
Out of stock

34

PIPE-EXHAUST,#5

18049-1167

1
Out of stock

35

SCREW,6X10,W/WASHER

92009-1098

1
Out of stock

36

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

37

WASHER PLAIN 6MM

411B0600

1
Out of stock

38

WASHER-PLAIN,8MM

411D0800

1
Out of stock

39

WASHER-PLAIN,10MM

411B1000

1
Out of stock

40

WASHER SPRING 6MM

461F0600

1
Out of stock

41

WASHER SPRING 8MM

461S0800

1
Out of stock

42

WASHER SPRING 10MM

461F1000

1
Out of stock

43

MUFFLER-COMP,RH

49070-1102

1
Out of stock

43

MUFFLER-COMP,RH

49070-1102

1
Out of stock

44

COVER,MUFFLER,R.H,FR

14025-1148

1
Out of stock

45

SCREW,6X12

92009-1088

1
Out of stock

46

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

47

WASHER SPRING 6MM

461F0600

1
Out of stock

48

CLAMP,MUFFLER

92037-1105

1
Out of stock

49

CLAMP,MUFFLER,37MM

92037-1243

1
Out of stock

49

CLAMP,MUFFLER,37MM

92037-1243

1
Out of stock

50

NUT,FLANGED,6MM

92015-1078

1
Out of stock

51

COLLAR,L=14.5

92027-1142

1
Out of stock

52

BOLT-UPSET,6X12

112G0612

1
Out of stock
