1981 Kawasaki KZ1300-A3 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

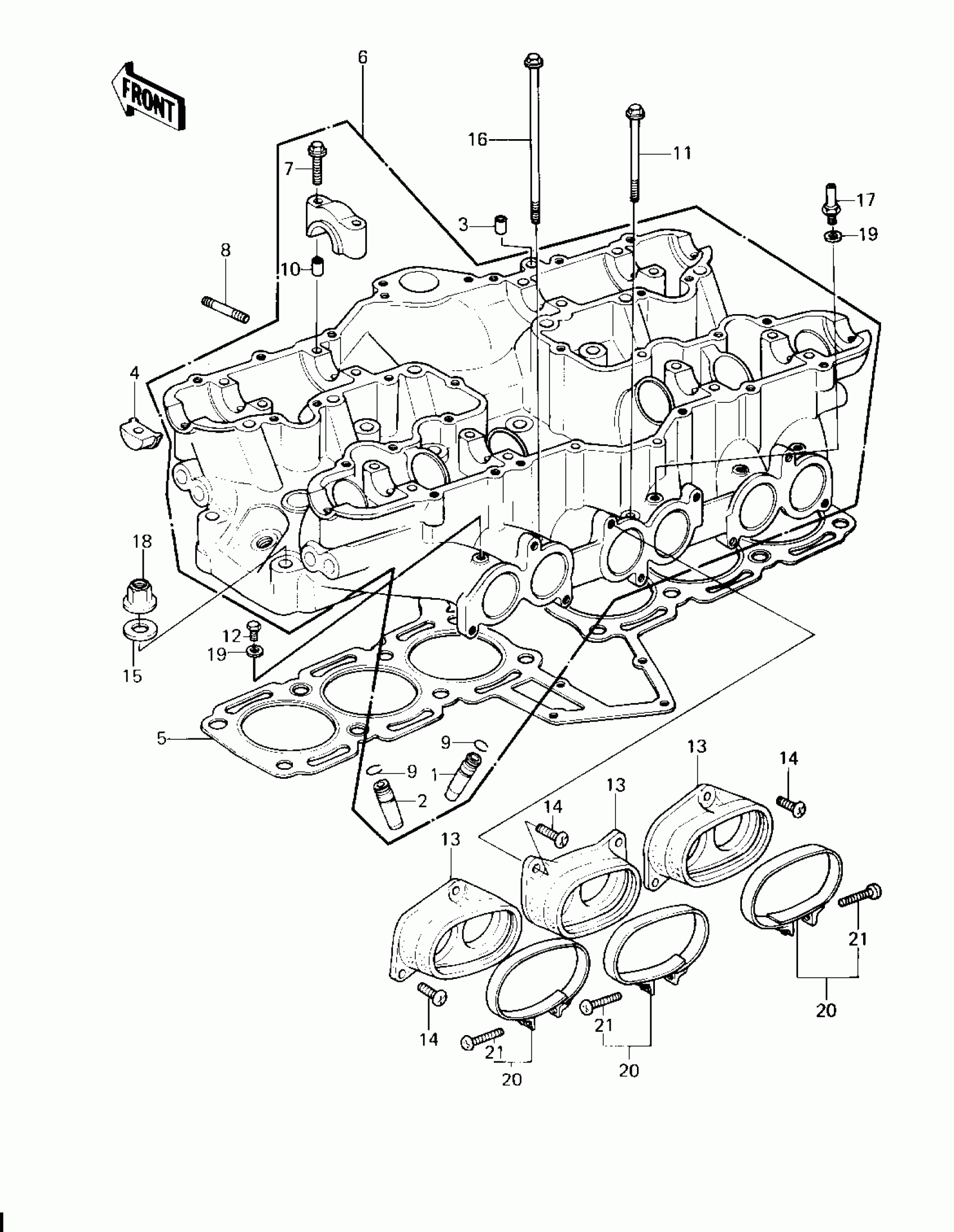

1981 Kawasaki KZ1300-A3 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE-VALVE,INTAKE

12013-009

1
Out of stock

2

GUIDE-VALVE,EXHAUST

49002-1002

1
Out of stock

3

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

4

PLUG,CAMSHAFT,

92066-1030

1
Out of stock

5

GASKET-HEAD,CYLINDER

11004-1014

1
Out of stock

6

HEAD,CYLINDER

11008-1002

1
Out of stock

6

HEAD-COMP-CYLINDER

11008-1022

1
Out of stock

7

BOLT,FLANGED,6X45

92003-092

1
Out of stock

8

STUD,6X27

92004-066

1
Out of stock

9

RING-SNAP,VALVE GUIDE

92036-023

1
Out of stock

10

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

11

BOLT,FLANGED,6X65

130G0665

1
Out of stock

12

BOLT-FLANGED,6X8

130N0608

1
Out of stock

13

HOLDER-CARBURETOR

16065-1016

1
Out of stock

14

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

15

WASHER-PLAIN,10MM

411B1000

1
Out of stock

16

BOLT,HEX HEAD,6X161

92001-1302

1
Out of stock

17

BOLT,VACUUM

92001-1143

1
Out of stock

18

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

19

WASHER,6.2X11X1

92022-304

1
Out of stock

20

CLAMP,CARBURETOR HOLDER

92037-1119

1
Out of stock

21

SCREW,PAN HEAD,5X30

92011-032

1
Out of stock
