1981 Kawasaki KZ1300-A3 Crankcase Bolt & Stud Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

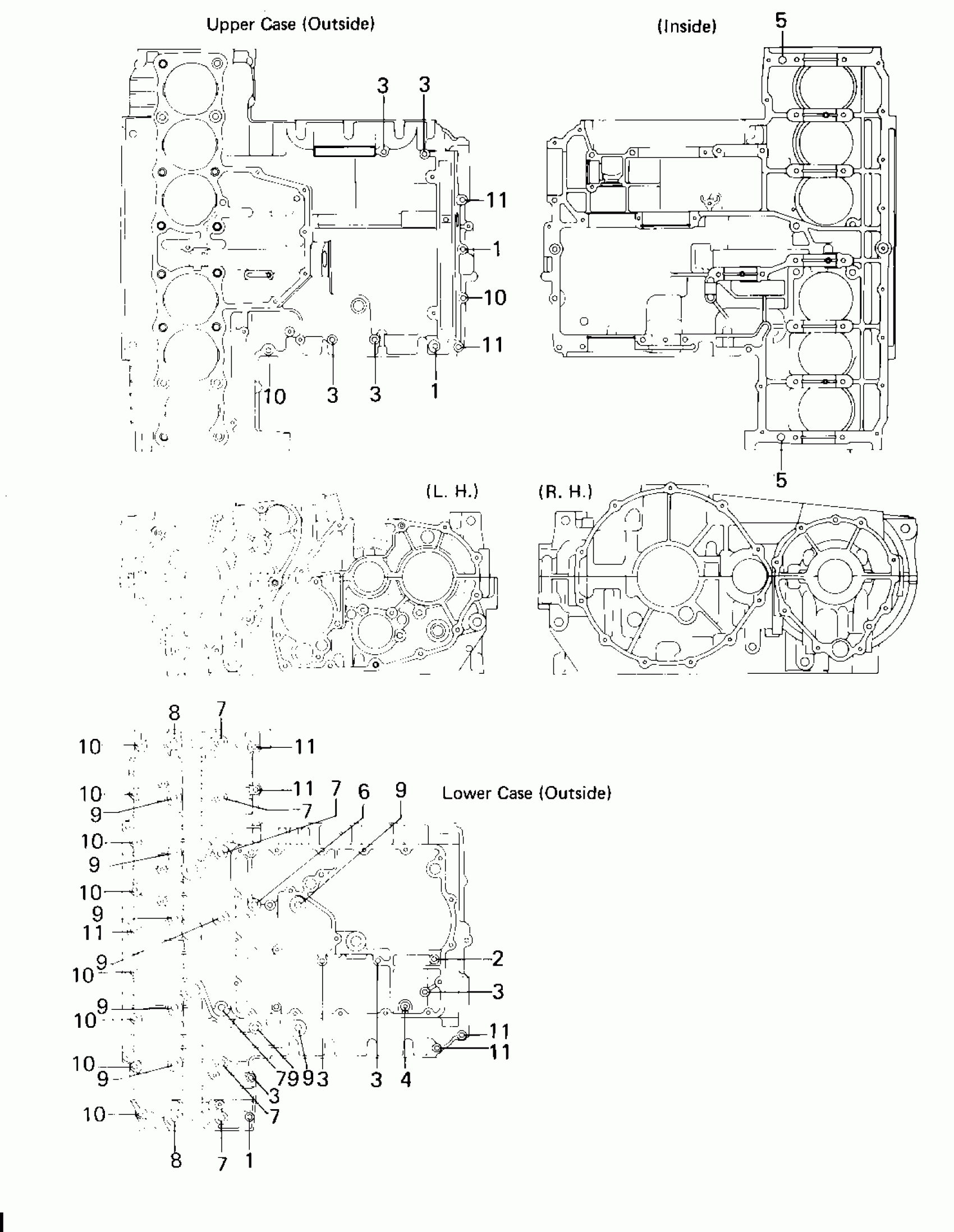

1981 Kawasaki KZ1300-A3 Crankcase Bolt & Stud Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,FLANGED,6X65

130G0665

1
Out of stock

2

BOLT,FLANGED,6X85

130G0685

1
Out of stock

3

BOLT,FLANGED,6X85

130G0685

1
Out of stock

4

NOZZLE,SILVER

92062-015

1
Out of stock

5

PIN-DOWEL,6.5X10X12

552B1012

1
Out of stock

6

BOLT,TENSION,8X130

92001-1121

1
Out of stock

7

BOLT,TENSION,8X105

92001-1185

1
Out of stock

7

BOLT,TENSION,8X105

92001-1185

1
Out of stock

8

BOLT-FLANGED,8X95

130P0895

1
Out of stock

9

BOLT-FLANGED,8X95

130P0895

1
Out of stock

10

BOLT,FLANGED,6X38

92003-116

1
Out of stock

11

BOLT-FLANGED,6X50

130G0650

1
Out of stock
