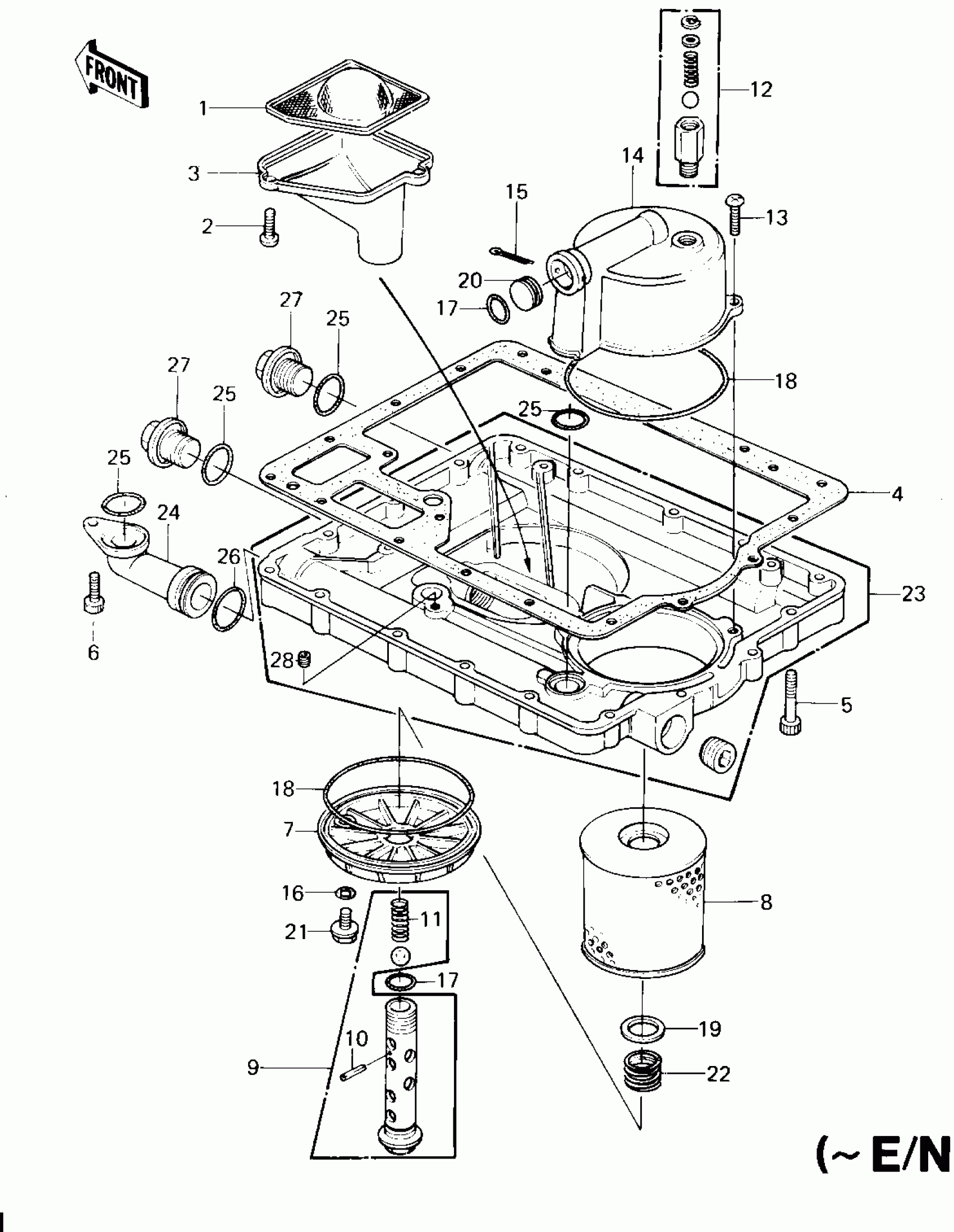

Kawasaki KZ1300-A3 OIL PAN/OIL FILTER (~E/NO. 010637) Diagram

#

Description
Price

1

FILTER,OIL

14043-1007

$22.31

2

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

3

CASE,OIL FILTER

32099-1006

$19.03

4

GASKET,OIL PAN

11009-1093

Unavailable

5

BOLT-SOCKET,6X35

120P0635

Unavailable

6

BOLT-SOCKET,6X20

120P0620

Unavailable

7

COVER,OIL FILTER

14025-1170

Unavailable

7

COVER,OIL FILTER

14025-1170

Unavailable

8

ELEMENT-OIL FILTER

16099-002

$12.29

9

VALVE,OIL FILTER

16126-1006

$48.75

10

PIN,SPRING,2X20

92043-111

$5.46

11

SPRING

92081-133

Unavailable

12

VALVE-ASSY-RELIEF

16130-1001

$41.95

13

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

14

CASE,OIL FILTER

32099-1008

$51.51

15

PIN-COTTER,2.0X40

550D2040

$1.47

16

O RING,8MM

670B1508

$1.00

17

O RING,16MM

670B2016

$1.04

18

O RING,95MM

671B2595

$5.58

19

WASHER,20.5X30X1

92022-1012

$3.32

21

PLUG,DRAIN,8X10

92066-1026

$9.85

22

SPRING,OIL FILTER

92081-1018

$3.54

23

PAN-OIL

49034-5008

$172.68

23

PAN-OIL

49034-5008

$172.68

24

ELBOW,OIL PASSAGE

52014-1002

$45.81

25

O RING,22MM

670B2022

$3.57

26

O RING,25MM

671B2525

$3.81

27

PLUG,OIL DRAIN

92001-1183

$55.65

28

NOZZLE,SILVER

92062-015

$3.22
