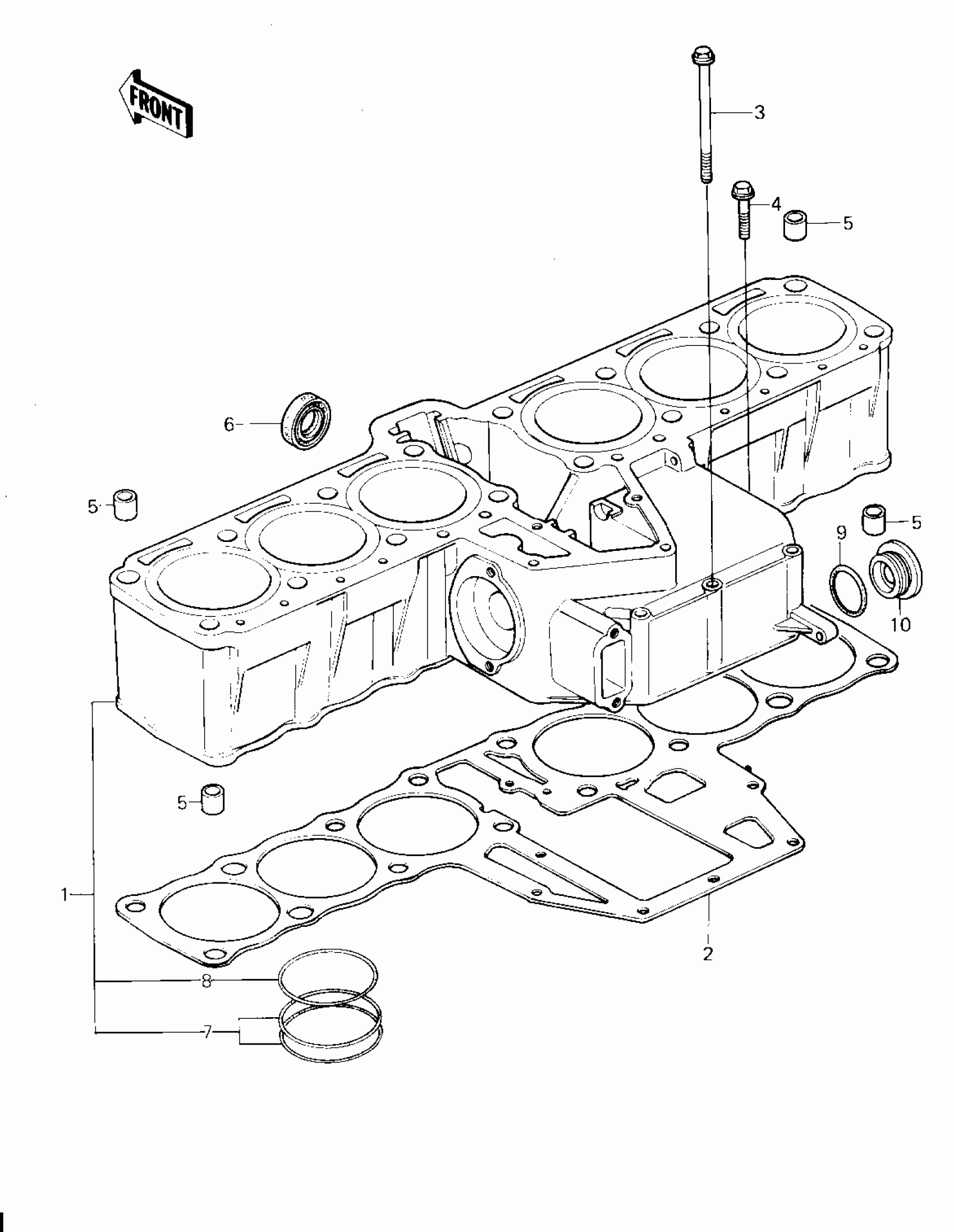

Find the part on the Cylinder diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY

11006-1003

1
Out of stock

1

CYLINDER-ENGINE

11005-1104

1
Out of stock

2

GASKET,CYLINDER BASE

11009-1101

1
Out of stock

3

BOLT,FLANGED,6X85

130G0685

1
Out of stock

4

BOLT,FLANGED,6X28

92003-202

1
Out of stock

5

PIN,11X14X12.3

92043-1266

1
Out of stock

6

SEAL-OIL,TC17317

92049-1028

1
Out of stock

7

RING-O,67MM

92055-1032

1
Out of stock

8

RING-O,67.5MM

92055-1035

1
Out of stock

9

RING-O,27.7X2.4

92055-091

1
Out of stock

10

PLUG,30X8

92067-024

1
Out of stock
