1981 Kawasaki KZ1300-A3 Frame Diagram

← All diagrams

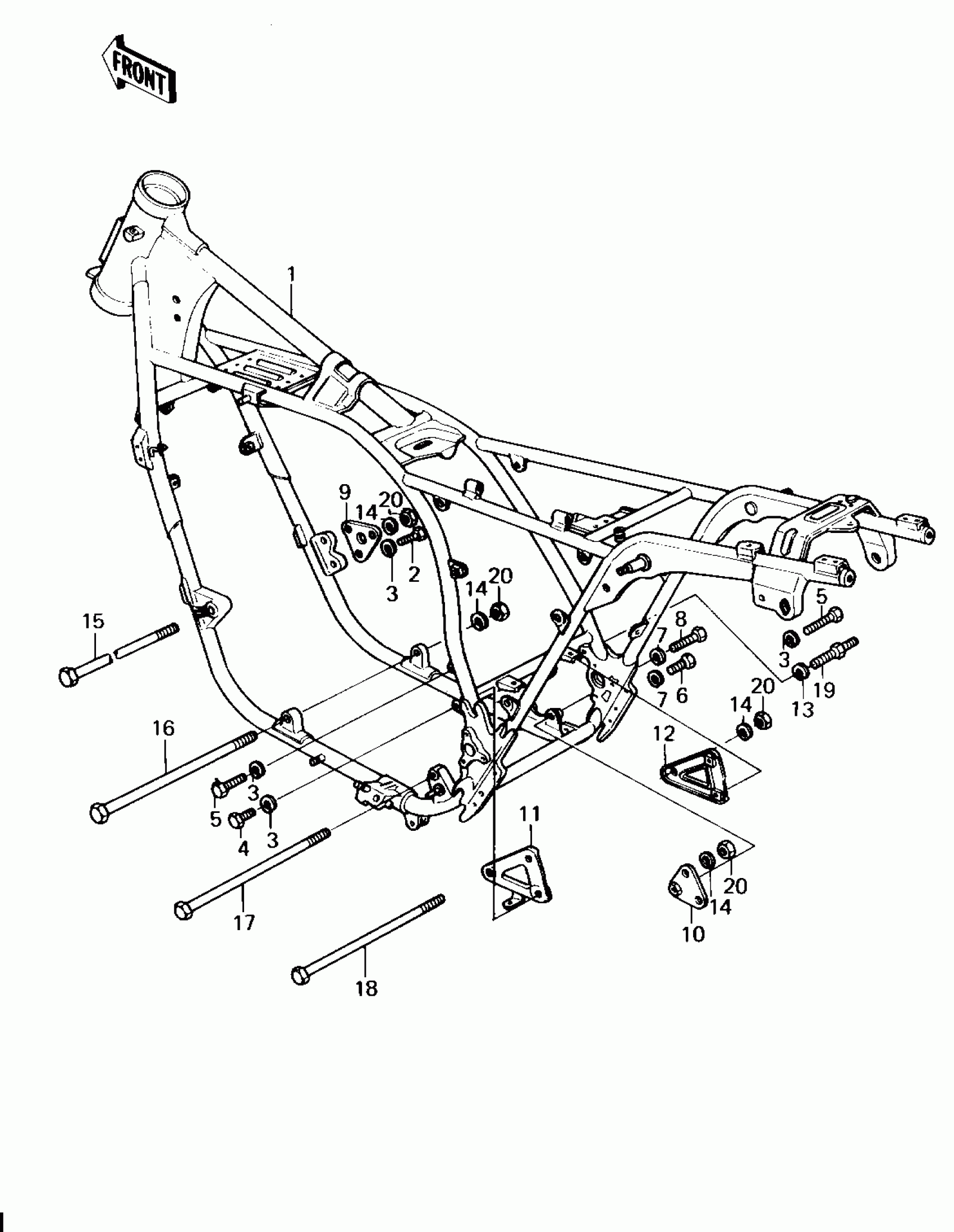

Find the part on the Frame diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

32002-1092

1
Out of stock

1

FRAME-COMP

32002-1371

1
Out of stock

2

BOLT,8X22

114G0822

1
Out of stock

3

WASHER SPRING 8MM

461F0800

1
Out of stock

4

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

5

BOLT,8X40

115G0840

1
Out of stock

6

BOLT,HEX HEAD,10X16

113G1016

1
Out of stock

7

WASHER SPRING 10MM

461F1000

1
Out of stock

8

BOLT,HEX HEAD 10X40

92001-1253

1
Out of stock

9

BRACKET-ENGINE,FR,RH,UPP

32029-1061

1
Out of stock

10

BRACKET,ENGINE,REAR

32029-1062

1
Out of stock

11

BRACKET,ENGINE,REAR

32029-1063

1
Out of stock

12

BRACKET,ENGINE,REAR

32029-1064

1
Out of stock

13

WASHER SPRING 8MM

461F0800

1
Out of stock

14

WASHER SPRING 10MM

461F1000

1
Out of stock

15

BOLT,HEX HEAD,10X369

92001-1126

1
Out of stock

16

BOLT,HEX HEAD,10X3/3

92001-1127

1
Out of stock

17

BOLT,HEX HEAD,10X305

92001-1128

1
Out of stock

18

BOLT,HEX HEAD,10X287

92001-1129

1
Out of stock

19

BOLT,ENGINE BRACKET

92001-1400

1
Out of stock

19

BOLT,ENGINE BRACKET

92001-1400

1
Out of stock

20

NUT,10MM

92015-1429

1
Out of stock
