1981 Kawasaki KZ1300-A3 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

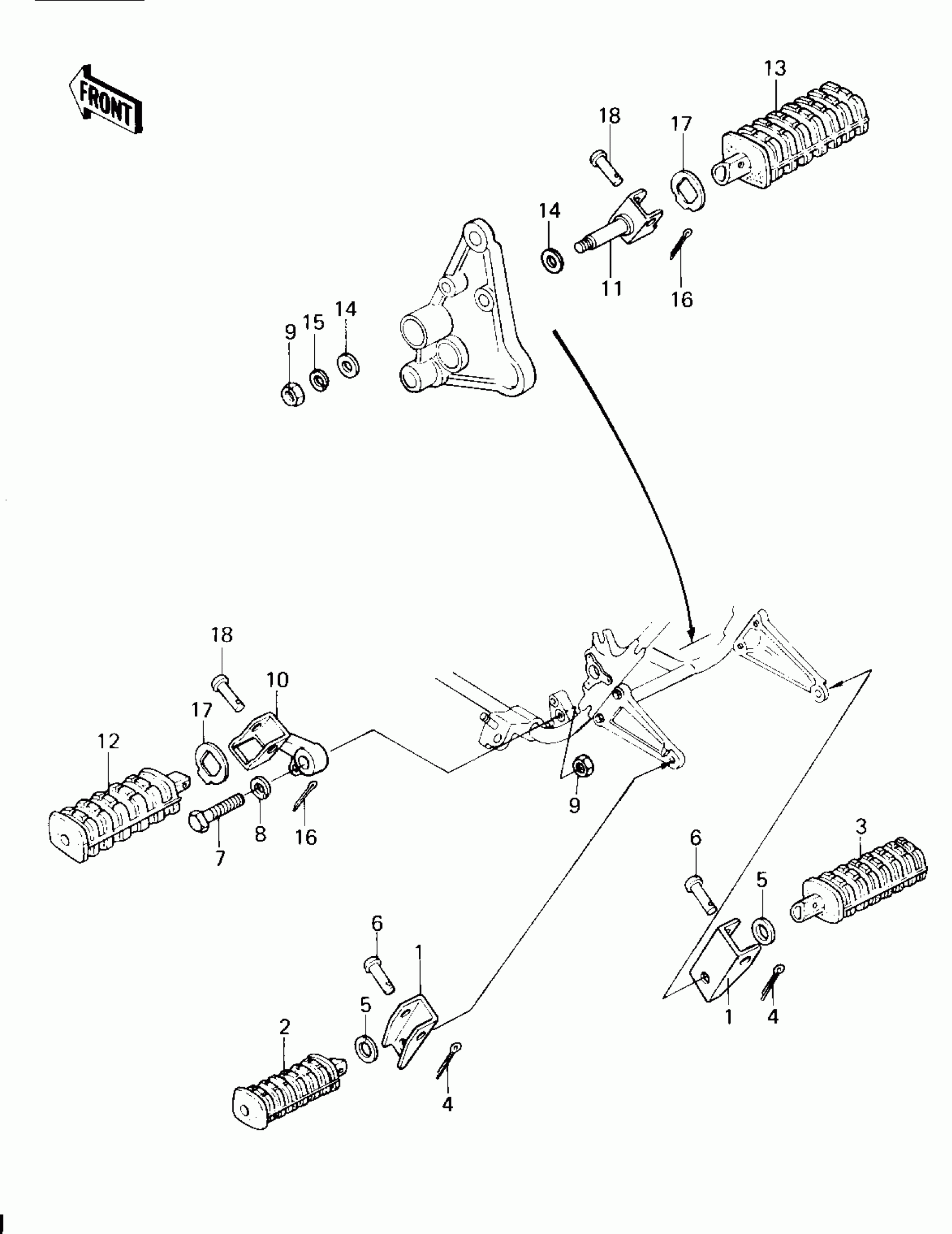

1981 Kawasaki KZ1300-A3 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

2

STEP,RR,LH

34028-1009

1
Out of stock

3

STEP,RR,RH

34028-1010

1
Out of stock

4

PIN-COTTER,2.0X12

550D2012

1
Out of stock

5

WASHER,22.5X30X2.6

92022-181

1
Out of stock

6

PIN,6X28

92043-1464

1
Out of stock

7

BOLT-HEX HEAD,12X36

113B1236A

1
Out of stock

8

WASHER-SPRING,12MM

461F1200

1
Out of stock

9

NUT-HEX-FINE

315B1200

1
Out of stock

10

HOLDER,L.H,FOOTREST

34003-1029

1
Out of stock

11

HOLDER,R.H,FOOTREST

34003-1030

1
Out of stock

12

STEP,FRONT FOOTREST

34028-1015

1

$80.80

In stock

13

STEP,FRONT FOOTREST

34028-1016

1
Out of stock

14

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

15

WASHER-SPRING,12MM

461F1200

1
Out of stock

16

PIN COTTER 2.5X16

550D2516

1
Out of stock

17

WASHER,LOCK

92022-1096

1
Out of stock

18

PIN,8X31

92043-080

1
Out of stock
