1981 Kawasaki KZ1300-A3 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

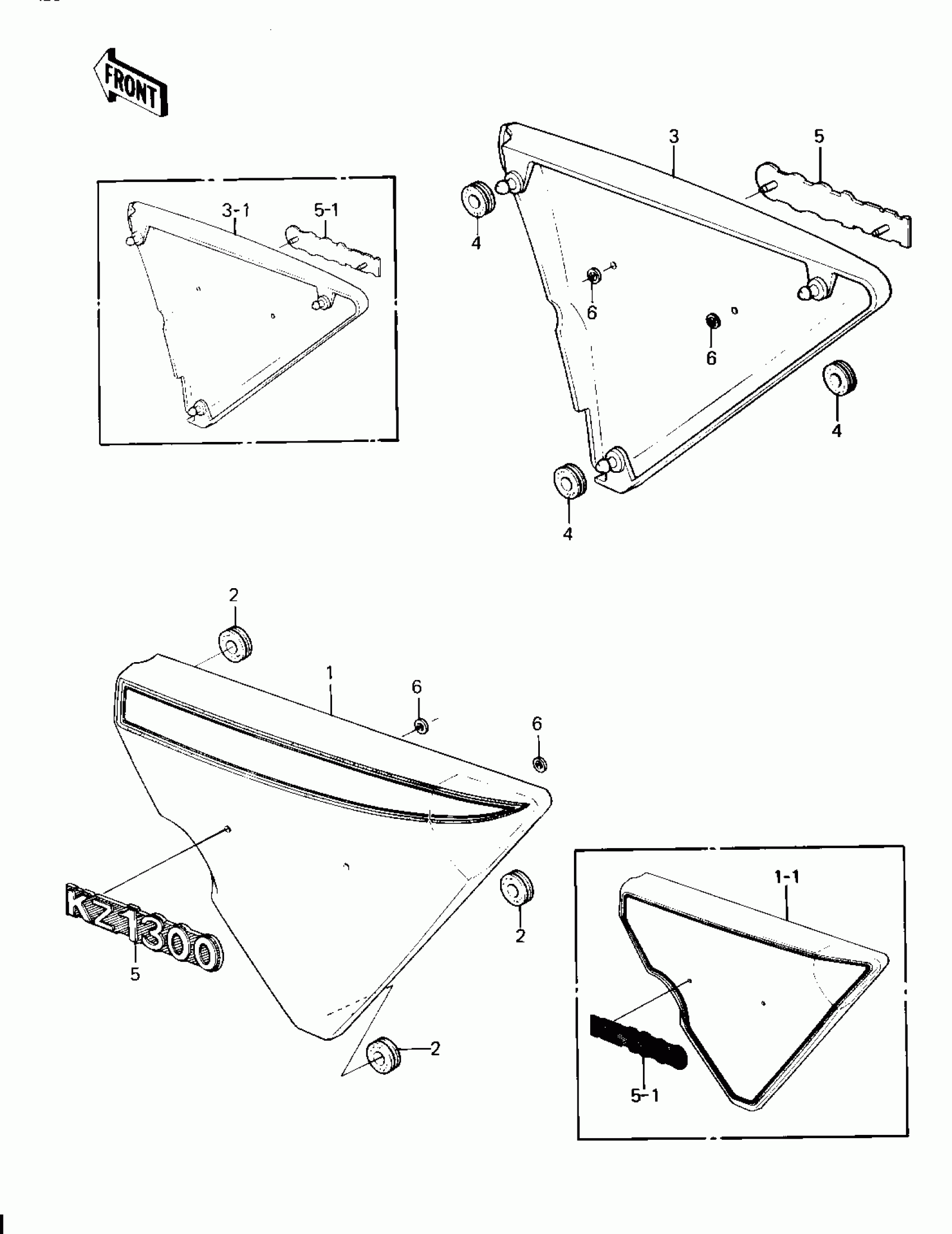

1981 Kawasaki KZ1300-A3 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,L.H SIDE,L.S.BL

36001-5008-C1

1

$104.29

In stock

1-1

COVER-SIDE,LH,EBONY

36001-5008-8G

1

$125.75

In stock

2

GROMMET

92071-056

1
Out of stock

3

COVER,R.H,SIDE,L.S.B

36001-1041-C1

1

$128.82

In stock

3-1

COVER-SIDE,RH,EBONY

36001-1041-8G

1

$124.78

In stock

4

GROMMET

92071-056

1
Out of stock

5

EMBLEM,SIDE COVER

56018-1102

1
Out of stock

5-1

MARK,SIDE COVER

56018-1220

1
Out of stock

6

NUT,PUSH,3MM

92018-005

1
Out of stock
