Find the part on the Muffler diagram for your 1988 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

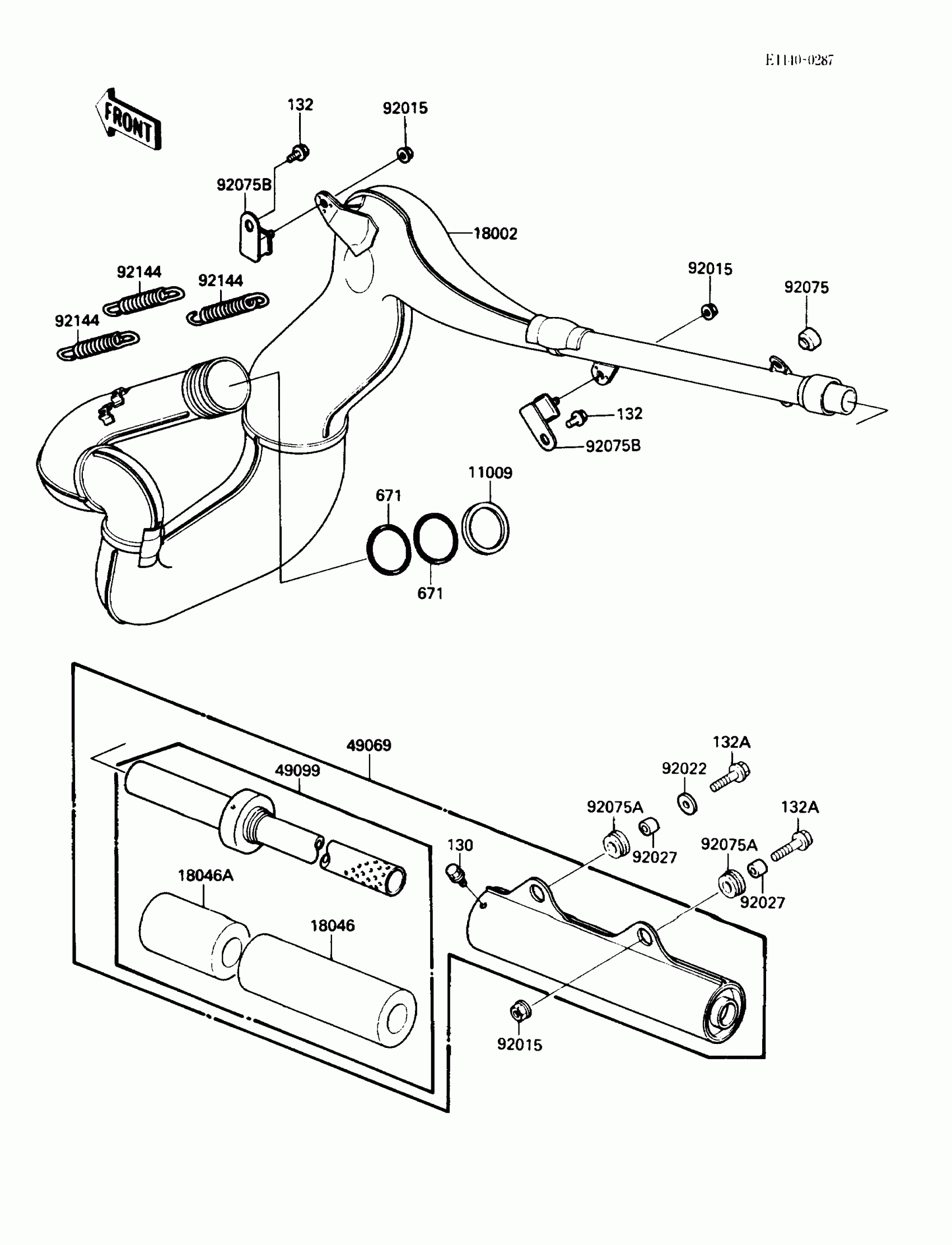

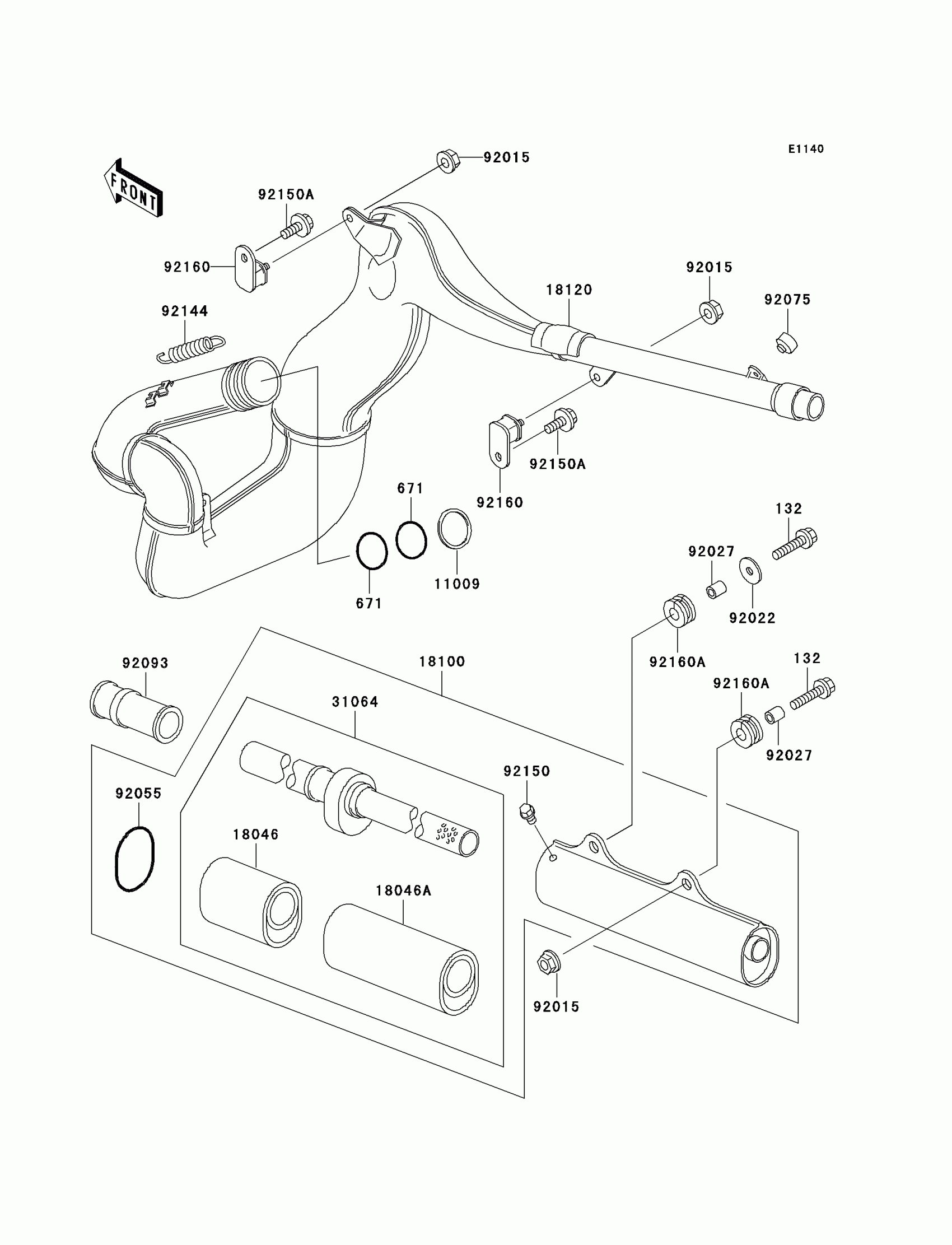

1988 Kawasaki KX500 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE

11009-1253

1
Out of stock

18002

BODY-COMP-MUFFLER

18002-1799

1
Out of stock

18046

WOOL,L=200

18046-1073

1
Out of stock

18046A

WOOL,L=130

18046-1088

1

$36.93

In stock

49069

MUFFLER-ASSY

49069-1088

1

$237.03

In stock

49099

BAFFLE-PIPE MUFFLER

49099-1246

1

$110.49

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92027

COLLAR,6.8X10X11.5

92027-1210

1

$8.16

In stock

92075

DAMPER

92075-1598

1

$6.82

In stock

92075A

1

$4.72

In stock

92075B

DAMPER,MUFFLER

92075-1891

1

$29.76

In stock

92144

SPRING

92144-1035

1

$8.35

In stock

130

BOLT-FLANGED,5X8

130G0508

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

671

O RING,50MM

671E2550

1

$12.13

In stock
