1988 Kawasaki KX500 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 1988 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

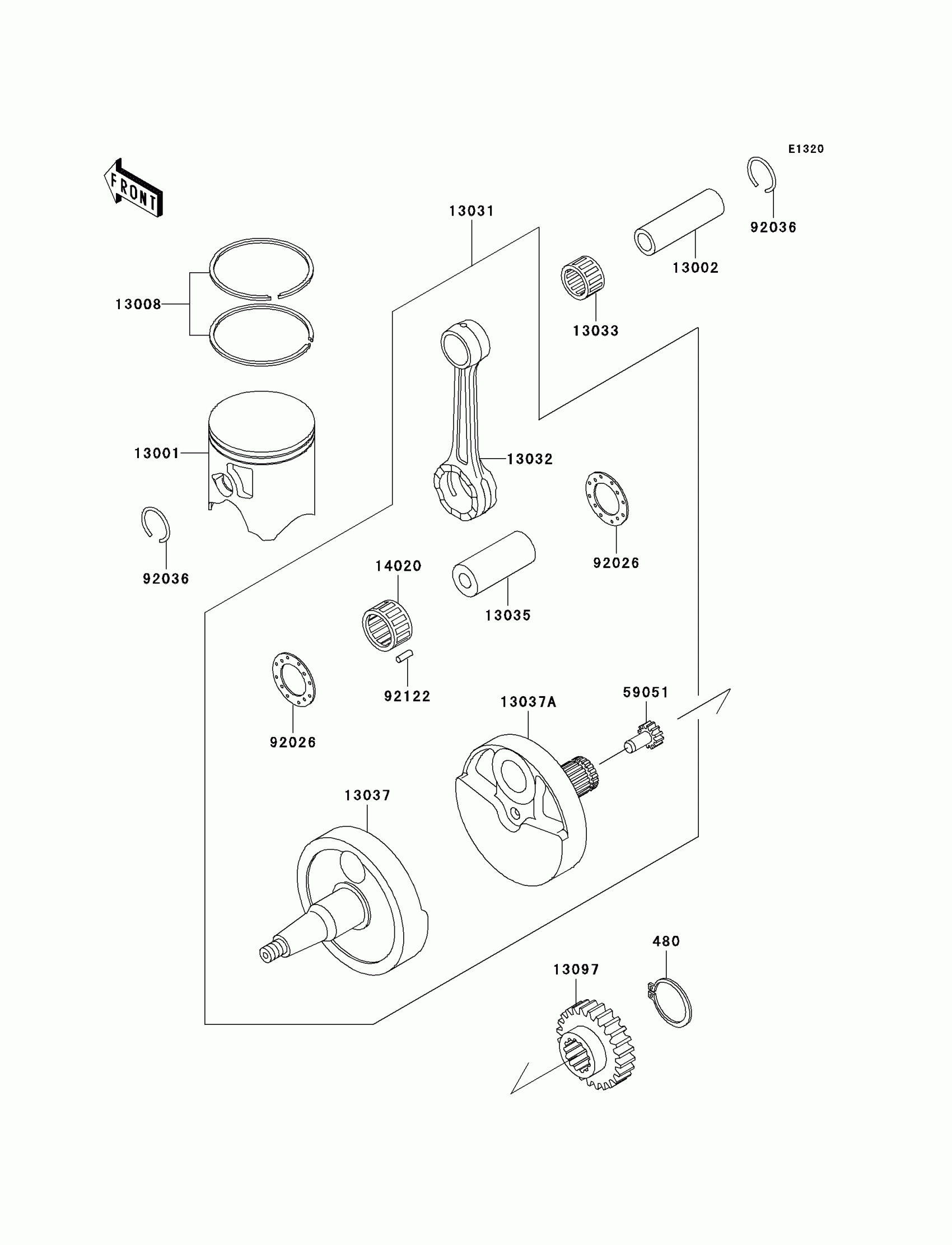

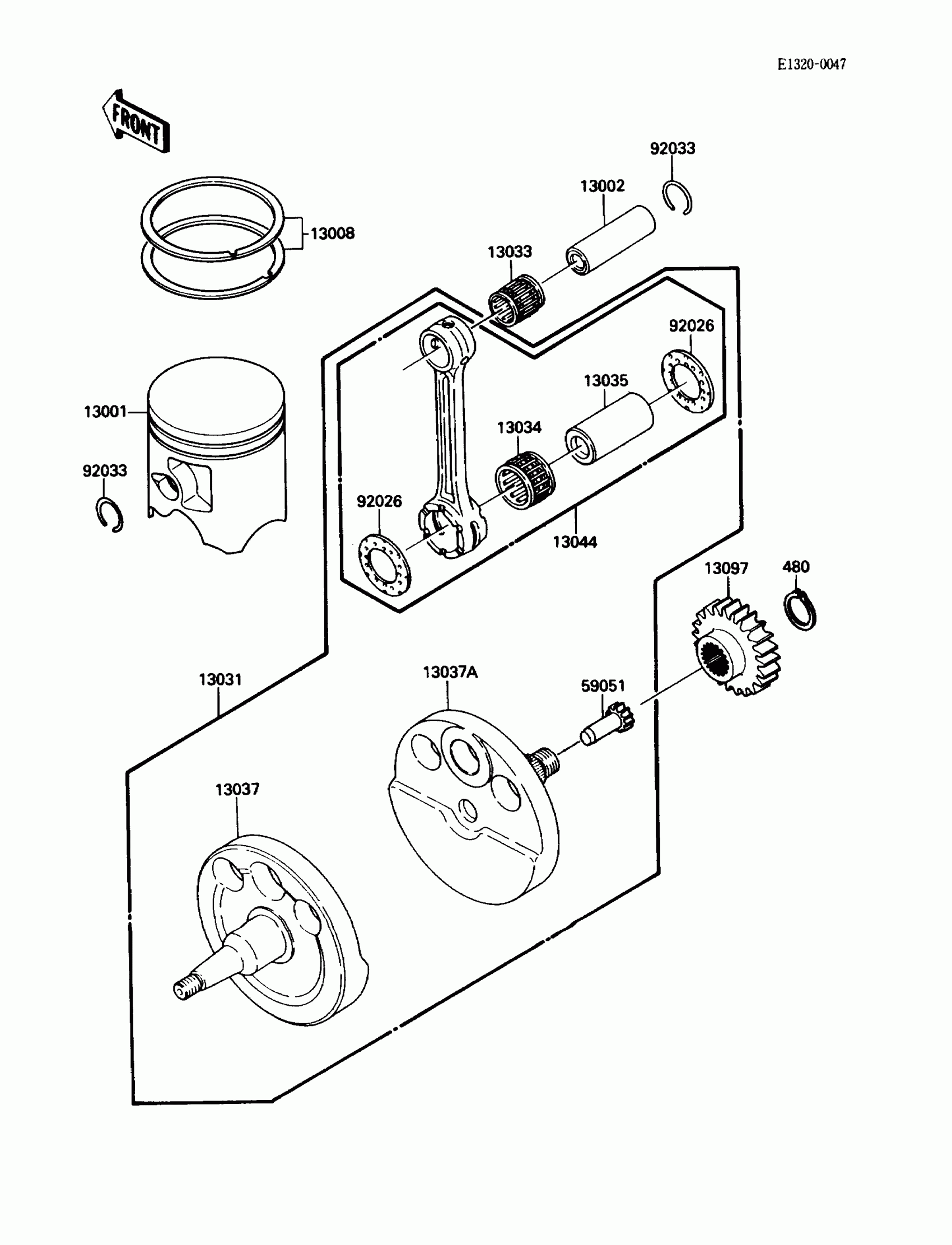

1988 Kawasaki KX500 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-1267

1
Out of stock

13002

PIN-PISTON

13002-1067

1
Out of stock

13008

RING-SET-PISTON

13008-1103

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1260

1
Out of stock

13033

BEARING-NEEDLE,KTV19242.5

13033-031

1
Out of stock

13034

BEARING-BIG END

13034-1083

1
Out of stock

13035

PIN-CRANK

13035-1008

1
Out of stock

13037

CRANKSHAFT,LH

13037-1323

1
Out of stock

13037A

CRANKSHAFT,RH

13037-1324

1
Out of stock

13044

SET-CONNECTING ROD

13044-5072

1
Out of stock

13097

GEAR-PRIMARY SPUR,26T

13097-1205

1
Out of stock

59051

GEAR-SPUR,WATER PUMP,13T

59051-1128

1
Out of stock

92026

SPACER,26X44X1.0

92026-1346

1
Out of stock

92033

RING-SNAP,PISTON PIN

92036-008

1
Out of stock

480

CIRCLIP-TYPE-C,24MM

480J2400

1
Out of stock
