1985 Kawasaki KX500 Crankcase Diagram

← All diagrams

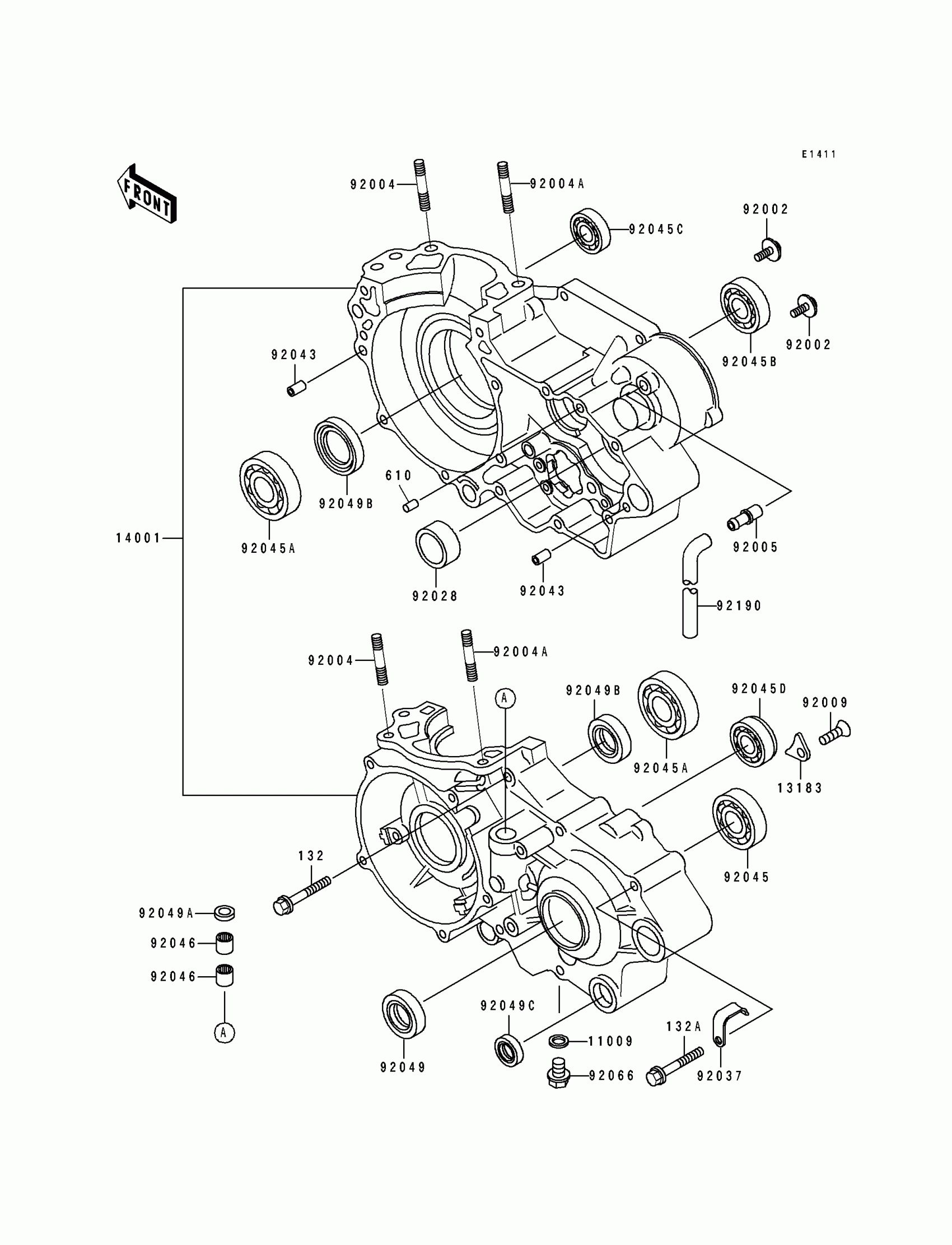

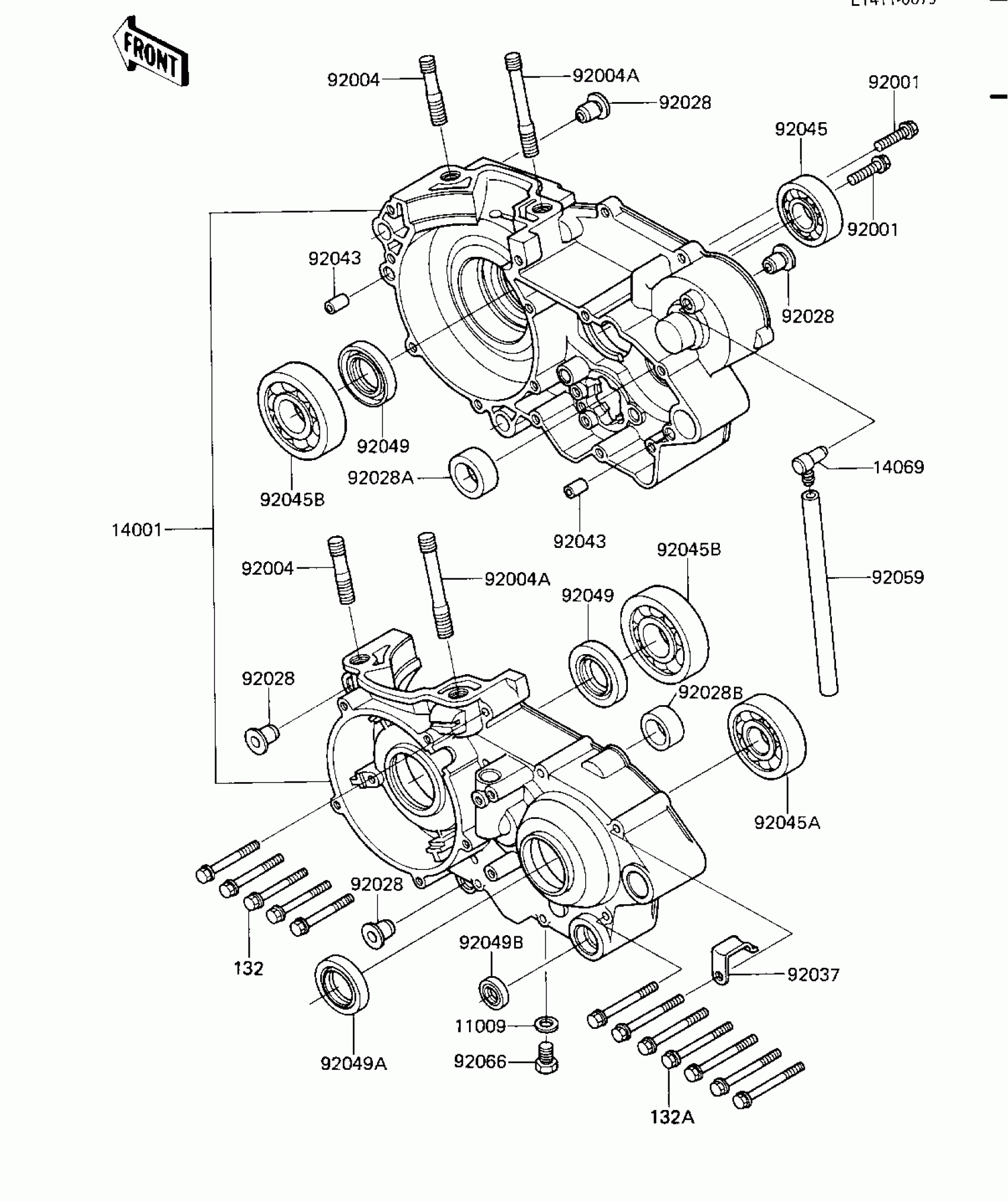

Find the part on the Crankcase diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki KX500 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

14001

SET-CRANKCASE

14001-5158

1
Out of stock

14069

BREATHER

14069-003

1

$8.16

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92004

STUD,10X35

92004-1051

1
Out of stock

92004A

STUD,10X67

92004-1052

1
Out of stock

92028

BUSHING

92028-1133

1
Out of stock

92028A

BUSHING,26X35X14

92028-131

1

$34.76

In stock

92028B

BUSHING,23X30X13

92028-132

1

$38.79

In stock

92037

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

BEARING,BALL

92045-1006

1
Out of stock

92045A

BEARING-BALL,#6305

92045-1011

1

$35.08

In stock

92045B

1

$55.29

In stock

92049

SEAL-OIL

92050-057

1
Out of stock

92049A

SEAL-OIL,TC32457

92049-1159

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

PIPE-BREATHER

92059-061

1
Out of stock

92066

PLUG,DRAIN,10X12

92067-001

1

$3.50

In stock

132

BOLT-FLANGED-SMALL

132G0650

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X60

132G0660

1
Out of stock
