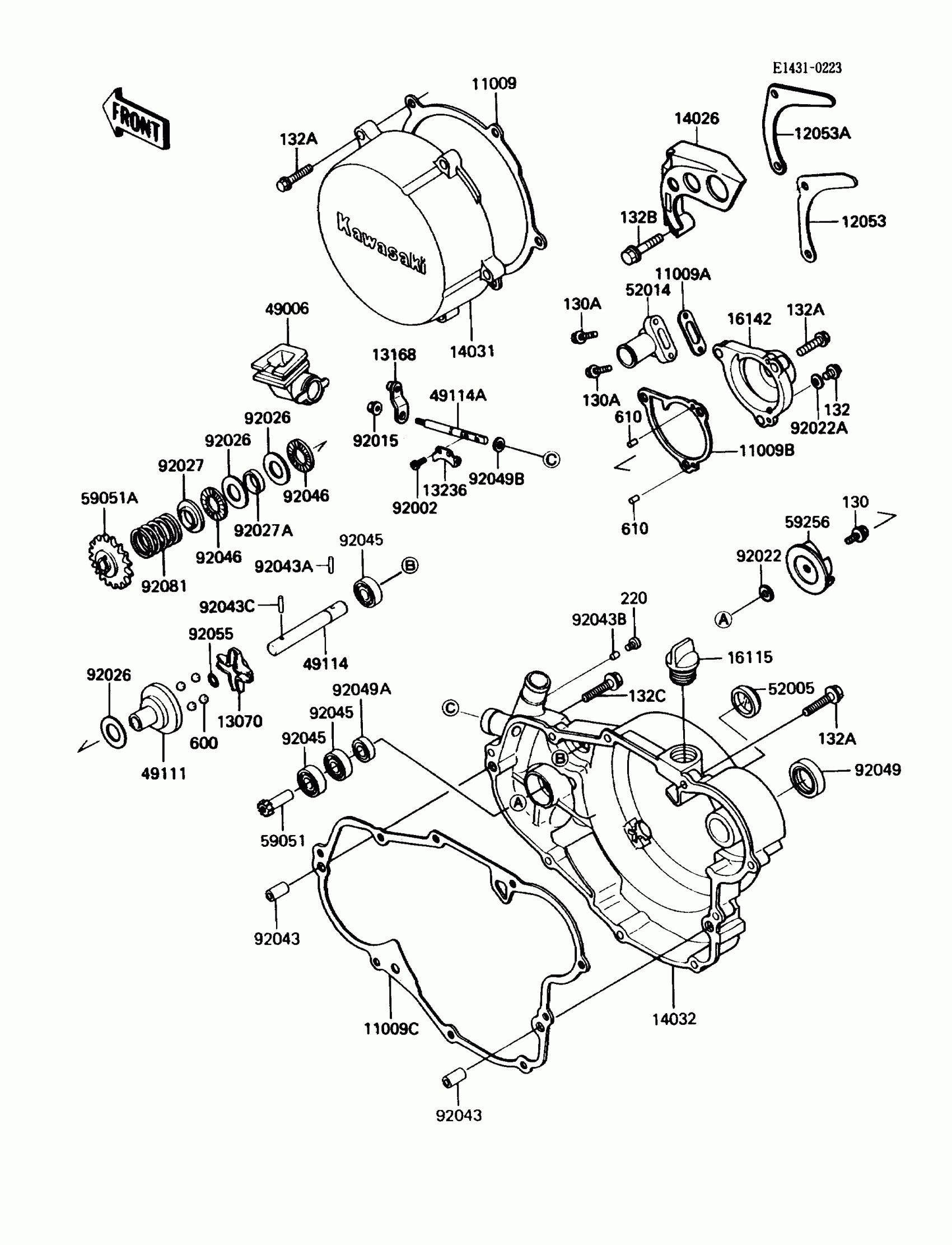

1988 Kawasaki KX500 Engine Cover Diagram
Find the part on the Engine Cover diagram for your 1988 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009
GASKET,GENERATOR COVER
11009-1289
11009A
GASKET,ELBOW
11009-1446
11009B
GASKET,WATER PUMP COVER
11009-1466
11009C
GASKET,CLUTCH COVER
11009-1540
12053
GUIDE-CHAIN
12053-1172
12053A
GUIDE-CHAIN
12053-1206
13168
LEVER,GOVERNOR
13168-1373
13236
LEVER-COMP,GOVERNOR
13236-1182
14026
COVER-CHAIN
14026-1136
59051
GEAR-SPUR,WATER PUMP,11T
59051-1129
92015
NUT,FLANGED,6MM
92015-1193
92022A
WASHER,6.2X11X1
92022-304
92049
SEAL-OIL,SB20285
92049-012
92049A
SEAL-OIL,A9567
92049-1081
92049B
SEAL-OIL,SDO8144
92049-1207
92081
SPRING,GOVERNOR
92081-1934
130
BOLT-FLANGED
130P0516
130A
BOLT-FLANGED
130P0520
132
BOLT-FLANGED-SMALL,6X8
132G0608
132A
BOLT-FLANGED-SMALL
132G0625
132B
BOLT-FLANGED-SMALL,6X30
132G0630
132C
BOLT-FLANGED-SMALL,6X55
132G0655
220
SCREW-PAN-CROS,3X6
220B0306
