1985 Kawasaki KX500 Kickstarter Mechanism Diagram

← All diagrams

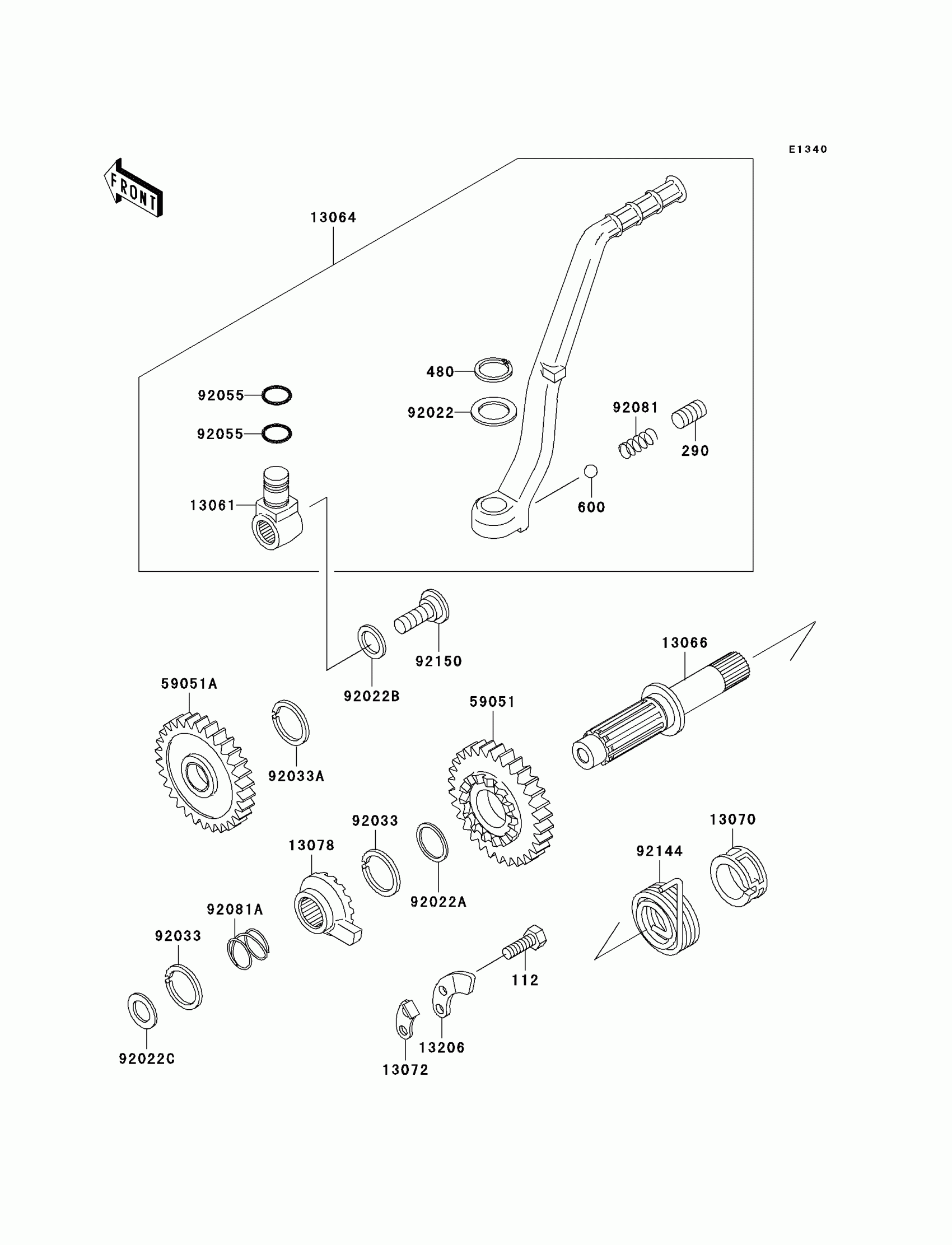

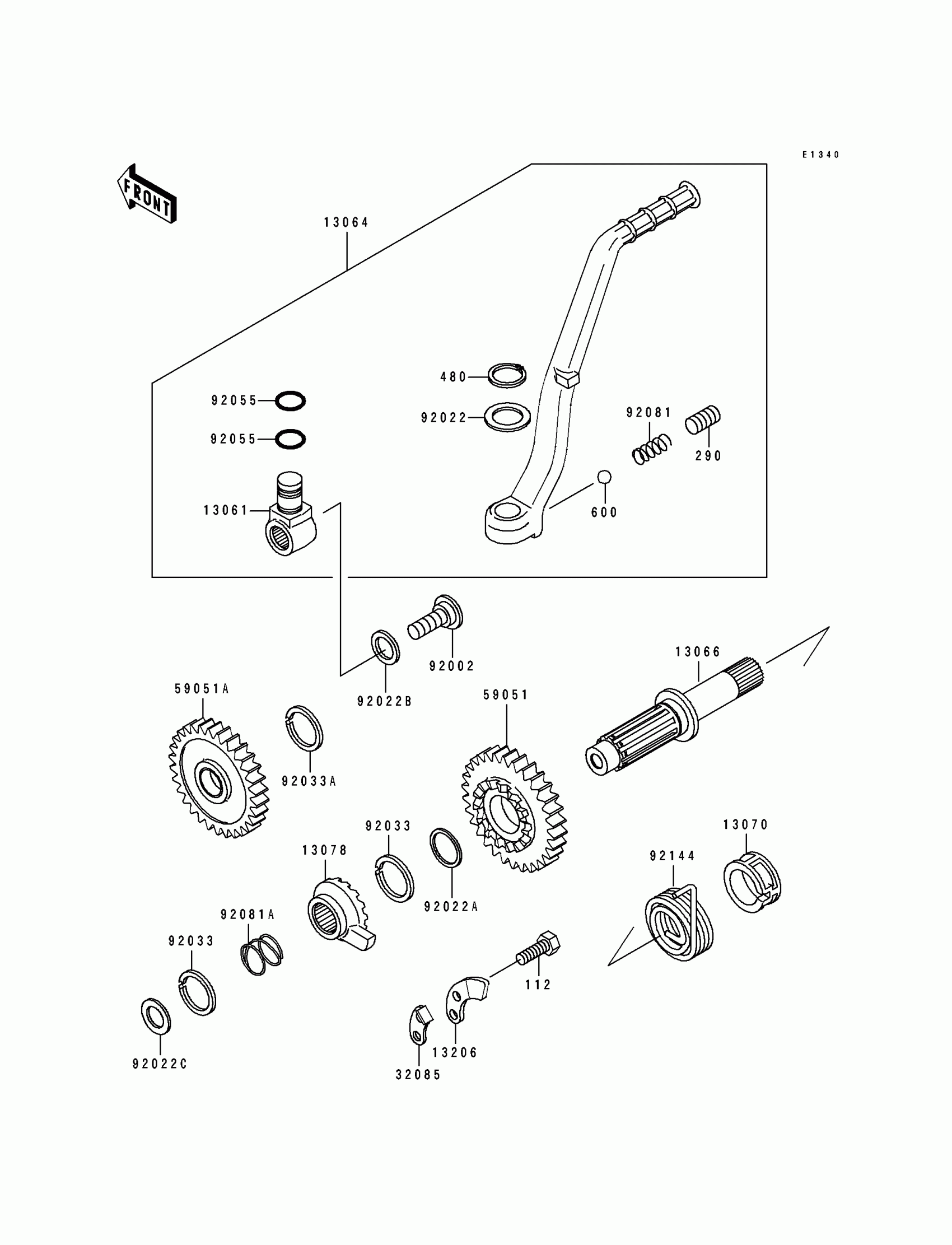

Find the part on the Kickstarter Mechanism diagram for your 1985 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki KX500 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,KICK PEDAL

13061-1139

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

13064-1118

1
Out of stock

13066

SHAFT-KICK

13066-1056

1
Out of stock

13070

GUIDE,KICK SPRING

13070-011

1

$9.49

In stock

13078

RATCHET

13078-007

1
Out of stock

13206

GUIDE-KICK

13206-1003

1
Out of stock

32085

STOPPER,KICKSTARTER

13072-014

1
Out of stock

59051

1

$113.47

In stock

59051A

GEAR-SPUR,IDLE,27T

59051-1107

1

$169.82

In stock

92001

BOLT,FLANGED,8X17

92001-1371

1
Out of stock

92022

WASHER,16.3X24X1

92022-1205

1
Out of stock

92022A

WASHER,25.3X30X0.5

92022-159

1

$8.37

In stock

92022B

WASHER,20.5X25.5X0.5

92022-252

1
Out of stock

92033

RING-SNAP,24MM

92033-026

1

$6.98

In stock

92033A

RING-SNAP,18MM

92033-029

1

$7.79

In stock

92055

RING-O,10X1.5

92055-061

1

$3.80

In stock

92081

SPRING,KICK PEDAL

92081-020

1

$3.39

In stock

92081A

SPRING

92081-097

1

$11.29

In stock

92081B

SPRING,KICKSTARTER

92082-003

1

$29.01

In stock

112

BOLT-UPSET

112G0618

1
Out of stock

290

SCREW-SET-SOCKET

290P0816

1
Out of stock

480

1

$1.85

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
