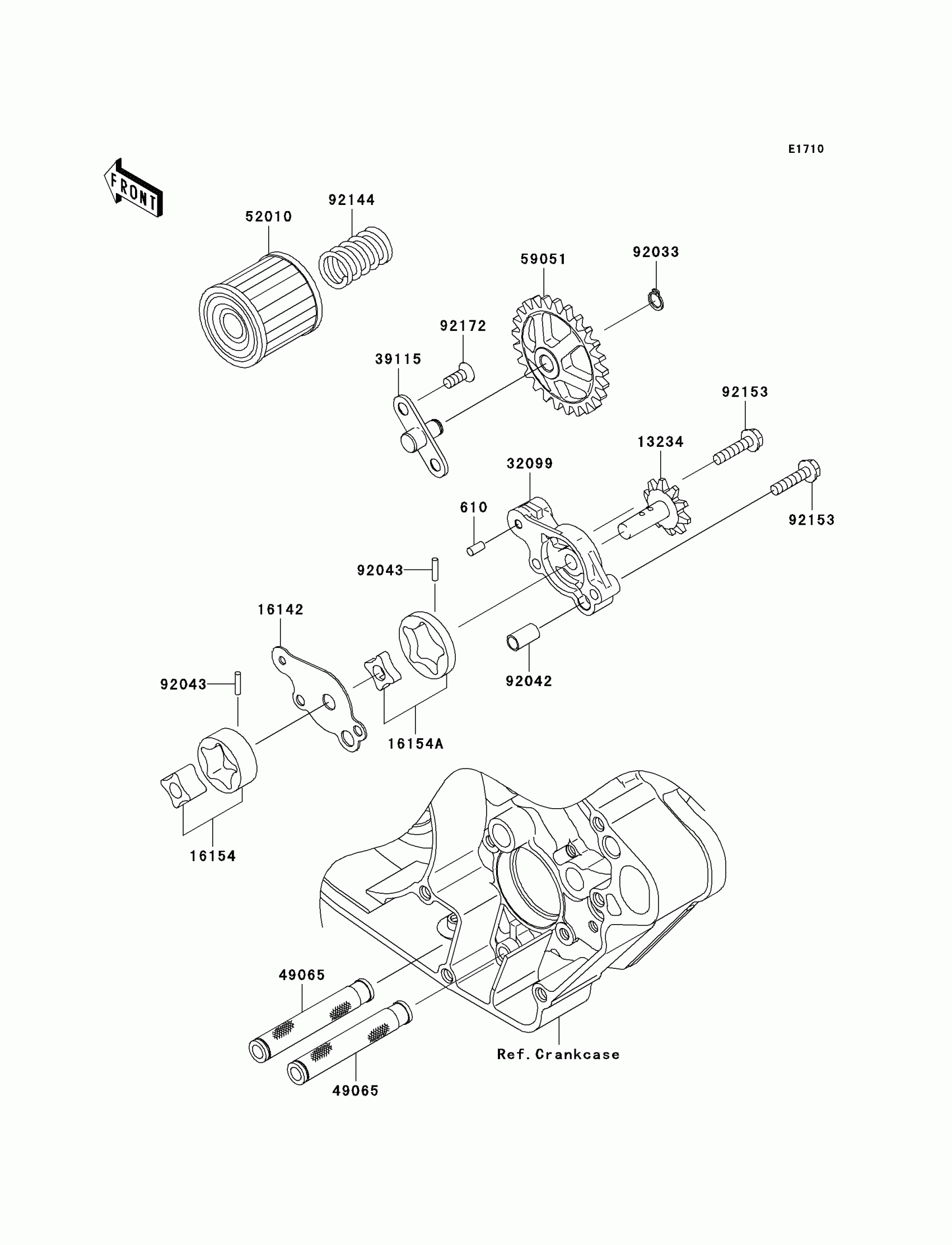

Find the part on the Oil Pump diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X8

610A0408

1

$3.43

In stock

13234

SHAFT-COMP,OIL PUMP

13234-0005

1

$84.43

In stock

16142

COVER-PUMP

16142-0003

1

$6.11

In stock

16154

ROTOR-PUMP,SCAVENGE

16154-0020

1
Out of stock

16154A

ROTOR-PUMP,FEED

16154-0023

1
Out of stock

32099

CASE,OIL PUMP

32099-0001

1
Out of stock

39115

1

$24.10

In stock

49065

FILTER-OIL

49065-0005

1

$20.25

In stock

52010

ELEMENT-OIL FILTER

52010-0001

1

$9.54

In stock

59051

1

$67.78

In stock

92033

RING-SNAP,8MM

92033-1039

1

$3.39

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,2.5X11.8

92043-0018

1
Out of stock

92144

SPRING

92144-1761

1

$3.69

In stock

92153

BOLT,5X22

92153-0749

1
Out of stock

92172

SCREW,6X14

92172-0087

1

$2.00

In stock
