2004 Kawasaki KX250F Kickstarter Mechanism Diagram

← All diagrams

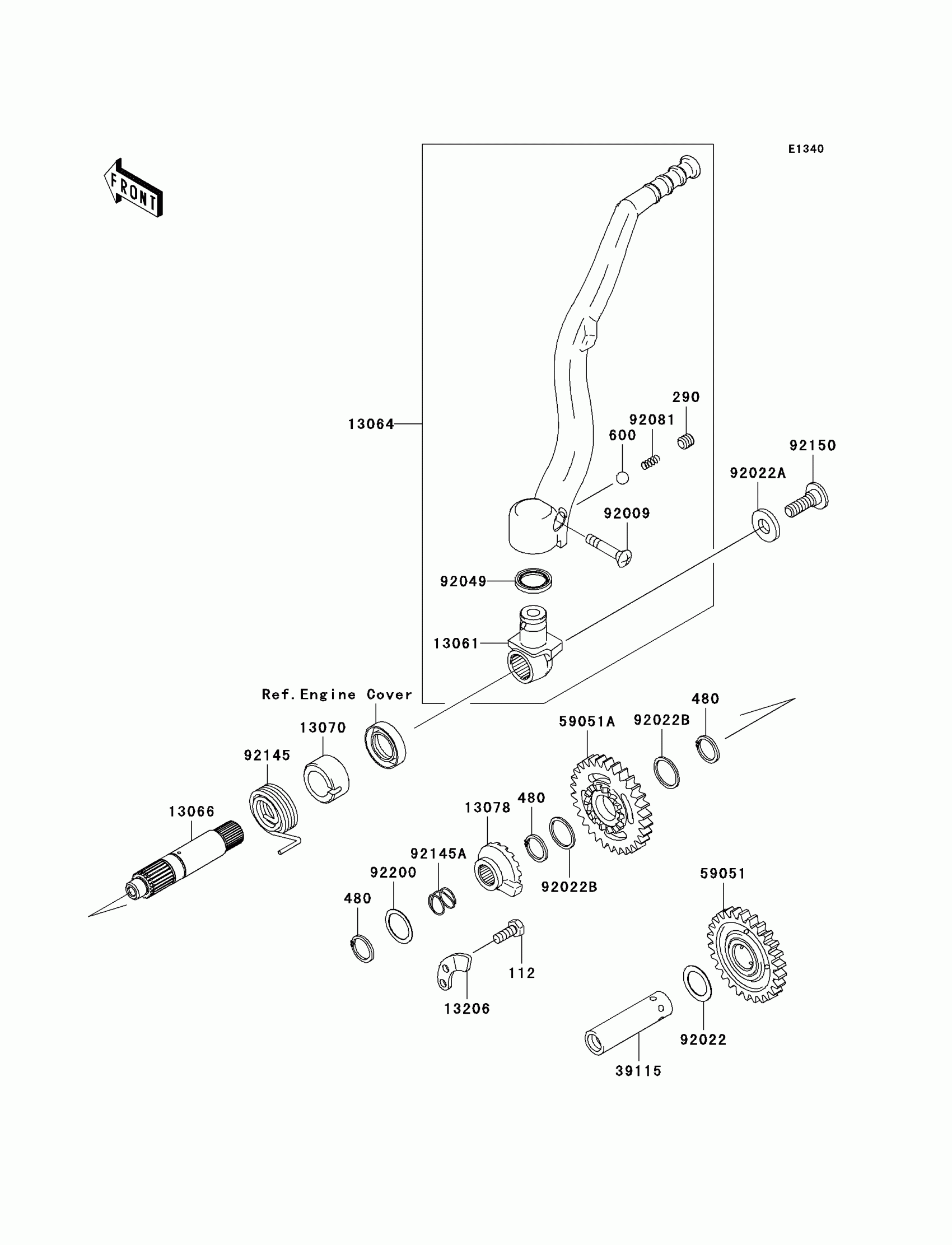

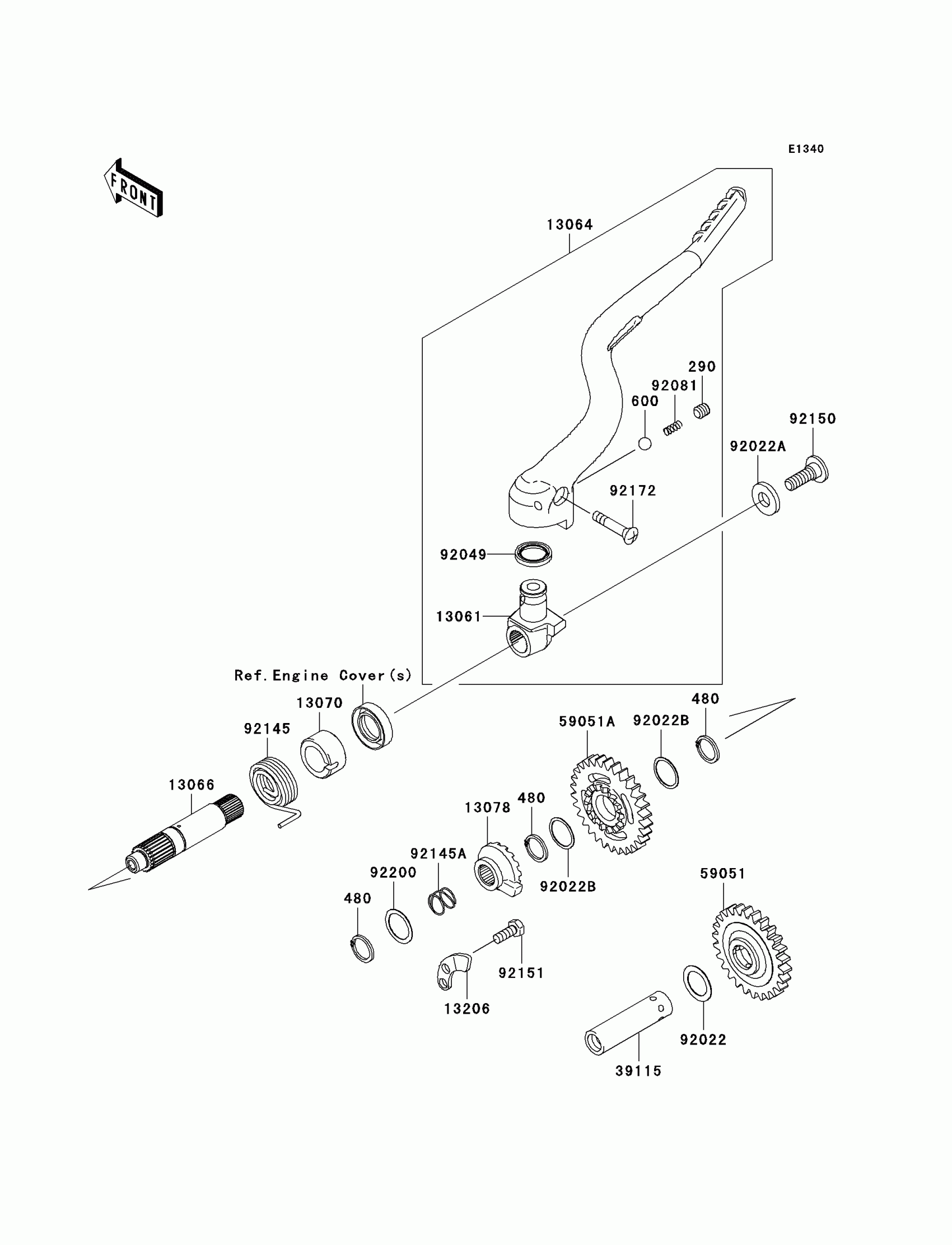

Find the part on the Kickstarter Mechanism diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X16

112G0616

1
Out of stock

290

SCREW-SET-SOCKET,8X8

290P0808

1
Out of stock

480

1

$1.14

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

13061

BOSS

13061-0052

1

$90.98

In stock

13064

LEVER-ASSY-KICK

13064-0015

1

$150.58

In stock

13066

SHAFT-KICK

13066-0004

1

$113.05

In stock

13070

GUIDE

13070-0011

1

$18.46

In stock

13078

RATCHET

13078-0005

1

$83.67

In stock

13206

GUIDE-KICK

13206-0003

1

$10.64

In stock

39115

SHAFT-IDLER,KICK

39115-0005

1
Out of stock

59051

1

$130.58

In stock

59051A

1

$130.19

In stock

92009

SCREW,6X27

92009-1607

1
Out of stock

92022

WASHER,17.3X25X0.5

92022-1614

1

$4.00

In stock

92022A

WASHER,10X22X3.2

92022-1944

1
Out of stock

92022B

WASHER,18.3X22X0.5

92022-271

1
Out of stock

92049

SEAL-OIL,KICK PEDAL

92049-1387

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1

$3.39

In stock

92145

SPRING,KICK STARTER

92145-0051

1

$24.10

In stock

92145A

SPRING

92145-0162

1

$12.07

In stock

92150

BOLT,8X25

92150-1858

1

$6.24

In stock

92200

WASHER,18.3X24X0.5

92200-0075

1
Out of stock
