2004 Kawasaki KX250F Muffler Diagram

← All diagrams

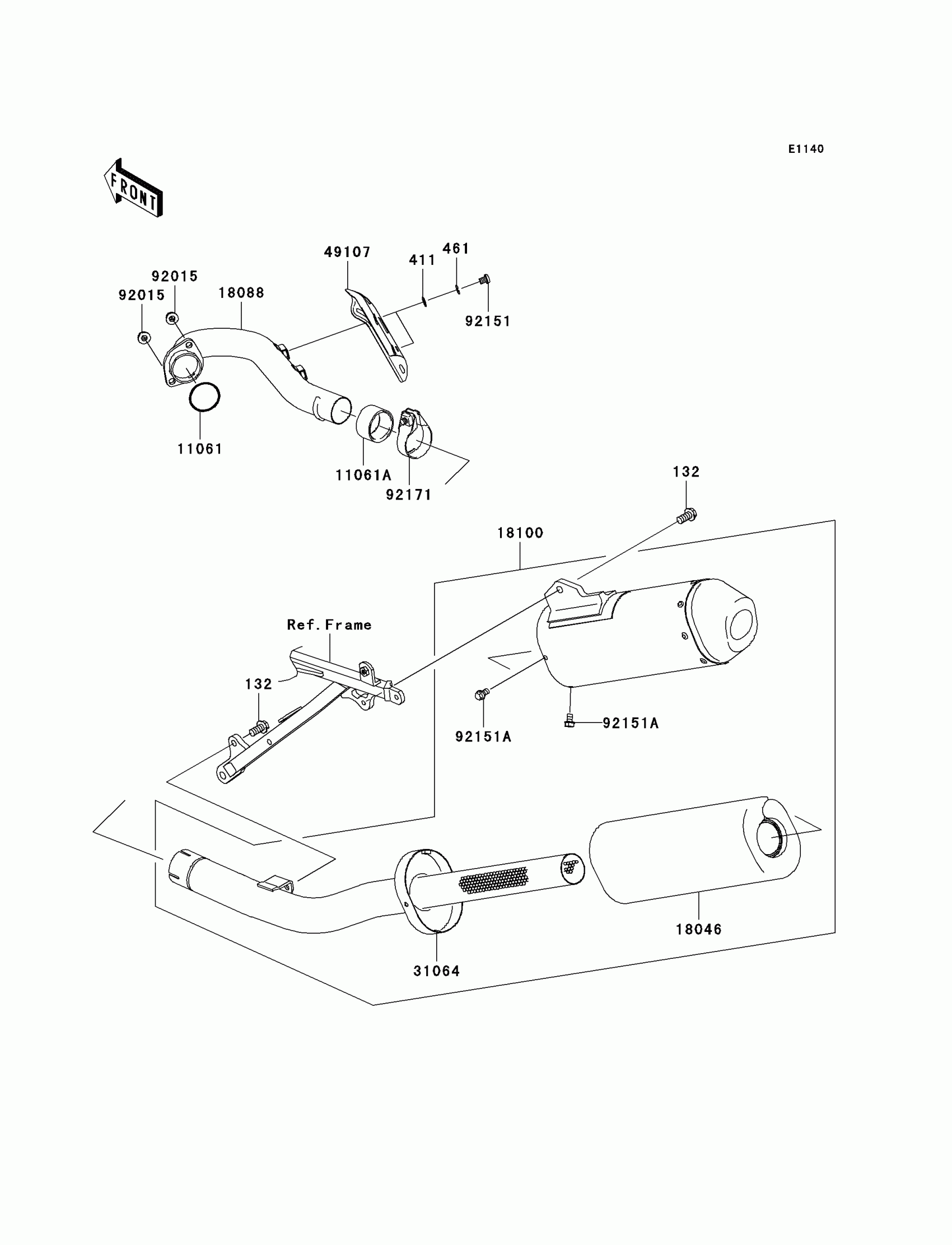

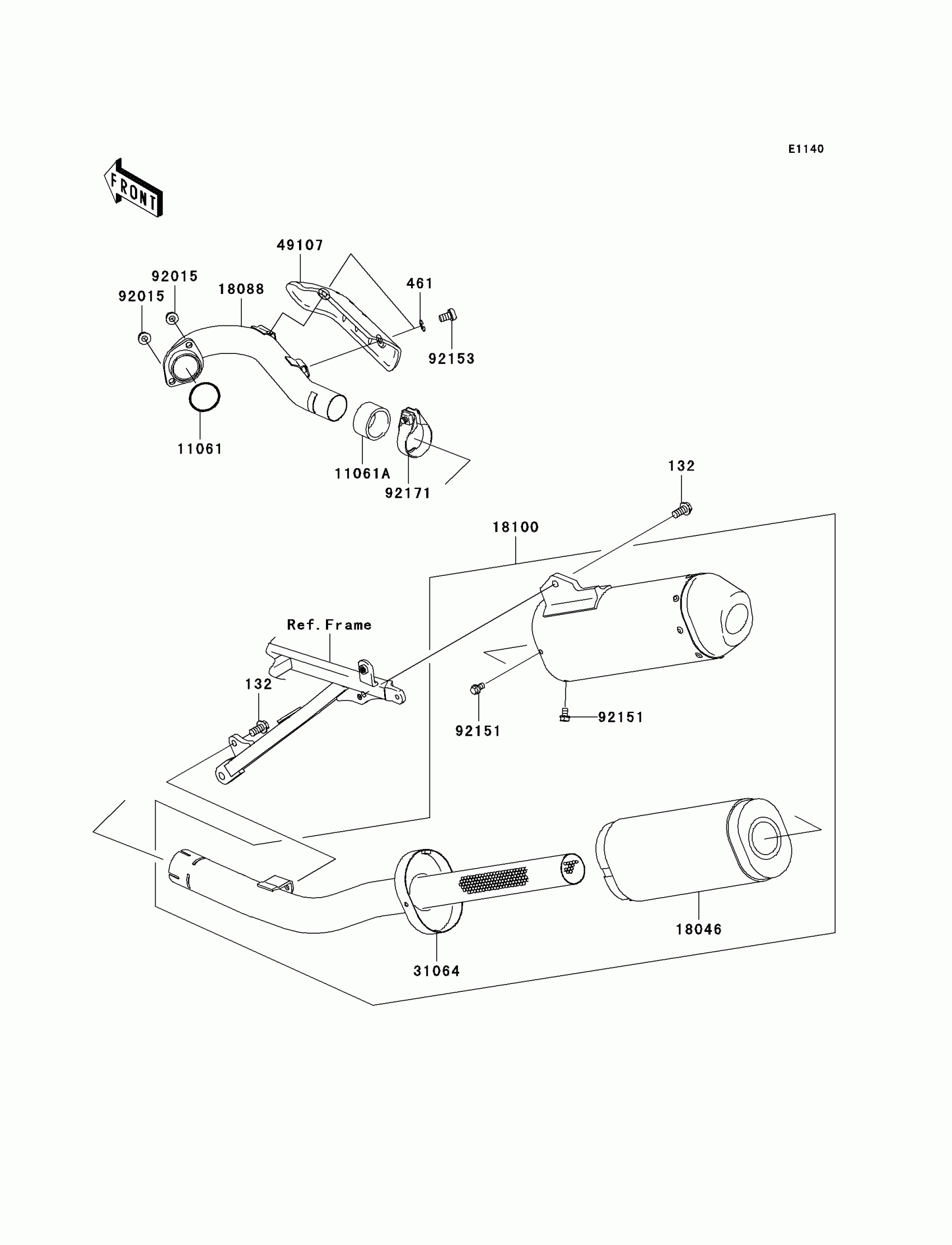

Find the part on the Muffler diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X18

132L0818

1
Out of stock

461

1

$0.97

In stock

11061

GASKET,EX PIPE

11061-0027

1

$6.05

In stock

11061A

GASKET

11061-0101

1

$34.70

In stock

18046

WOOL

18046-0022

1

$190.61

In stock

18088

PIPE-EXHAUST

18088-0106

1
Out of stock

18100

BODY-ASSY-MUFFLER

18100-0009

1

$756.27

In stock

31064

PIPE-COMP

31064-0022

1

$554.05

In stock

49107

COVER-EXHAUST PIPE

49107-0013

1

$53.48

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92151

BOLT,FLANGED,6X10

92151-1822

1

$1.51

In stock

92153

BOLT,6X8

92153-0578

1
Out of stock

92171

CLAMP

92171-0304

1

$20.03

In stock
