2004 Kawasaki KX250F Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

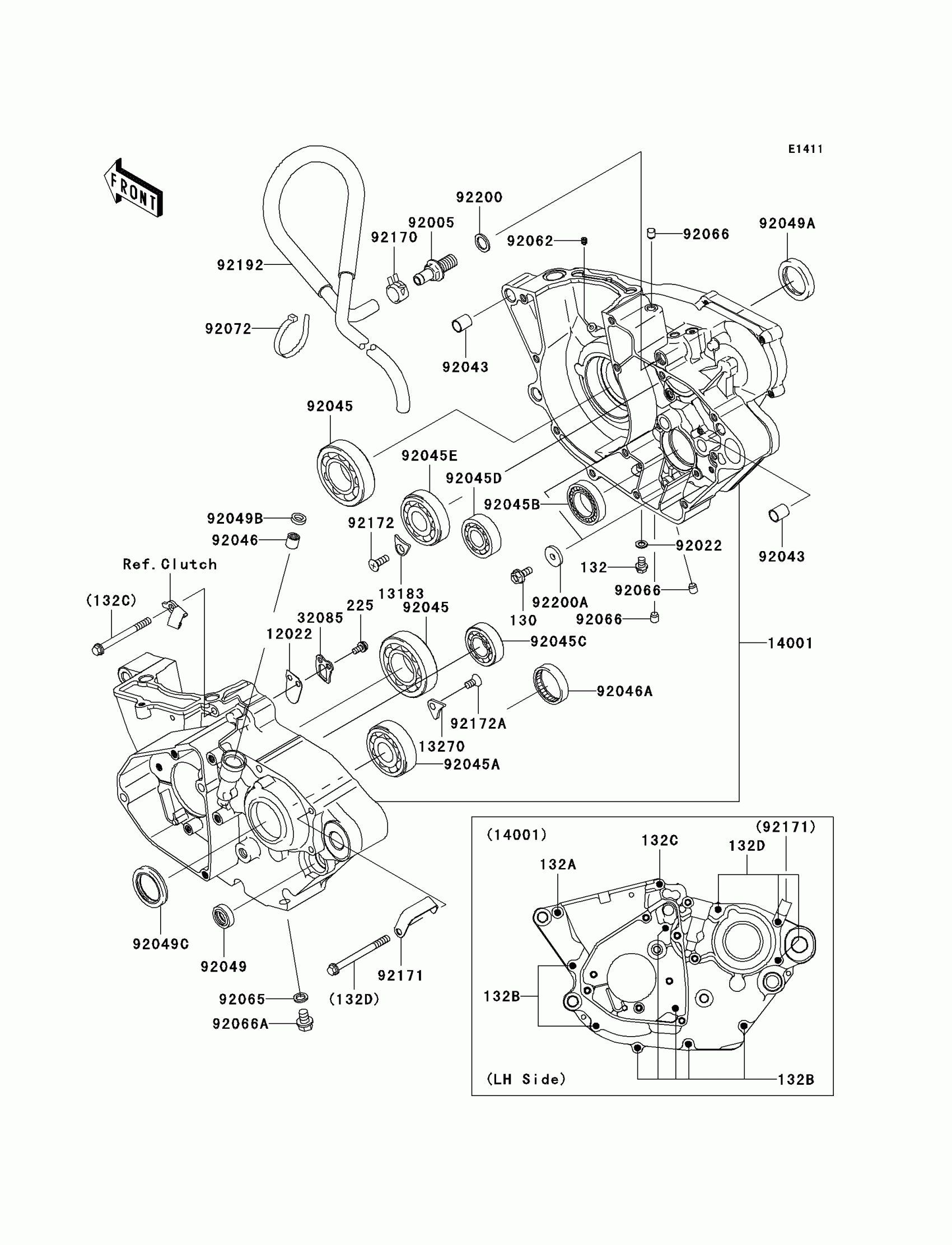

2004 Kawasaki KX250F Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130P0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X8

132G0608

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X60

132G0660

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X65

132G0665

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X70

132G0670

1
Out of stock

225

1

$1.22

In stock

12022

VALVE-REED

12022-0001

1

$9.44

In stock

13183

PLATE

13183-1182

1

$3.72

In stock

13270

PLATE

13270-1638

1
Out of stock

14001

SET-CRANKCASE

14001-0032

1
Out of stock

32085

STOPPER,VALVE-REED

32085-0011

1

$4.10

In stock

92005

FITTING,BREATHER

92005-0014

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92045

1

$60.28

In stock

92045A

1

$70.67

In stock

92045B

BEARING-BALL,6905Z

92045-1058

1

$30.94

In stock

92045C

1

$23.73

In stock

92045D

BEARING-BALL,TMB203

92045-1291

1

$19.42

In stock

92045E

1

$37.11

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

1
Out of stock

92049

SEAL-OIL,SD2 14 22 6-1 NS

92049-0015

1
Out of stock

92049A

SEAL-OIL,TC 30 40 7

92049-0030

1
Out of stock

92049B

SEAL-OIL,AG0353-F0

92049-1262

1
Out of stock

92049C

SEAL-OIL

92049-1478

1
Out of stock

92062

NOZZLE,5X6,SILVER

92062-1086

1

$3.69

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066A

PLUG,DRAIN

92066-1437

1

$5.15

In stock

92072

BAND,L=152

92072-3874

1

$3.75

In stock

92170

CLAMP

92170-1938

1

$2.97

In stock

92171

CLAMP

92171-0222

1

$8.37

In stock

92172

SCREW,6X14

92172-0087

1

$2.00

In stock

92172A

SCREW,6X8

92172-0109

1

$1.69

In stock

92192

TUBE,BREATHER

92192-0102

1
Out of stock

92200

WASHER,12.5X18X1.6

92200-0087

1
Out of stock

92200A

WASHER,6X20X3.2

92200-0120

1
Out of stock
