2004 Kawasaki KX250F Engine Cover Diagram

← All diagrams

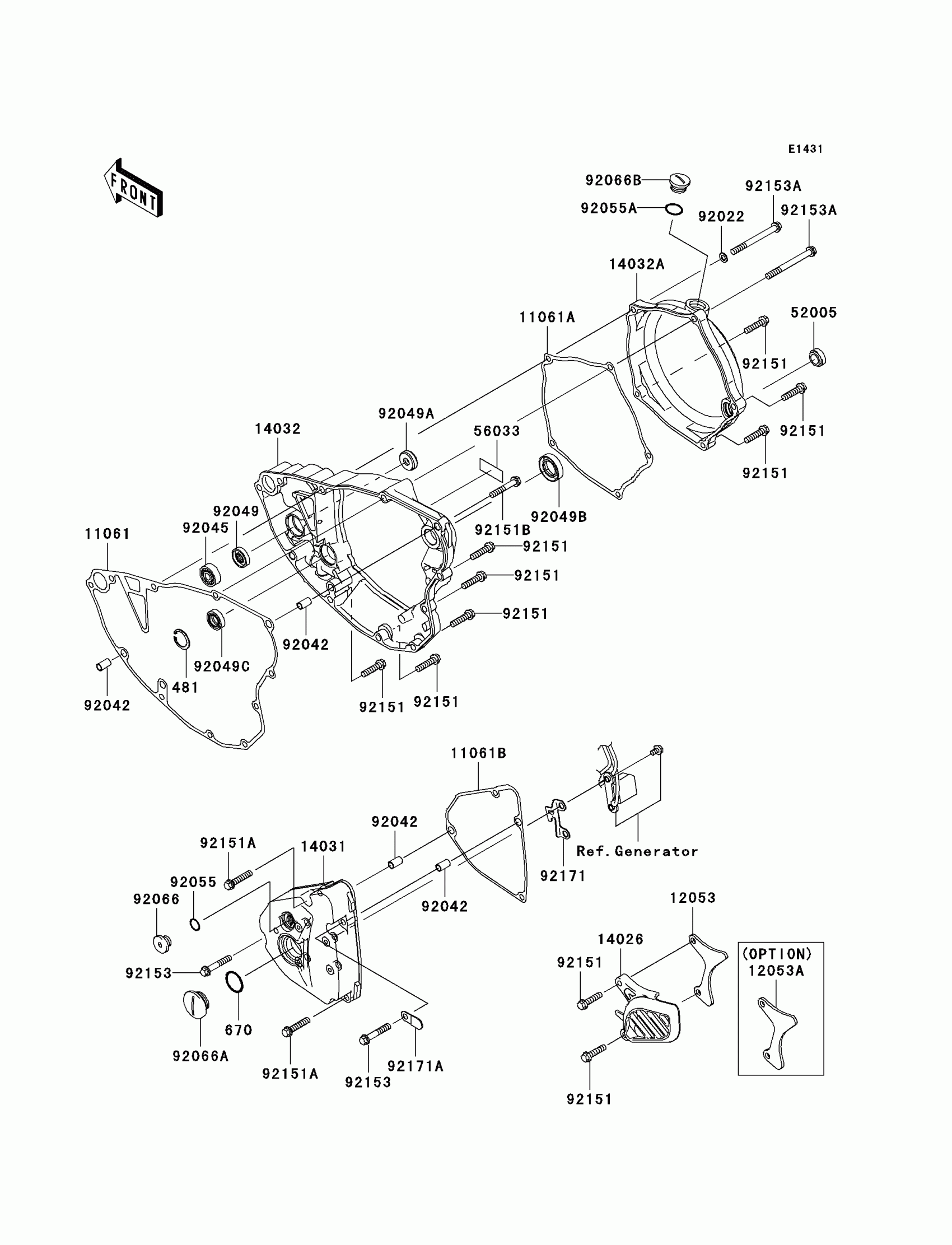

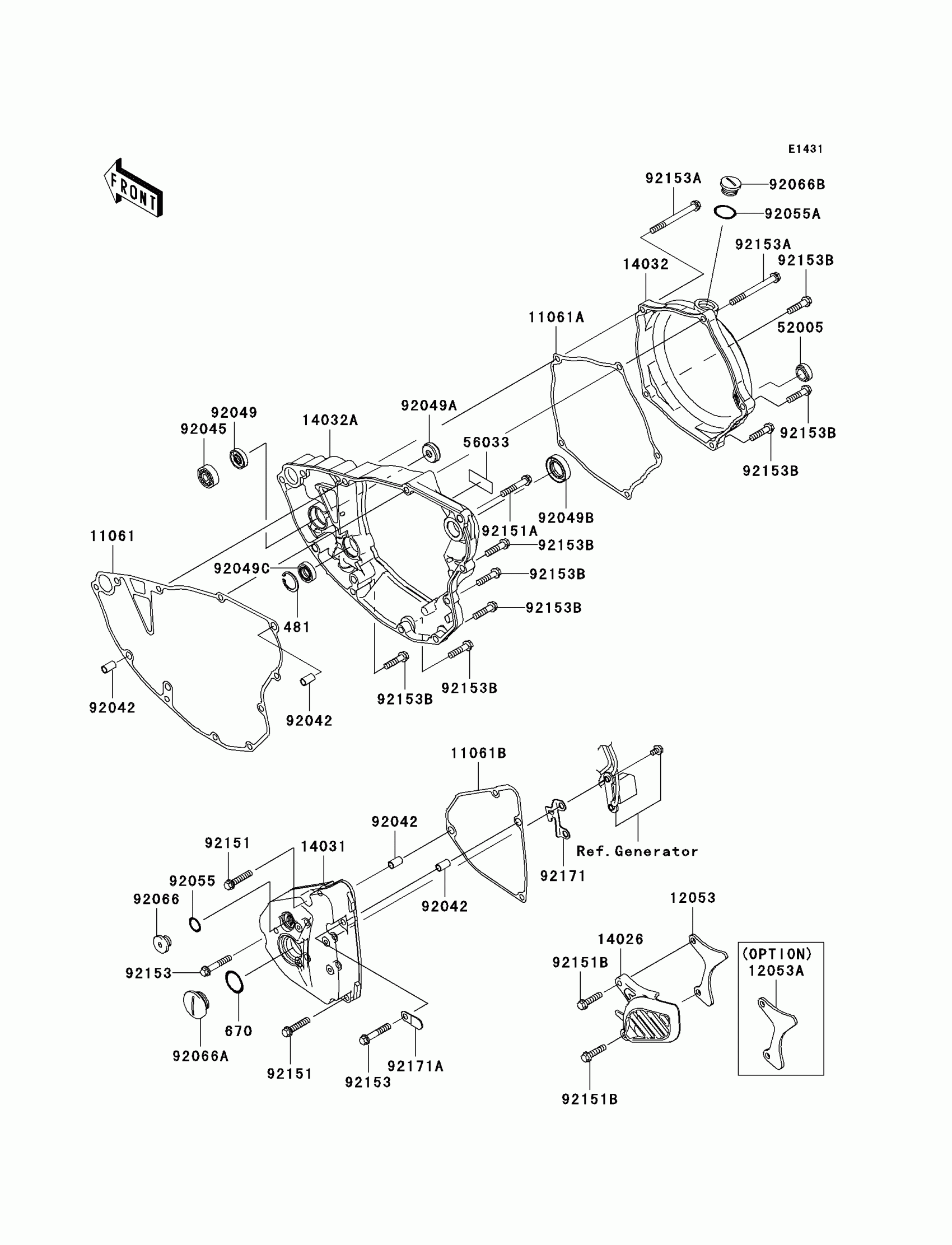

Find the part on the Engine Cover diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

1

$0.85

In stock

670

O RING,22MM

670B2022

1

$3.72

In stock

11061

GASKET,CLUTCH COVER,INNER

11061-0030

1
Out of stock

11061A

1

$24.80

In stock

11061B

GASKET,GENERATOR COVER

11061-0032

1
Out of stock

12053

GUIDE-CHAIN,13T

12053-0011

1

$12.15

In stock

12053A

GUIDE-CHAIN,12T

12053-0018

1

$12.15

In stock

14026

COVER-CHAIN

14026-0001

1

$25.02

In stock

14031

COVER-GENERATOR

14031-0019

1
Out of stock

14032

COVER-CLUTCH,INNER

14032-0011

1
Out of stock

14032A

COVER-CLUTCH,OUTER

14032-0035

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

56033

1

$5.75

In stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

BEARING-BALL,#628

92045-1123

1

$21.64

In stock

92049

SEAL-OIL,SD 8 22 5 ZS

92049-0016

1
Out of stock

92049A

SEAL-OIL

92049-0021

1
Out of stock

92049B

SEAL-OIL,SB18307

92049-013

1
Out of stock

92049C

SEAL-OIL,TC13225.5

92049-1519

1
Out of stock

92055

RING-O,ID=13.8

92055-1141

1

$3.12

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

PLUG,12X8

92066-0014

1
Out of stock

92066A

PLUG

92066-1414

1

$15.64

In stock

92066B

PLUG

92066-1456

1

$13.90

In stock

92151

BOLT,6X25

92151-1130

1

$2.06

In stock

92151A

BOLT,6X30

92151-1134

1

$1.81

In stock

92151B

BOLT,6X35

92151-1135

1

$3.33

In stock

92153

BOLT,6X35

92153-0668

1
Out of stock

92153A

BOLT,6X65

92153-0697

1
Out of stock

92171

CLAMP,HARNESS

92171-0195

1
Out of stock

92171A

CLAMP

92171-0295

1
Out of stock
