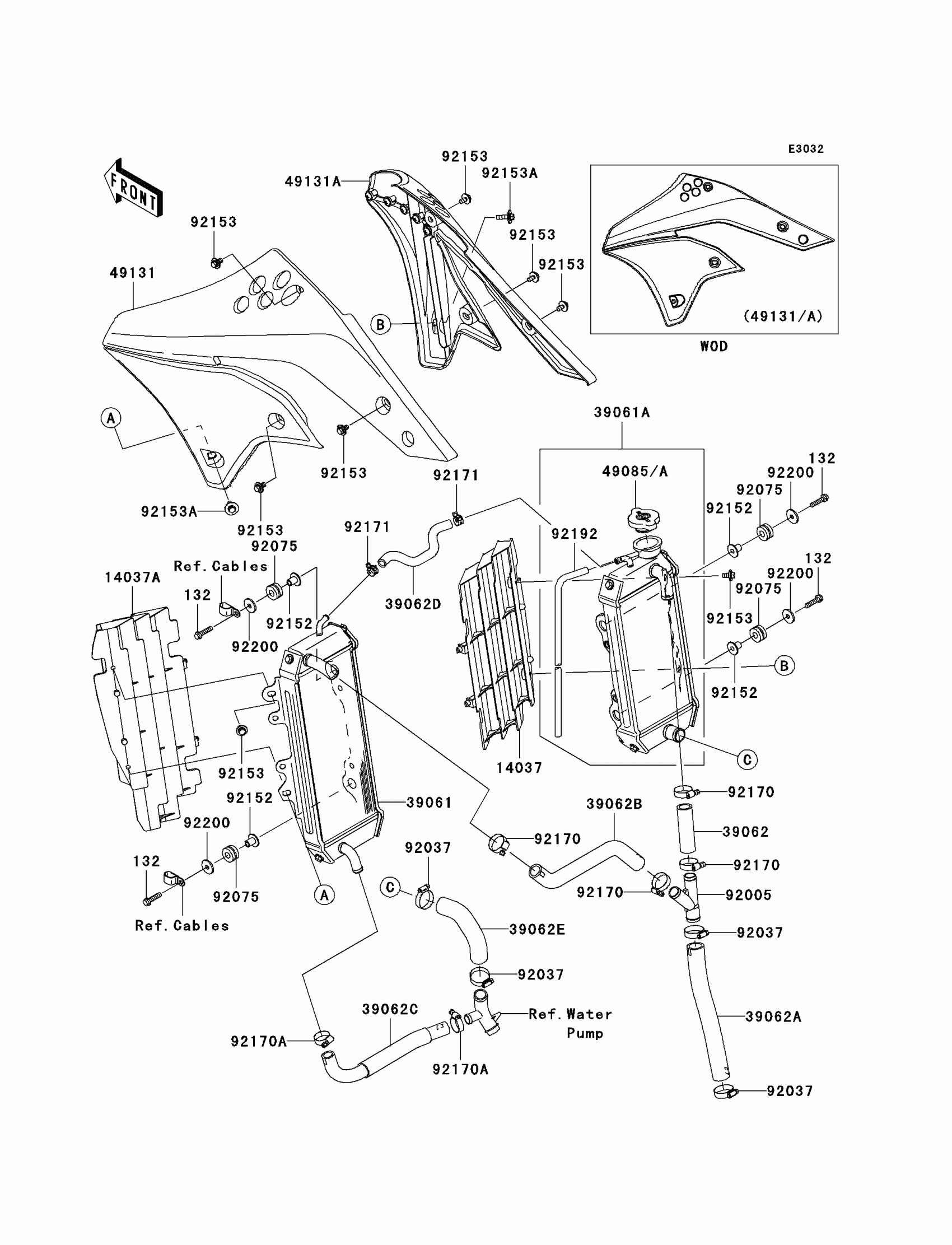

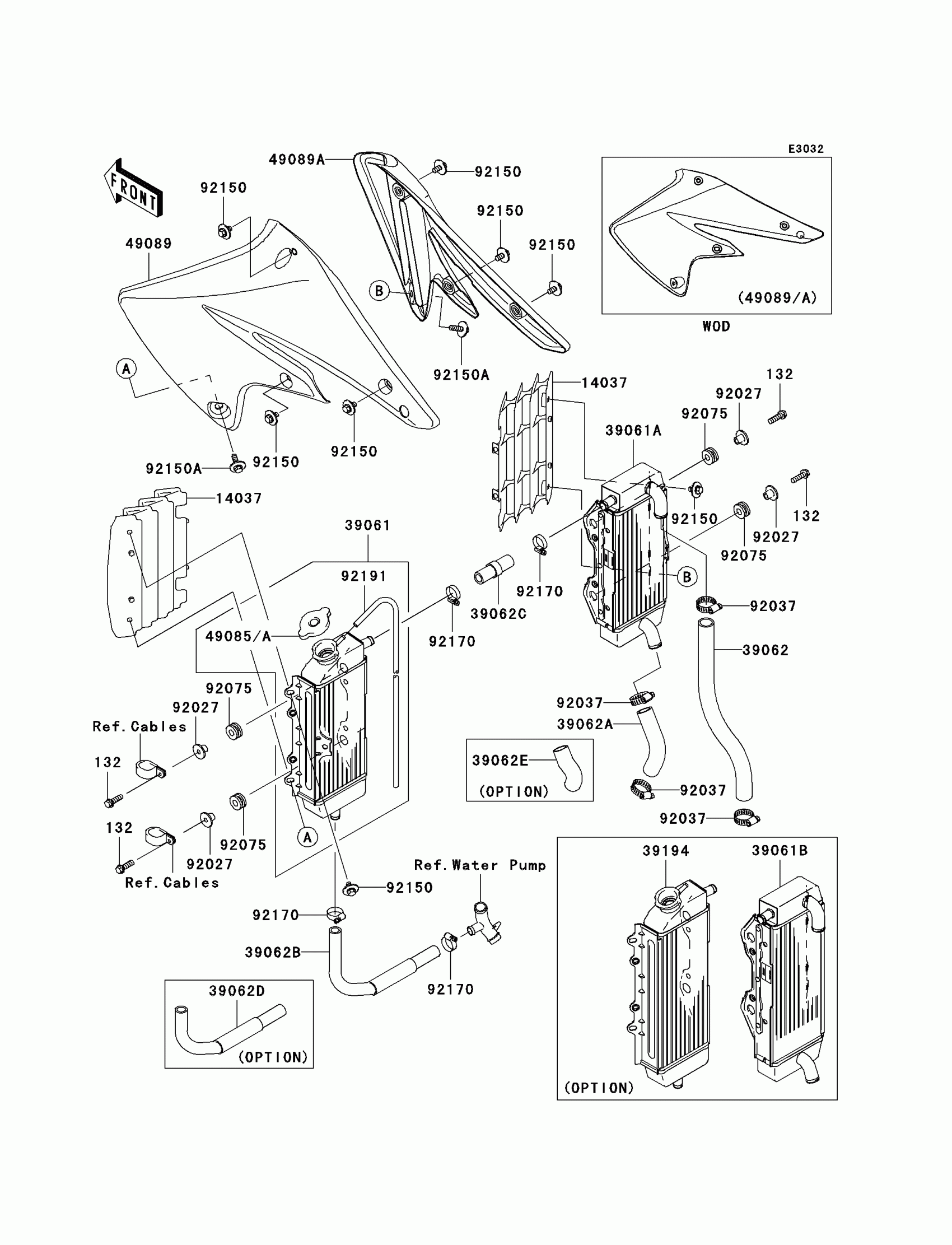

Find the part on the Radiator diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132L0620

1
Out of stock

14037

SCREEN,WHITE

14037-0012-RZ

1

$24.32

In stock

39061

RADIATOR-ASSY,LH

39061-0003

1

$482.07

In stock

39061A

1

$428.17

In stock

39061B

1

$434.43

In stock

39062

1

$42.08

In stock

39062A

1

$15.80

In stock

39062B

1

$38.32

In stock

39062C

1

$8.53

In stock

39062D

1

$35.90

In stock

39062E

1

$17.59

In stock

39194

1

$464.52

In stock

49085

1

$45.73

In stock

49085A

1

$51.50

In stock

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0005-6W

1

$80.23

In stock

49089A

SHROUD-ENGINE,RH,L.GREEN

49089-0006-6W

1

$80.23

In stock

92027

COLLAR

92027-194

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92075

1

$3.72

In stock

92150

BOLT,6X12

92150-1435

1

$3.43

In stock

92150A

BOLT,6X20

92150-1801

1

$5.21

In stock

92170

CLAMP

92170-1283

1

$10.76

In stock

92191

TUBE,6X9X700

92191-1211

1

$7.65

In stock
