2025 Kawasaki KX112 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

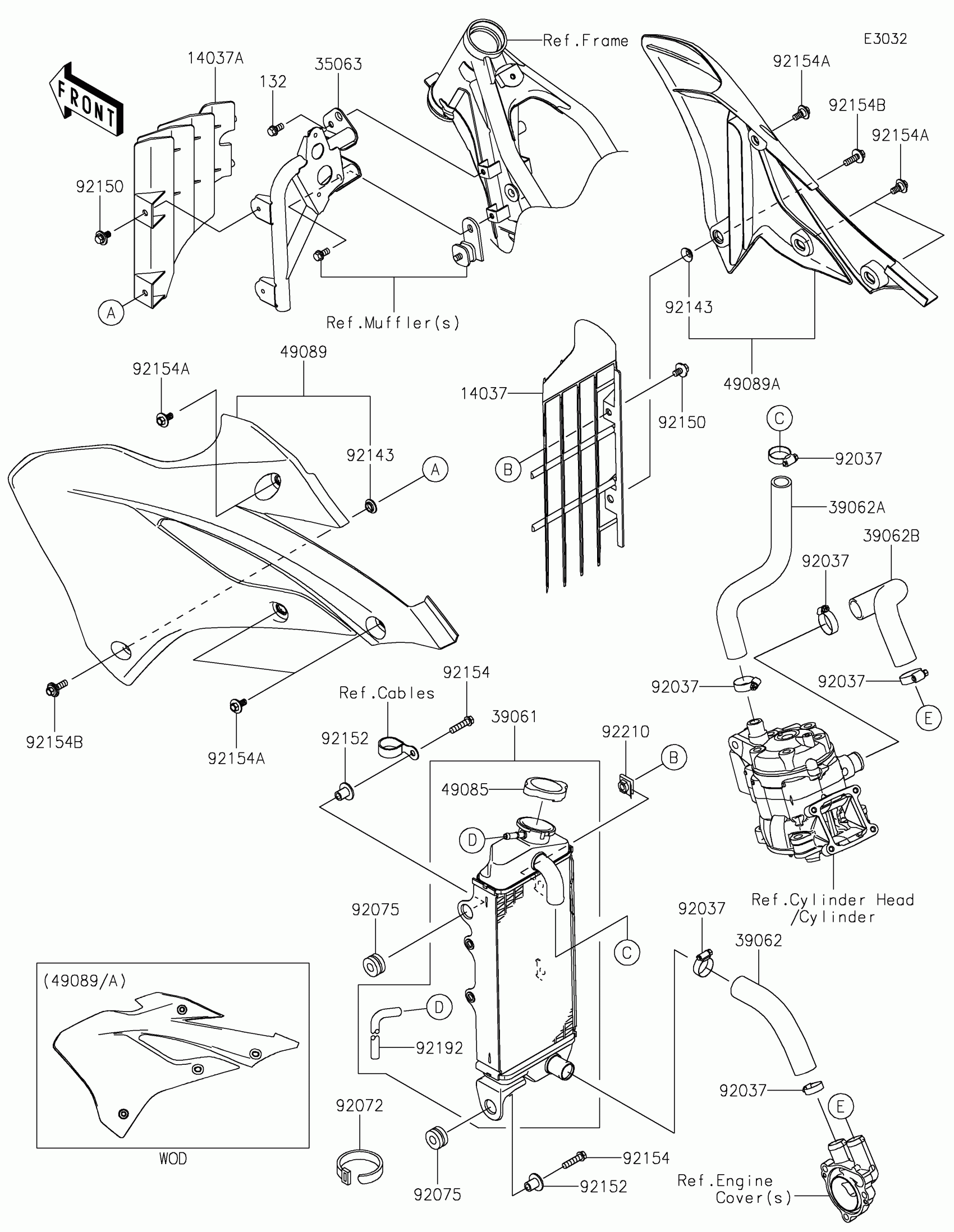

2025 Kawasaki KX112 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037

SCREEN,RH,EBONY

14037-0748-6C

1

$40.73

In stock

14037A

SCREEN,LH,EBONY

14037-1282-6C

1

$40.73

In stock

35063

STAY,LH,SHROUD

35063-1577

1

$73.18

In stock

39061

RADIATOR-ASSY

39061-0592

1

$440.47

In stock

39062

1

$12.14

In stock

39062A

1

$34.85

In stock

39062B

1

$24.25

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

49089

SHROUD-ENGINE,LH,L.GREEN

49089-1156-290

1

$76.60

In stock

49089A

SHROUD-ENGINE,RH,L.GREEN

49089-1157-290

1

$85.78

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

92075

1

$3.72

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X12

92150-1435

1

$3.43

In stock

92152

COLLAR

92152-0666

1

$5.35

In stock

92154

BOLT,FLANGED,6X25

92154-0520

1

$2.68

In stock

92154A

BOLT,FLANGED,6X9

92154-0546

1

$2.97

In stock

92154B

BOLT,FLANGED,6X20

92154-1268

1

$1.10

In stock

92192

TUBE,6X9X700

92192-1334

1
Out of stock

92210

NUT,CLIP,6MM

92210-0867

1
Out of stock

132

1

$1.12

In stock
