2025 Kawasaki KX112 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

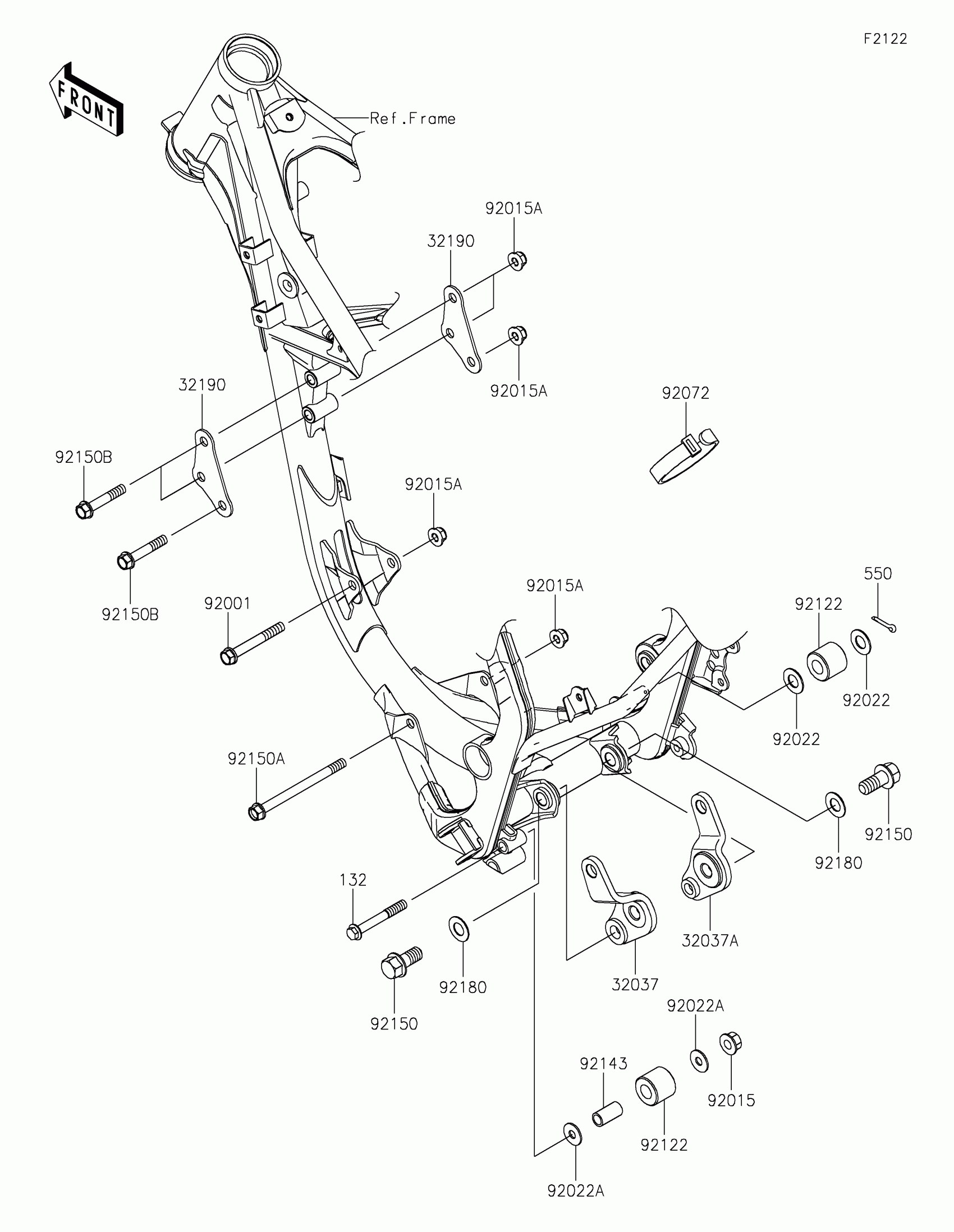

2025 Kawasaki KX112 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32037

1

$48.79

In stock

32037A

1

$48.79

In stock

32190

BRACKET-ENGINE,HEAD

32190-0863

1

$17.25

In stock

92001

BOLT,FLANGED,8X63

92001-1006

1

$8.54

In stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92015A

NUT,8MM

92015-1432

1

$5.21

In stock

92022

WASHER

92022-107

1

$2.20

In stock

92022A

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

92072

BAND,L=140

92072-1293

1

$5.61

In stock

92122

ROLLER,CHAIN GUIDE

92122-1213

1

$11.98

In stock

92143

COLLAR,9.5X12.7X25

92143-1432

1

$5.84

In stock

92150

BOLT,FLANGED,12X27

92150-1359

1

$6.24

In stock

92150A

BOLT,FLANGED,8X105

92150-1482

1

$7.86

In stock

92150B

BOLT,FLANGED,8X45

92150-1487

1

$5.21

In stock

92180

SHIM,12.5X24X0.5

92180-1060

1

$3.53

In stock

132

1

$4.46

In stock

550

PIN-COTTER,2.5X18

550AA2518

1

$0.61

In stock
