2025 Kawasaki KX112 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

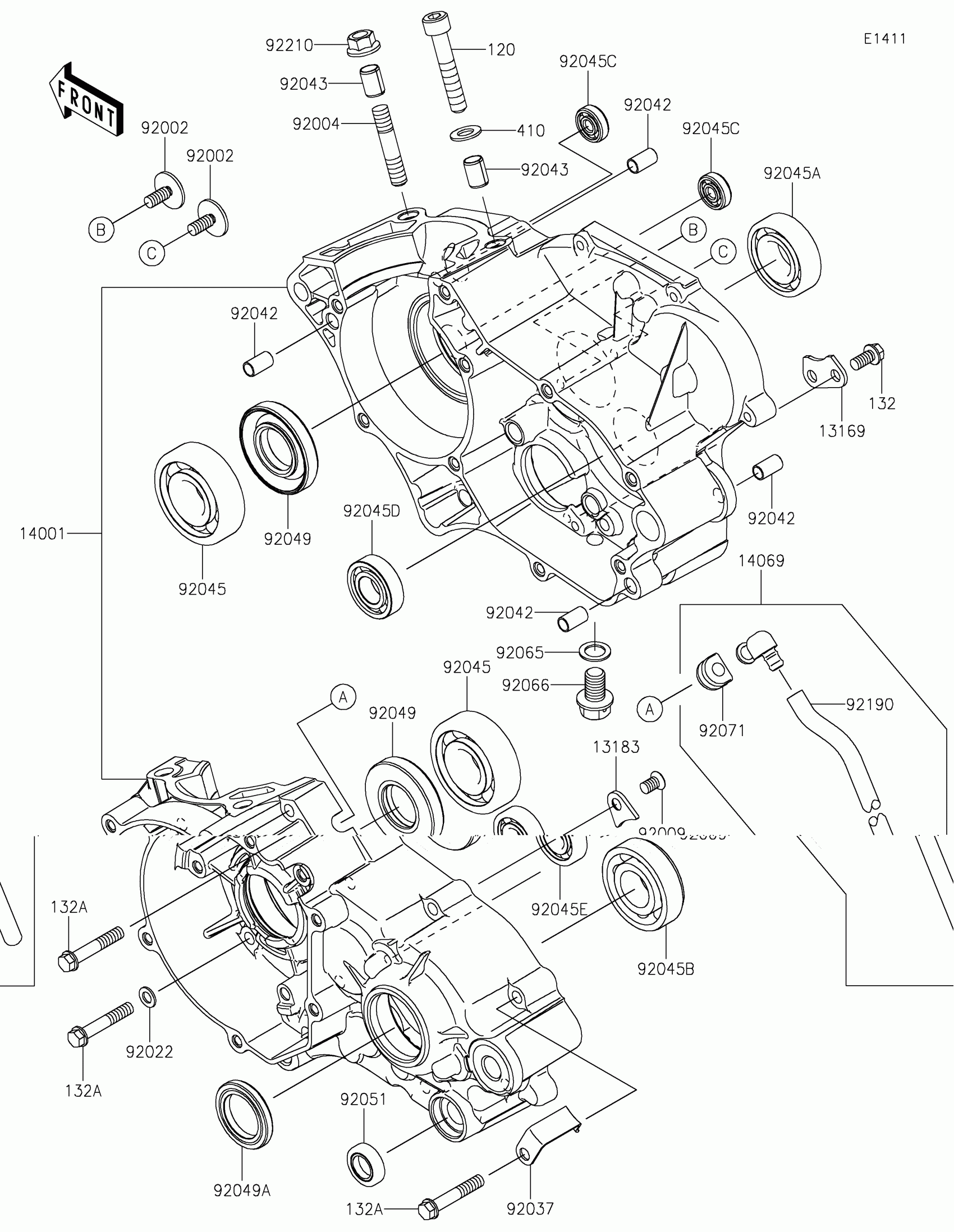

2025 Kawasaki KX112 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13169

PLATE,CHANGE DRUM

13169-012

1

$15.44

In stock

13183

PLATE

13183-1182

1

$3.72

In stock

14001

SET-CRANKCASE

14001-0736

1

$543.61

In stock

14069

BREATHER

14069-1062

1

$22.77

In stock

92002

BOLT,6X16

92002-1659

1
Out of stock

92004

STUD,8X28.5

92004-1252

1
Out of stock

92009

SCREW,6X10

92009-1563

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92037

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92045

1

$27.96

In stock

92045A

1

$22.24

In stock

92045B

BEARING-BALL,6204

92045-1226

1

$23.97

In stock

92045C

BEARING-BALL,626MC3

92045-1304

1

$9.41

In stock

92045D

BEARING-BALL,TMB002

92045-1360

1

$13.55

In stock

92045E

1

$24.00

In stock

92049

SEAL-OIL,SD20407GS

92049-1188

1
Out of stock

92049A

SEAL-OIL,TC25375

92049-1292

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,DRAIN

92066-1437

1

$5.15

In stock

92071

GROMMET,BREATHER

92071-042

1

$3.39

In stock

92190

TUBE,6X9X330

92190-1116

1
Out of stock

92210

NUT,8MM

92210-0076

1
Out of stock

120

BOLT-SOCKET,8X45

120CA0845

1

$4.56

In stock

132

1

$1.12

In stock

132A

1

$1.73

In stock

410

1

$3.68

In stock
