2025 Kawasaki KX112 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

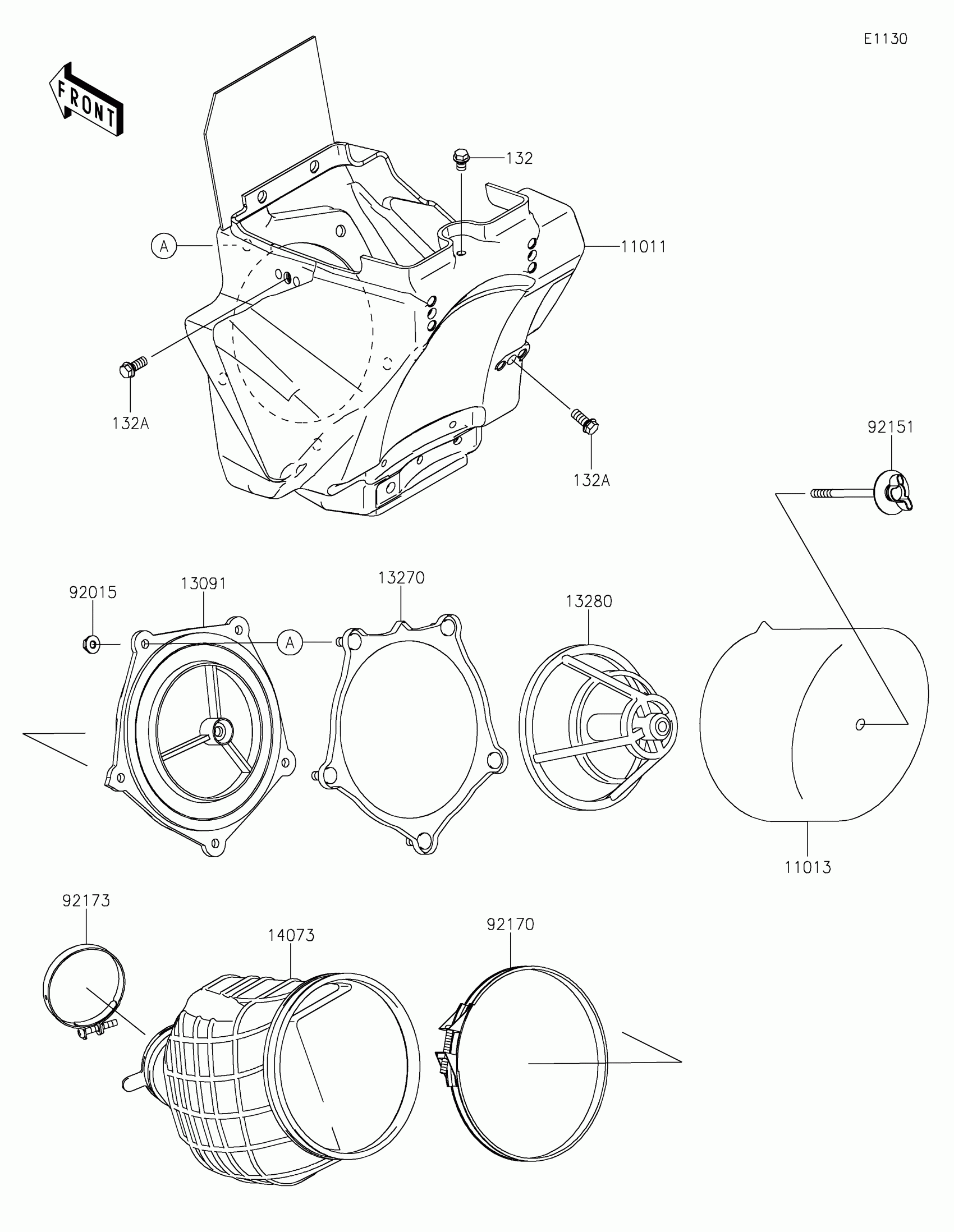

2025 Kawasaki KX112 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-1612

1

$134.84

In stock

11013

ELEMENT-AIR FILTER

11013-0736

1

$26.86

In stock

13091

HOLDER

13091-1697

1

$32.80

In stock

13270

PLATE,AIR FILTER

13270-1905

1
Out of stock

13280

HOLDER,ELEMENT

13280-0768

1

$30.70

In stock

14073

DUCT

14073-1785

1

$34.54

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92151

BOLT,AIR FILTER

92151-1256

1

$7.30

In stock

92170

CLAMP,126MM

92170-1194

1

$20.66

In stock

92173

CLAMP,55MM

92173-2257

1

$8.37

In stock

132

1

$2.05

In stock

132A

1

$1.31

In stock
