2025 Kawasaki KX112 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

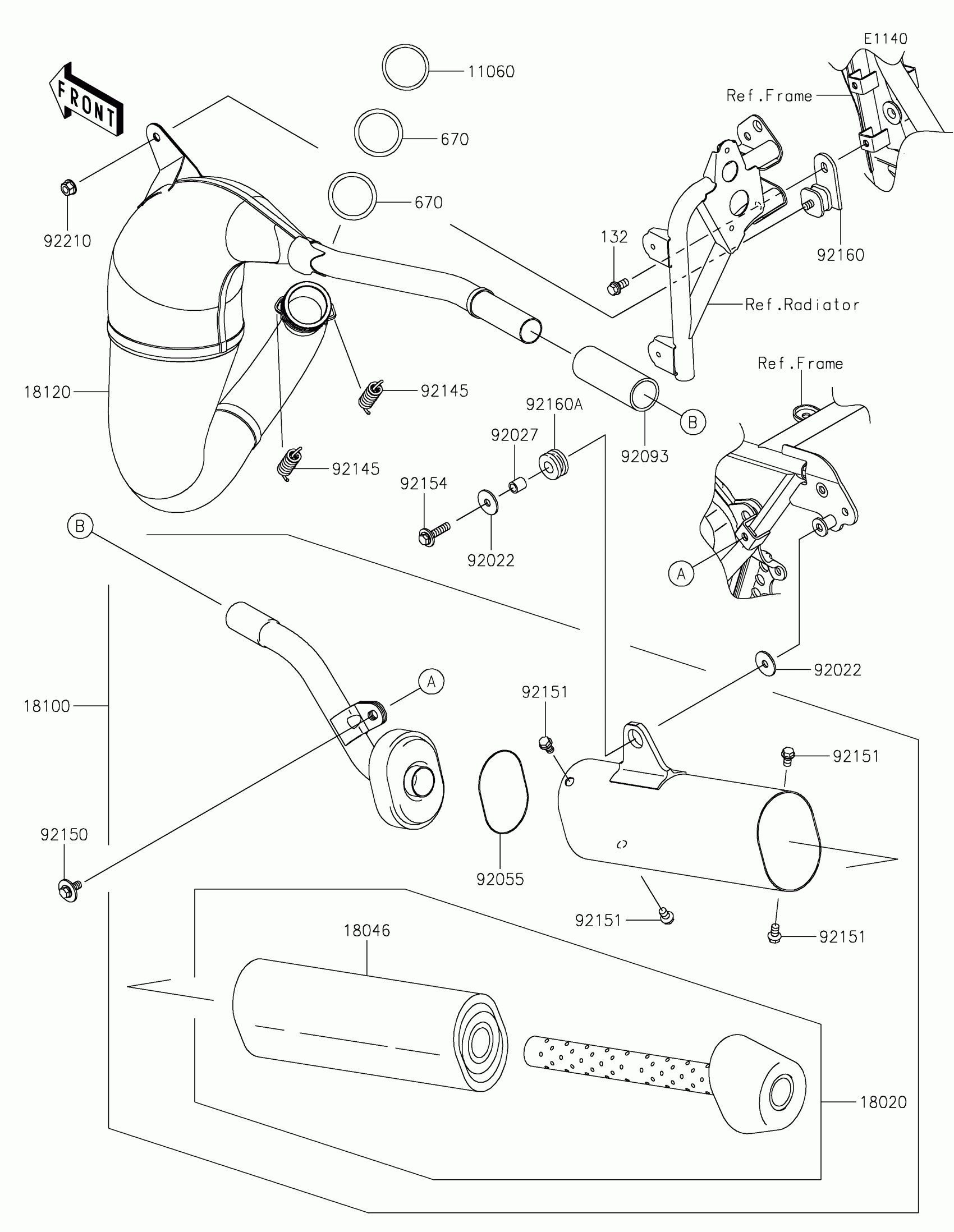

2025 Kawasaki KX112 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$5.73

In stock

18020

BAFFLE

18020-1272

1

$131.99

In stock

18046

WOOL

18046-1559

1

$59.04

In stock

18100

BODY-ASSY-MUFFLER

18100-0016

1

$209.21

In stock

18120

CHAMBER-EXHAUST

18120-0017

1

$314.01

In stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92027

COLLAR 6.8X10X10.5

92027-120

1

$3.97

In stock

92055

RING-O,BAFFLE PIPE

92055-1461

1

$7.25

In stock

92093

SEAL,MUFFLER JOINT

92093-1200

1

$39.34

In stock

92145

1

$10.62

In stock

92150

1

$3.81

In stock

92151

BOLT,FLANGED,6X10

92151-1822

1

$1.51

In stock

92154

BOLT,FLANGED,6X25

92154-0520

1

$2.68

In stock

92160

DAMPER,MUFFLER,FR

92160-1176

1

$26.14

In stock

92160A

DAMPER

92160-1913

1

$2.19

In stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

132

1

$1.12

In stock

670

O RING

670E3034

1

$6.34

In stock
