2025 Kawasaki KX112 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

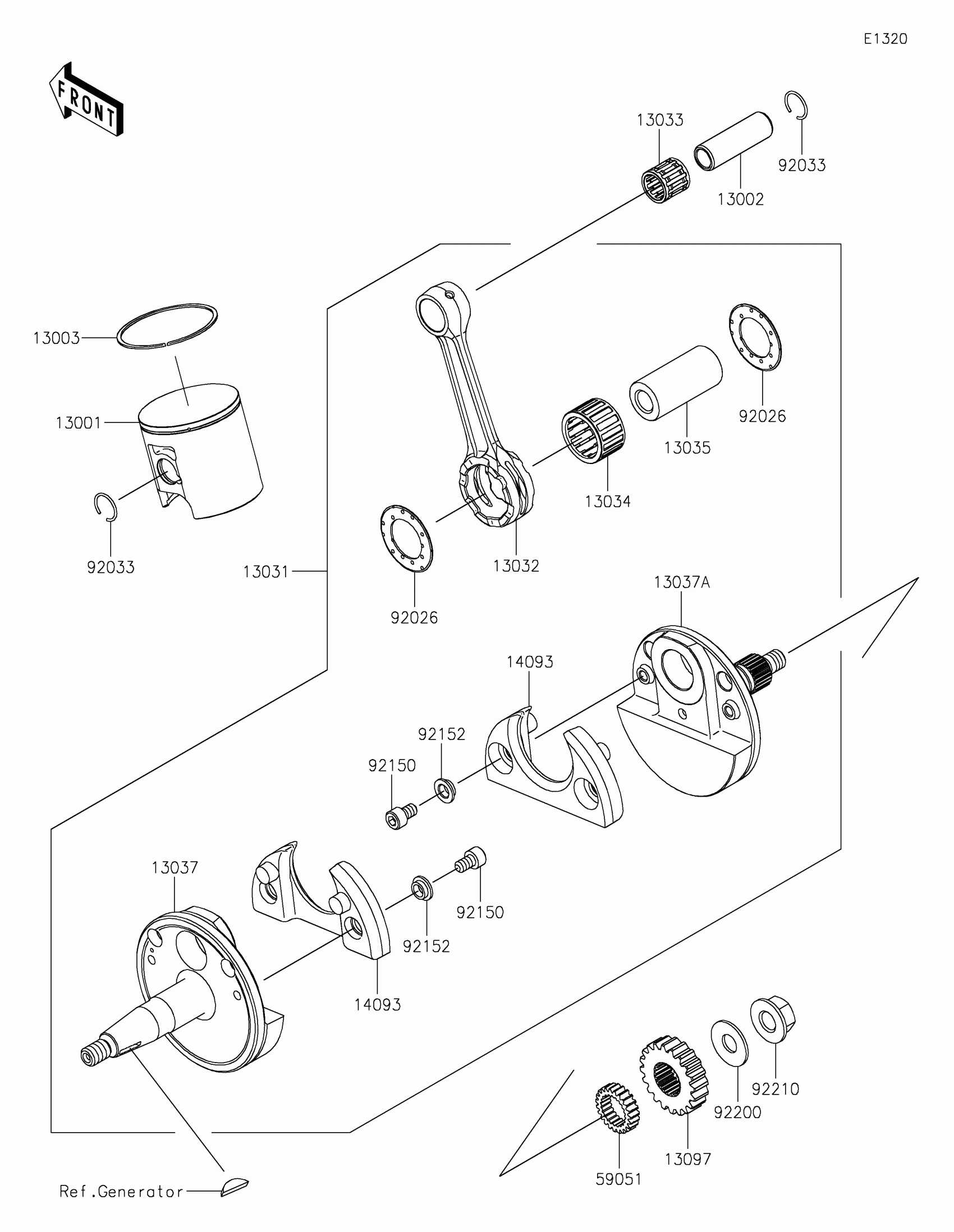

2025 Kawasaki KX112 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-0833

1

$185.42

In stock

13002

PIN-PISTON

13002-0730

1

$30.57

In stock

13003

RING-PISTON TOP

13003-0762

1

$23.53

In stock

13031

CRANKSHAFT-COMP

13031-0998

1

$396.42

In stock

13032

ROD-CONNECTING

13032-0811

1

$46.59

In stock

13033

BEARING-SMALL END

13033-0003

1

$19.85

In stock

13034

BEARING-BIG END,B4

13034-1099

1

$61.09

In stock

13035

PIN-CRANK

13035-1054

1
Out of stock

13037

CRANKSHAFT,LH

13037-1723

1

$195.45

In stock

13037A

CRANKSHAFT,RH

13037-1725

1

$195.45

In stock

13097

1

$80.08

In stock

14093

COVER

14093-1160

1

$13.78

In stock

59051

GEAR-SPUR,PUMP,23T

59051-0861

1

$30.67

In stock

92026

SPACER,22.2X37X1.0

92026-1136

1

$8.37

In stock

92033

RING-SNAP

92033-0005

1

$2.27

In stock

92150

BOLT,SOCKET,6X10

92150-1650

1

$3.85

In stock

92152

COLLAR

92152-2871

1

$5.05

In stock

92200

WASHER,10.2X25X1.5

92200-0213

1
Out of stock

92210

NUT,FLANGED,10MM

92210-1919

1

$1.69

In stock
