2023 Kawasaki KX™450X Water Pump Diagram

← All diagrams

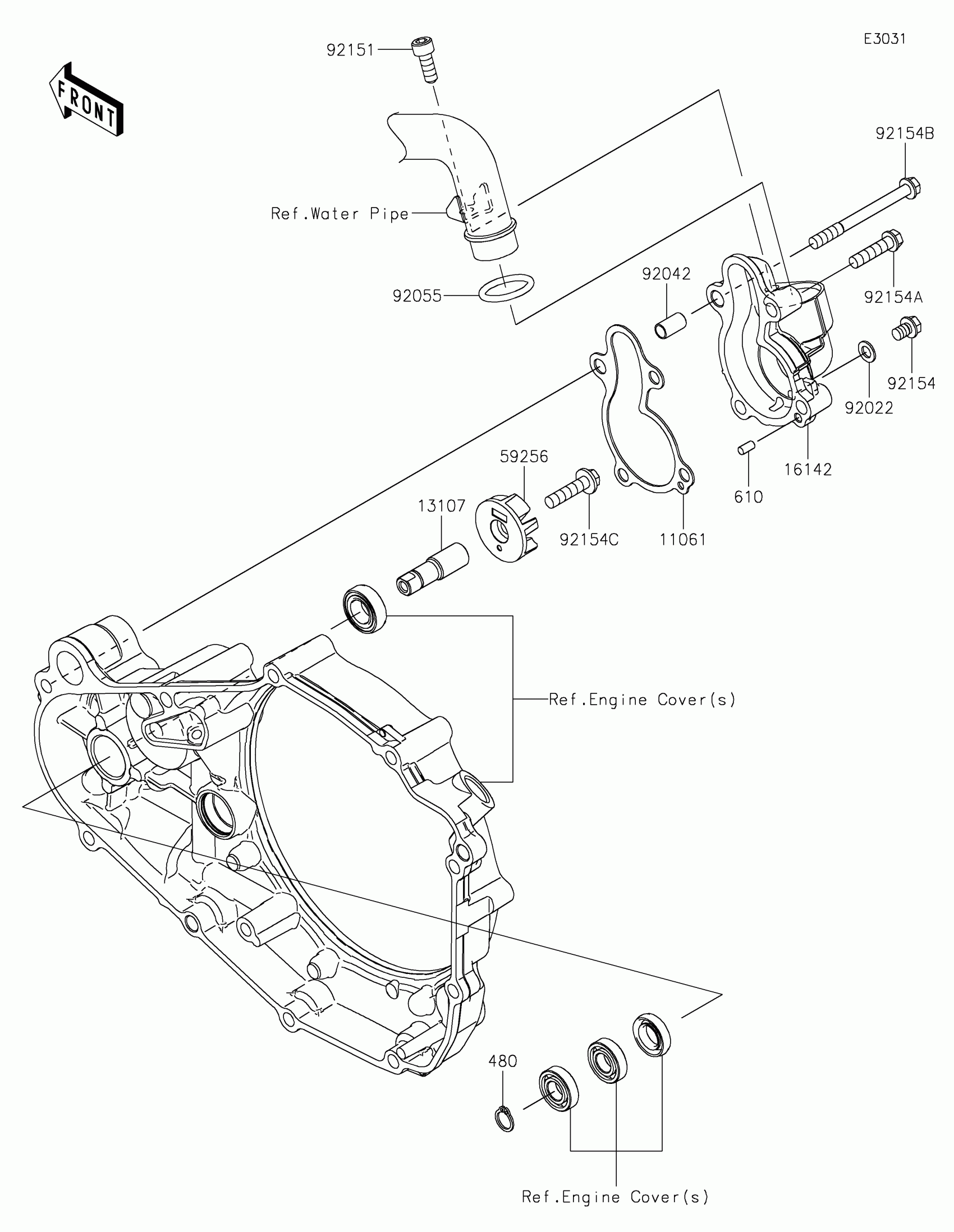

Find the part on the Water Pump diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450X Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-1275

1

$4.46

In stock

13107

SHAFT

13107-0872

1

$56.72

In stock

16142

COVER-PUMP

16142-0752

1

$88.46

In stock

59256

IMPELLER

59256-0003

1

$42.07

In stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92154

BOLT,FLANGED,6X25

92154-0531

1
Out of stock

92154A

BOLT,FLANGED,6X8

92154-2962

1

$0.69

In stock

92154B

BOLT,FLANGED,6X25

92154-2967

1

$0.88

In stock

92154C

BOLT,FLANGED,6X65

92154-2980

1

$1.27

In stock

480

1

$0.66

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
