2023 Kawasaki KX™450X Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

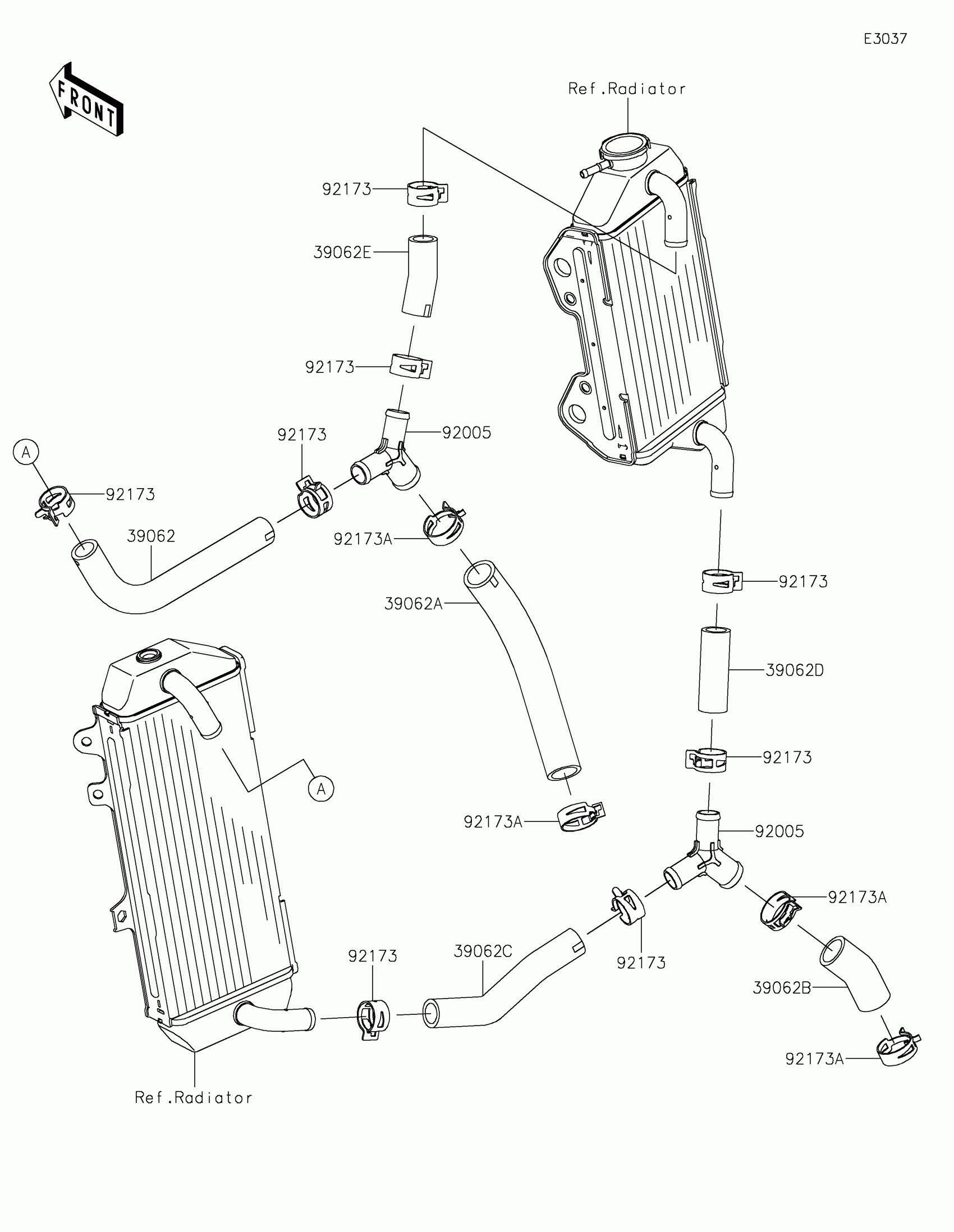

2023 Kawasaki KX™450X Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39062

1

$16.63

In stock

39062A

1

$17.68

In stock

39062B

1

$8.90

In stock

39062C

1

$15.61

In stock

39062D

1

$5.93

In stock

39062E

1

$7.63

In stock

92005

FITTING,3WAY

92005-0902

1

$16.31

In stock

92173

CLAMP

92173-1417

1

$2.25

In stock

92173A

CLAMP

92173-1464

1

$2.25

In stock
