2023 Kawasaki KX™450X Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

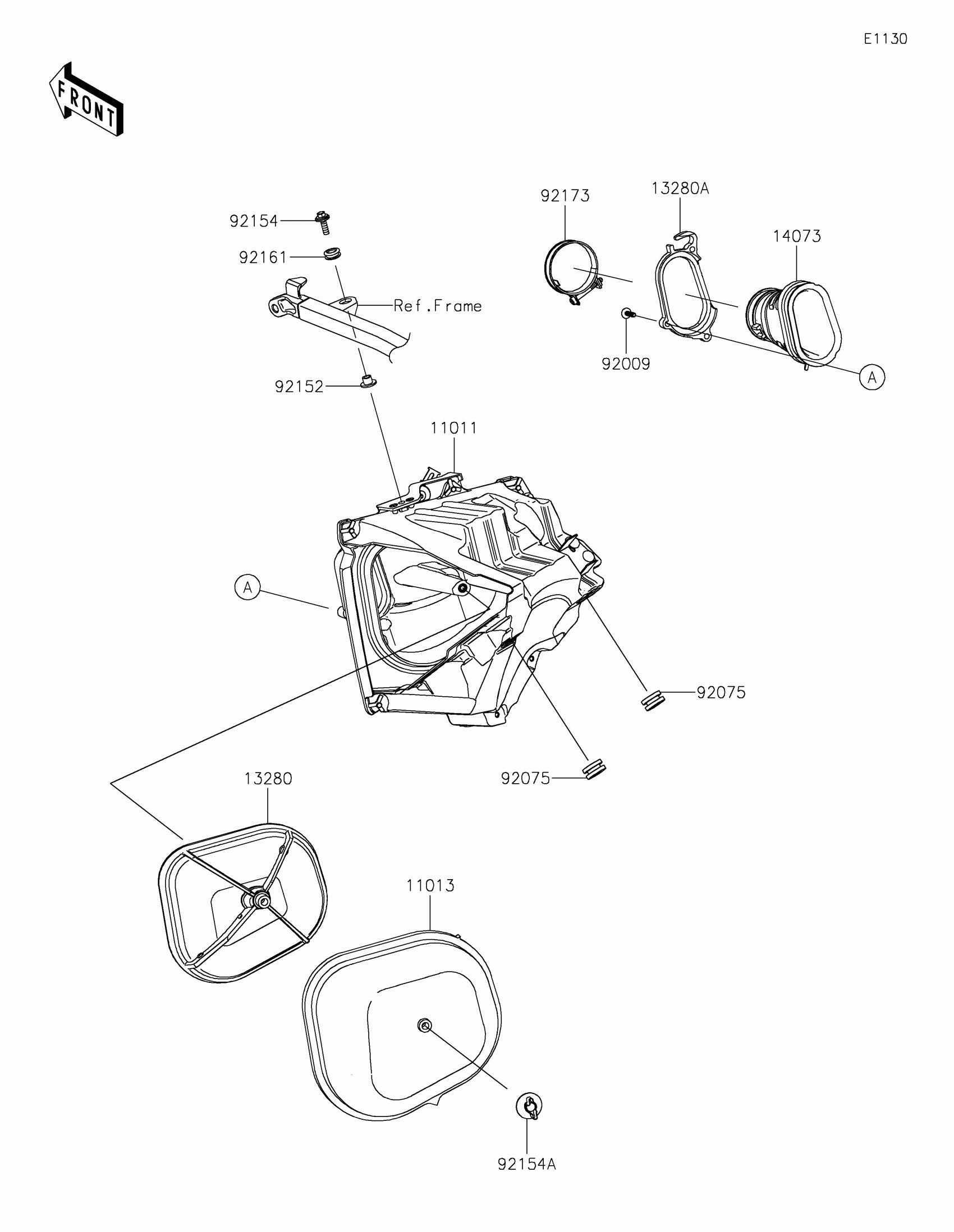

2023 Kawasaki KX™450X Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER,L.GREEN

11011-0927-290

1

$182.26

In stock

11013

ELEMENT-AIR FILTER

11013-0811

1

$48.80

In stock

13280

HOLDER,ELEMENT BASE

13280-0913

1

$48.47

In stock

13280A

HOLDER,DUCT

13280-0925

1

$9.12

In stock

14073

DUCT

14073-0888

1

$55.39

In stock

92009

SCREW,TAPPING,5X20

92009-1993

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92152

COLLAR

92152-1449

1

$7.42

In stock

92154

BOLT,FLANGED,6X20

92154-1268

1

$1.10

In stock

92154A

BOLT,WING,6X35

92154-2943

1

$8.75

In stock

92161

DAMPER

92161-0266

1

$1.53

In stock

92173

CLAMP,57.5MM

92173-1608

1

$12.48

In stock
