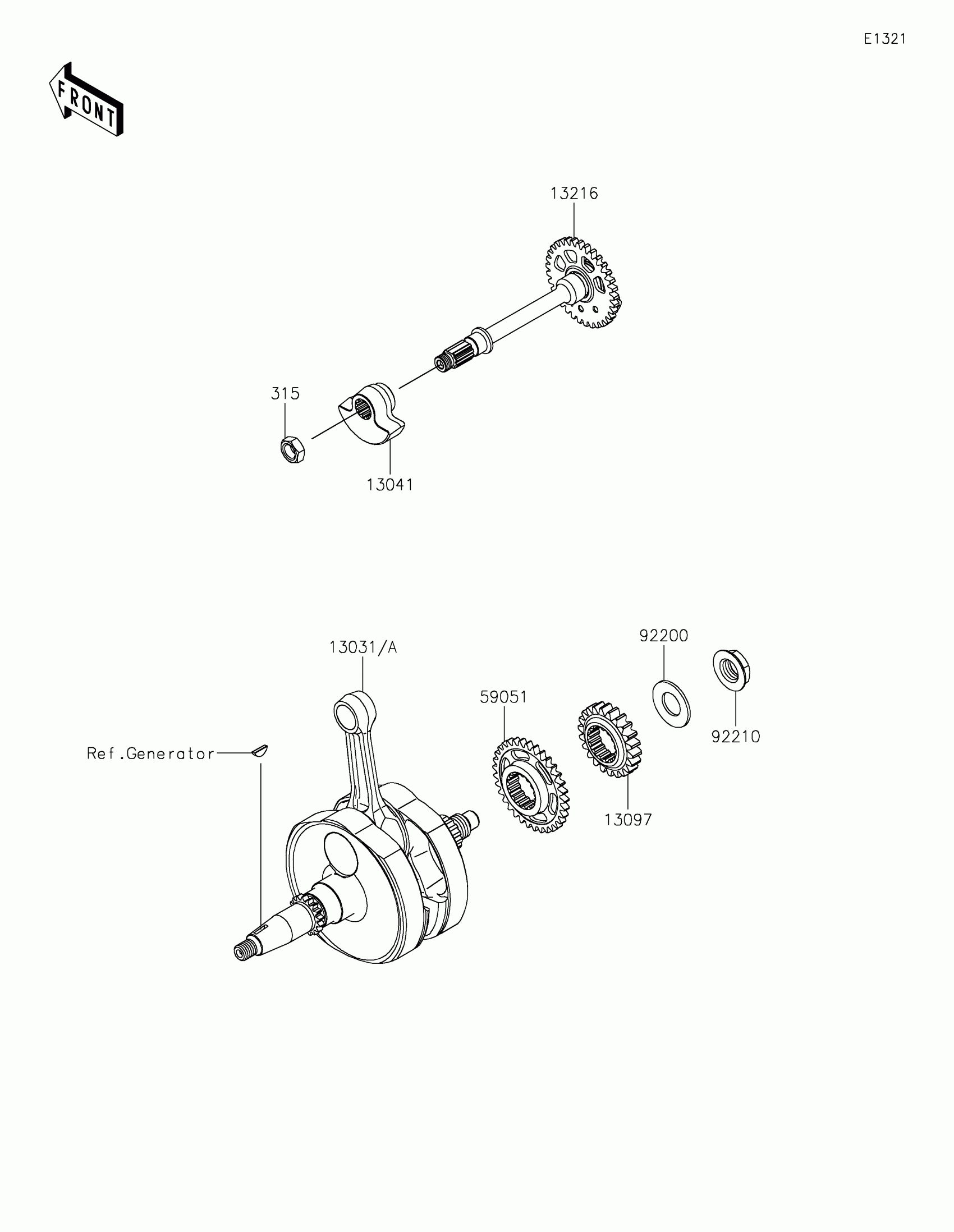

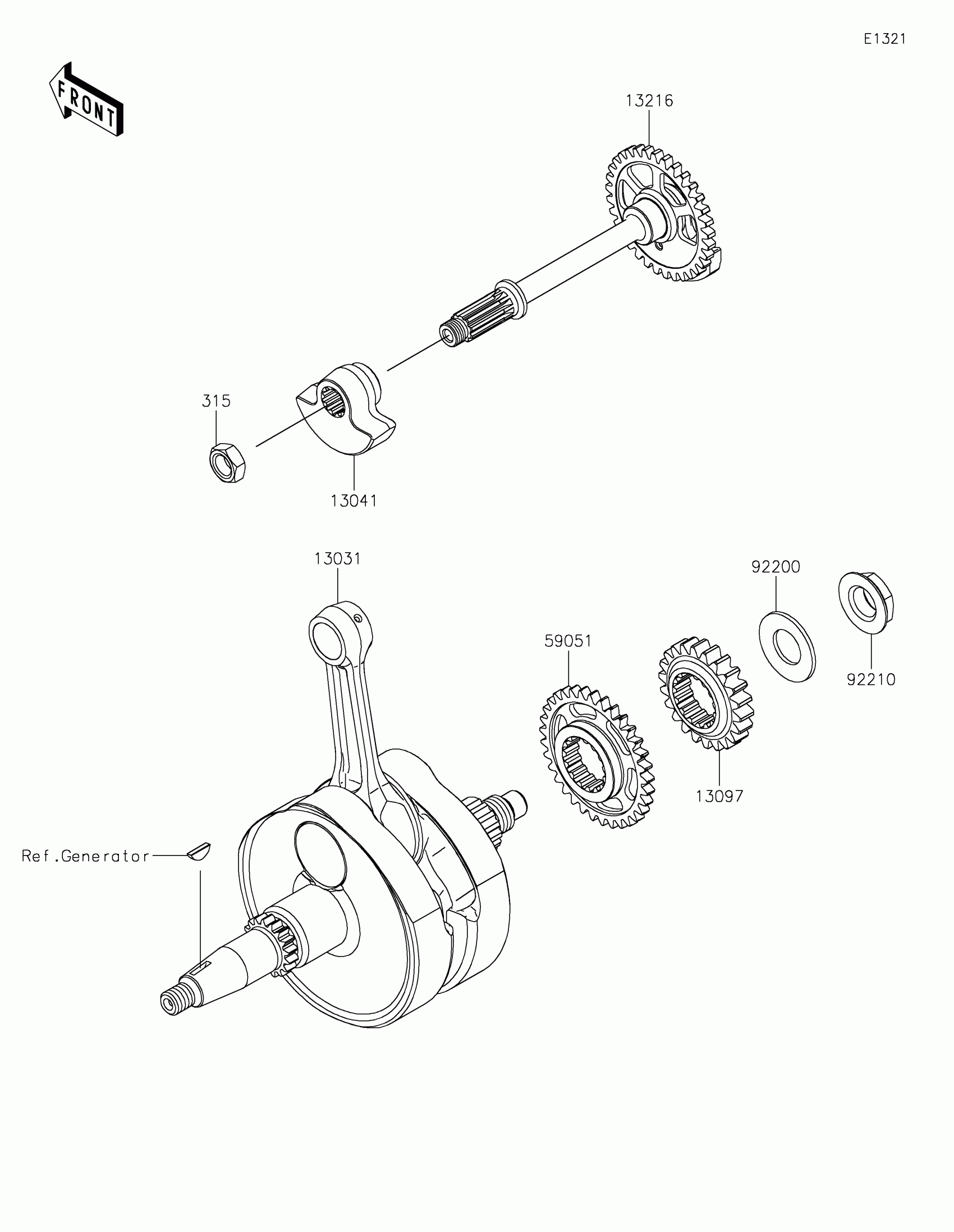

Find the part on the Crankshaft diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450X Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031A

CRANKSHAFT-COMP

13031-1536

1

$540.66

In stock

13041

BALANCER,LH

13041-0564

1

$84.31

In stock

13097

1

$67.96

In stock

13216

GEAR-COMP,BALANCER

13216-0898

1

$357.20

In stock

59051

1

$65.70

In stock

92200

WASHER

92200-1505

1
Out of stock

92210

NUT,18MM

92210-1844

1

$19.47

In stock

315

NUT-HEX-FINE,12MM

315BA1200

1

$1.08

In stock
