2023 Kawasaki KX™450X Engine Shrouds Diagram

← All diagrams

Find the part on the Engine Shrouds diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

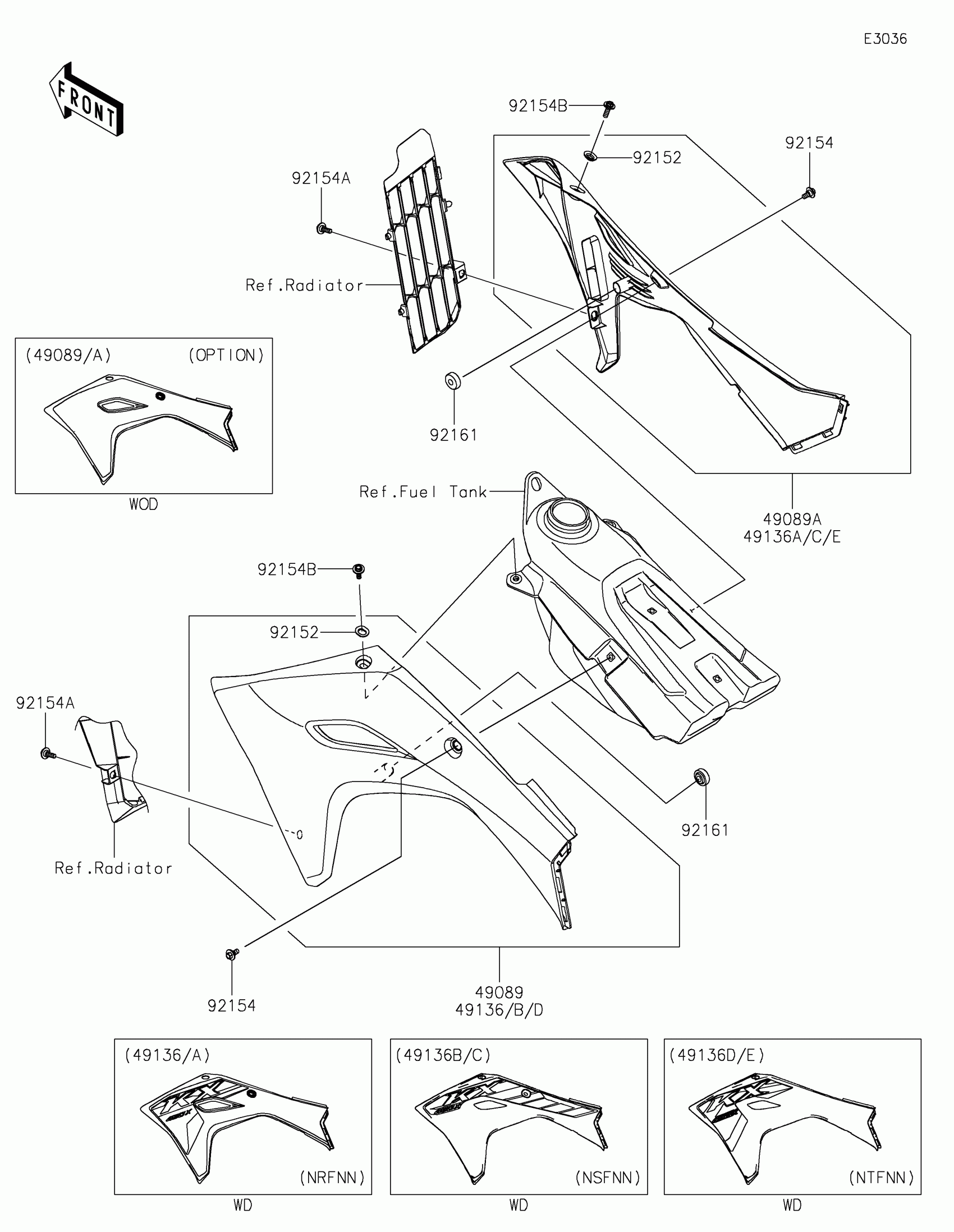

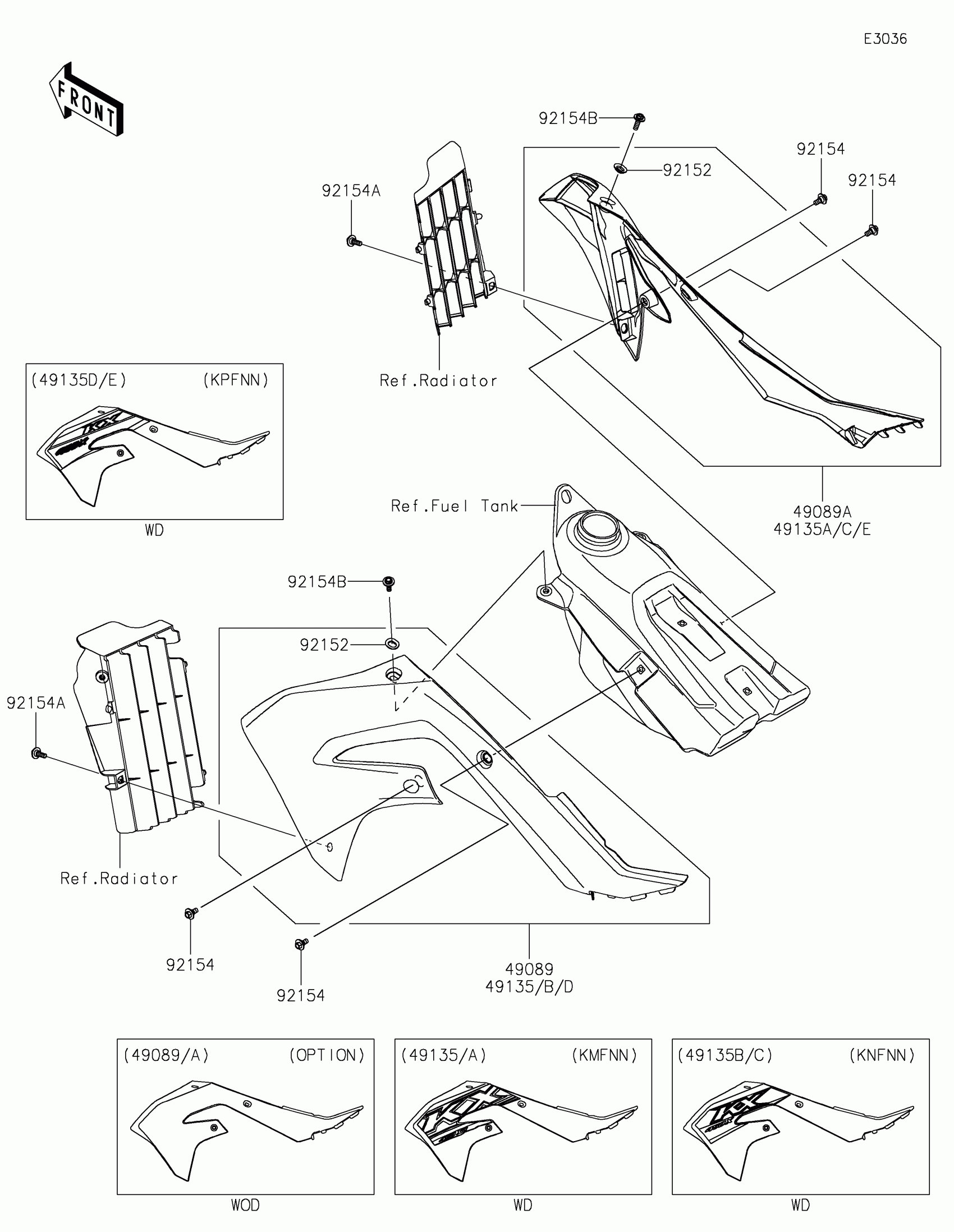

2023 Kawasaki KX™450X Engine Shrouds Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0946-290

1
Out of stock

49089A

SHROUD-ENGINE,RH,L.GREEN

49089-0947-290

1
Out of stock

49135D

1

$158.61

In stock

49135E

1

$158.61

In stock

92152

COLLAR

92152-0052

1

$4.09

In stock

92154

BOLT,FLANGED,6X9

92154-0546

1

$2.97

In stock

92154A

BOLT,FLANGED,6X28

92154-1739

1

$2.25

In stock

92154B

BOLT,FLANGED,6X20

92154-2972

1

$1.10

In stock
