2008 Kawasaki KX™450F Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2008 Kawasaki KX™450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

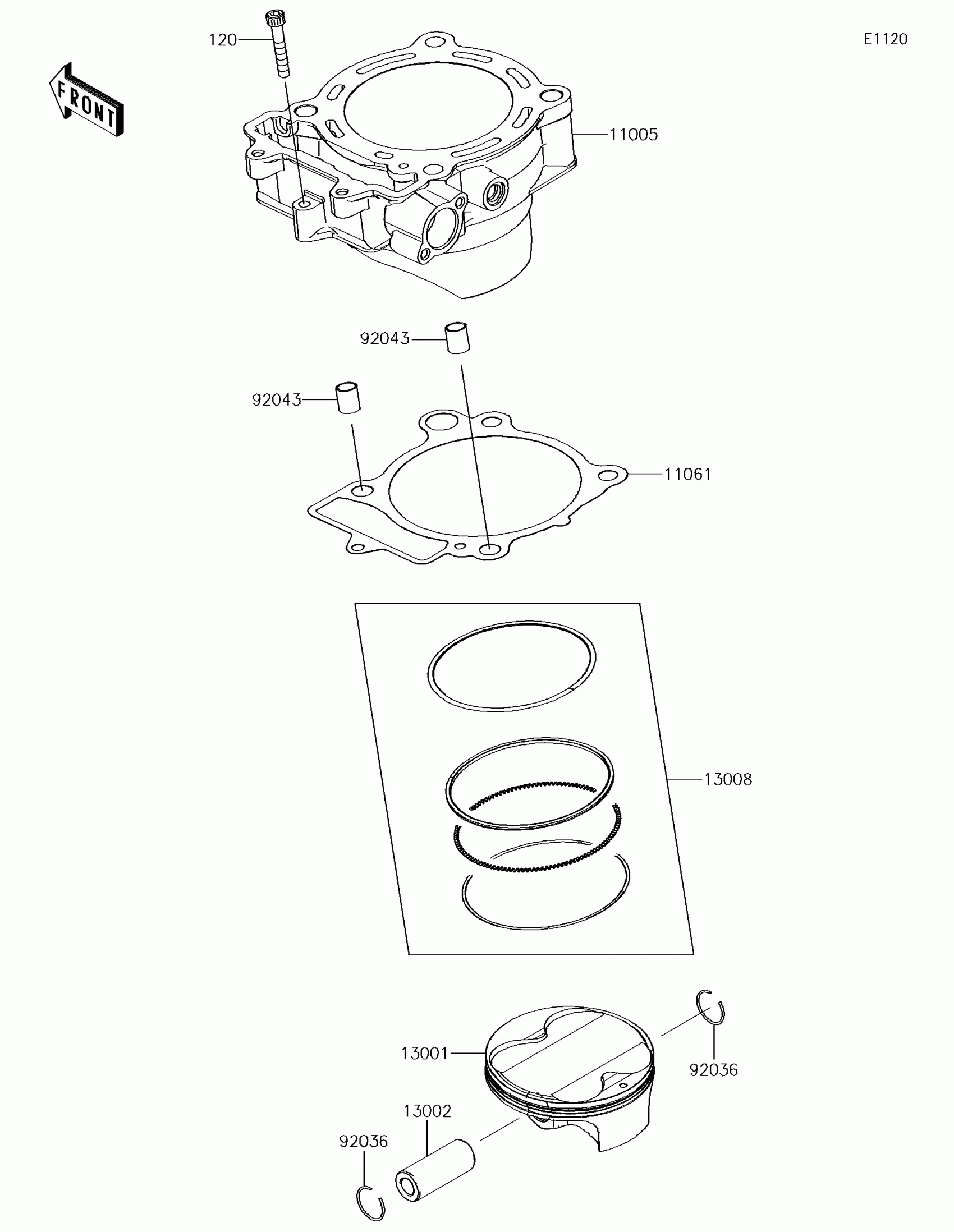

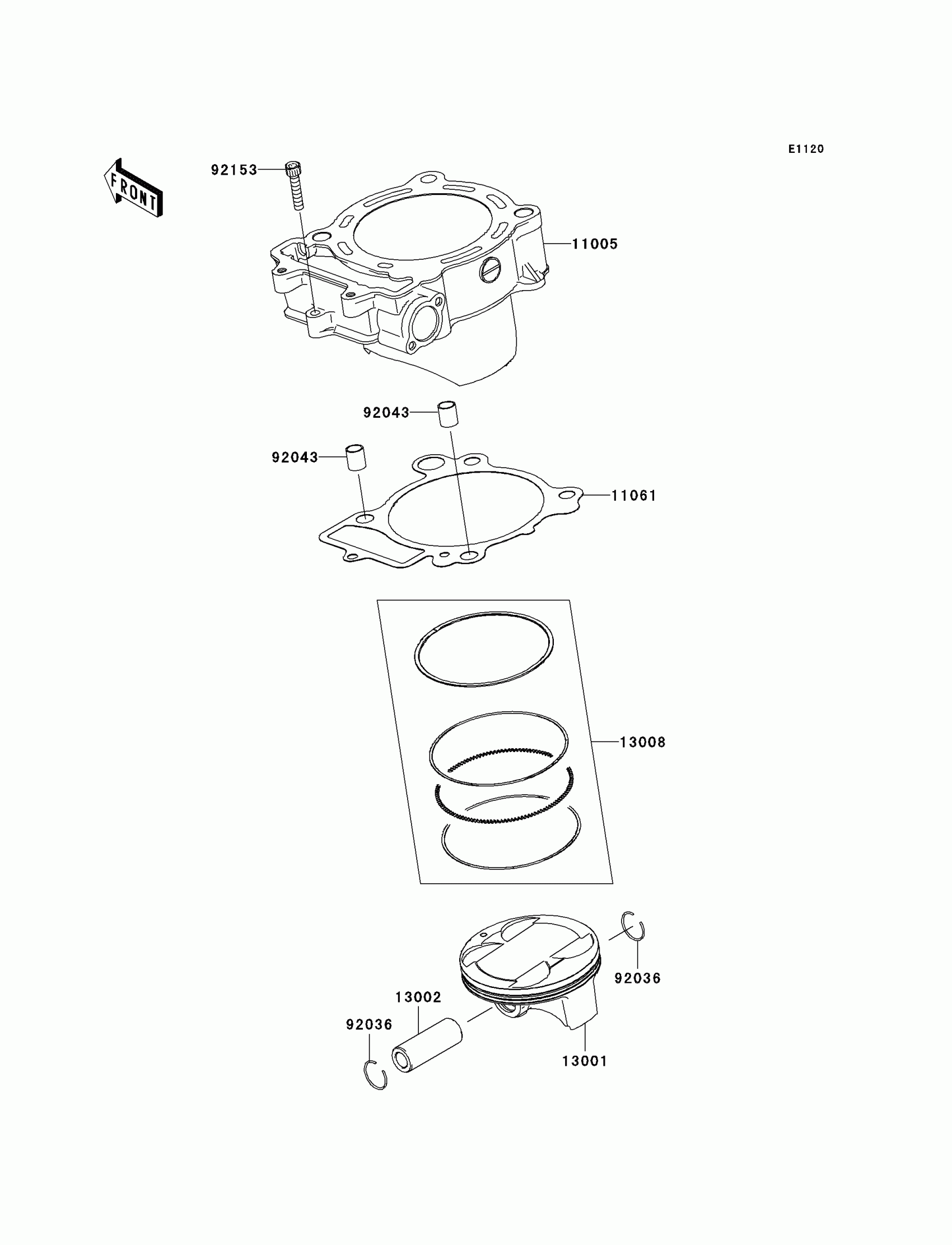

2008 Kawasaki KX™450F Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0088

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-0160

1
Out of stock

13001

PISTON-ENGINE

13001-0073

1
Out of stock

13002

PIN-PISTON

13002-0016

1
Out of stock

13008

RING-SET-PISTON

13008-0018

1
Out of stock

92036

RING-SNAP,PISTON PIN

92036-008

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92153

BOLT,6X30

92153-0844

1
Out of stock
