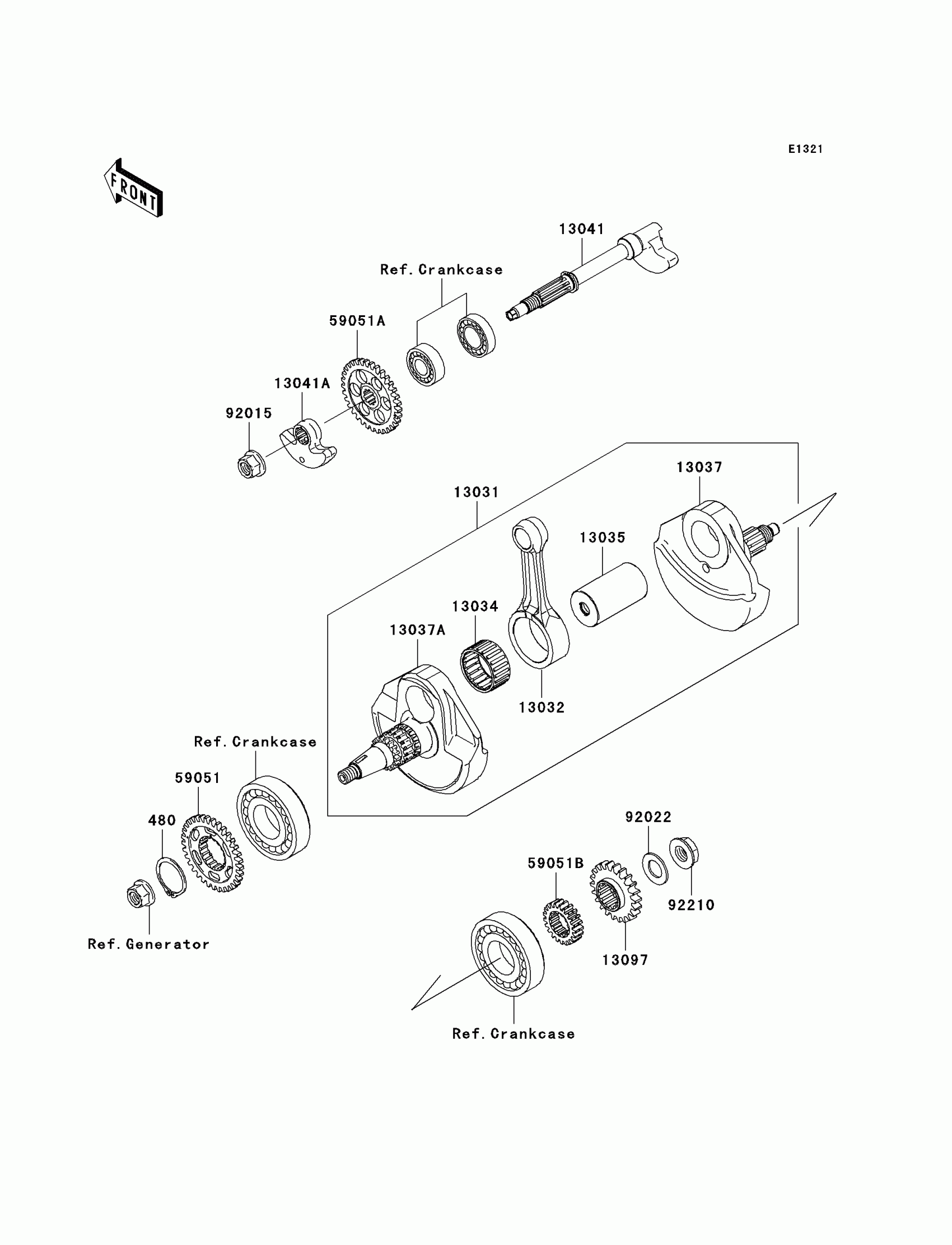

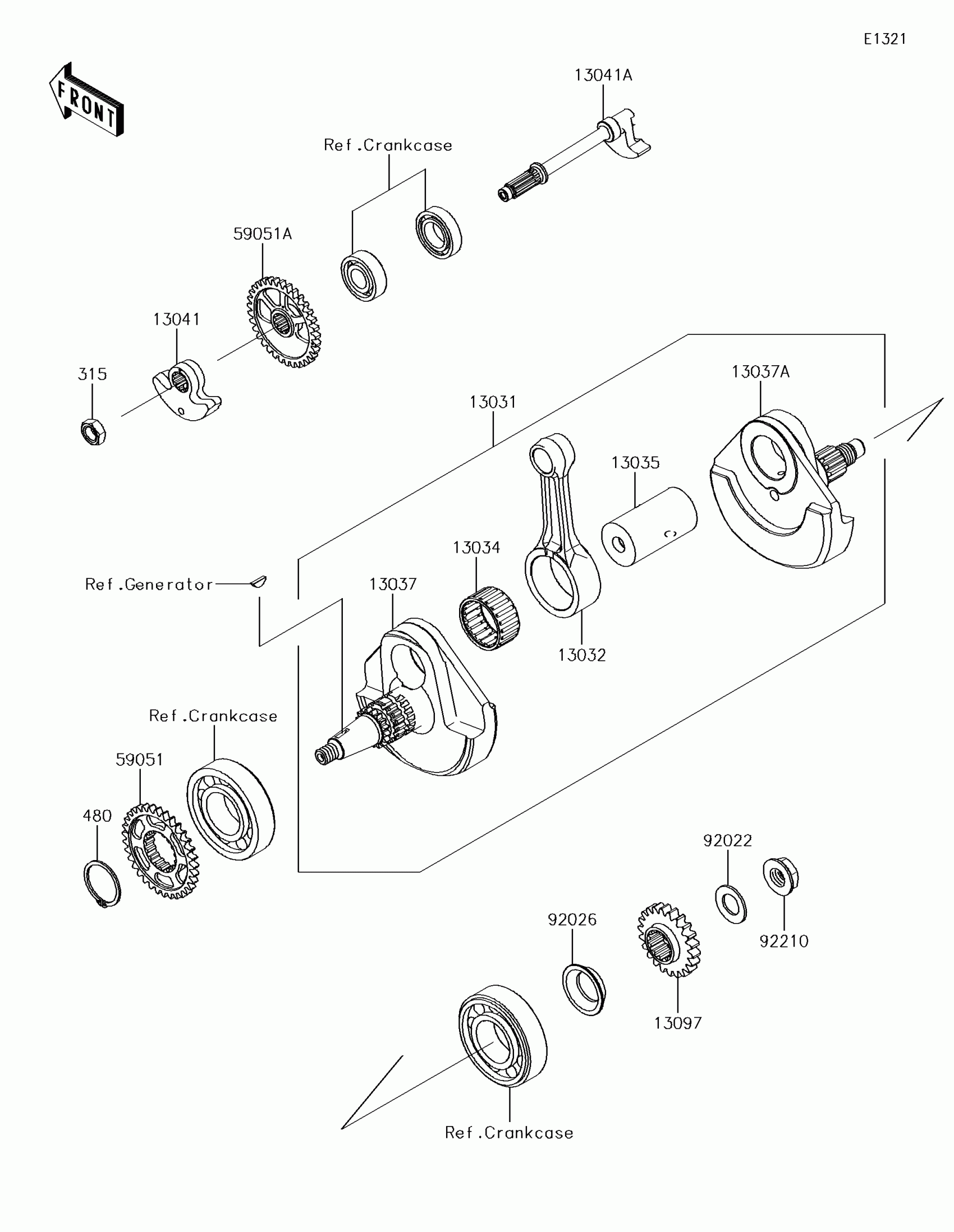

Kawasaki KX™450F Crankshaft Diagram

Description

Price

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

13031

CRANKSHAFT-COMP

13031-0096

$619.03

13032

ROD-CONNECTING,RED

13032-0064

$119.99

13034

BEARING-BIG END,B4

13034-0006

$74.89

13035

PIN-CRANK

13035-0013

$52.59

13037

CRANKSHAFT,RH

13037-0111

$223.44

13037A

CRANKSHAFT,LH

13037-0131

$250.65

13041

BALANCER,SHAFT

13041-0022

$283.64

13041A

BALANCER,WEIGHT

13041-0023

$52.22

13097

GEAR-PRIMARY SPUR,22T

13097-0013

$67.96

59051

GEAR-SPUR,BALANCER DRIVE,33T

59051-0070

$60.78

59051A

GEAR-SPUR,BALANCER DRIVEN,33T

59051-0071

$60.78

59051B

GEAR-SPUR,OIL PUMP DRIVE,21T

59051-0075

$29.37

92015

NUT,FLANGED,12MM

92015-1156

Unavailable

92022

WASHER,16.3X29X1.75

92022-1356

$5.61

92210

NUT,LEFT HANDED,16MM

92210-0350

$7.84
